SFW36-16BV - Scag 36" Walk-Behind Mower, 16hp Vanguard (SN: E5600001 - E5699999) Handle Assembly Parts Diagram

36" Walk-Behind Mower, 16hp Vanguard

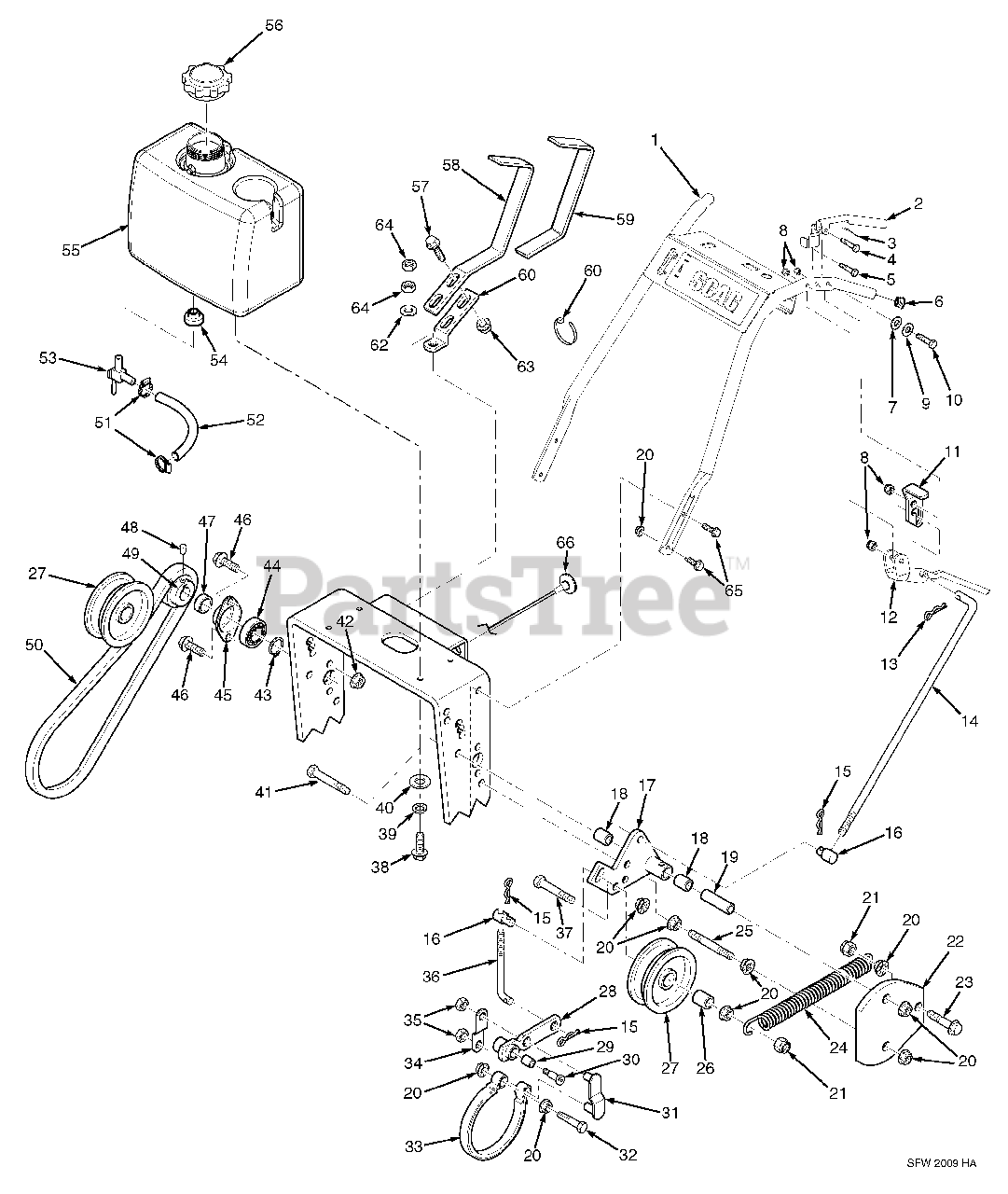

Handle Assembly Parts Diagram

  • Title

1

Scag 462187

Handle Weldment w/Decals

$258.99

$

Usually ships in 2-12 days

0

2

Scag 452039

Operator Presence Handle, LH

$46.99

$

In Stock, only 1 left!

0

Scag 452040

Operator Presence Handle, RH

$46.99

$

Usually ships in 2-12 days

0

3

Scag 483941

Spring, Operator Presence

$15.99

$

Usually ships in 2-12 days

0

4

Scag 04001-13

Bolt, Hex Head 5/16-18 x 2-3/4"

$0.99

$

In Stock, only 1 left!

0

5

Scag 04001-53

Bolt, Hex Head 5/16-18 x 2-1/2"

$0.99

$

In Stock, Qty 13

0

6

Scag 483161

Plug, Handle Bar

$2.49

$

Usually ships in 2-12 days

0

7

Scag 04032-01

Washer, Curved Spring

$0.99

$

In Stock, only 3 left!

0

8

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

9

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

10

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2"

$0.99

$

In Stock, Qty 6

0

11

Scag 461241

Neutral Latch Assembly, LH

$14.99

$

Usually ships in 2-12 days

0

Scag 461242

Neutral Latch Assembly, RH

$15.99

$

Usually ships in 2-12 days

0

12

Scag 483870

Lever, Steering Brake

$41.99

$

Usually ships in 2-12 days

0

13

Scag 04062-02

Hair Pin Cotter

$0.99

$

In Stock, Qty 20+

0

14

Scag 44140

Rod, Steering Control

$20.99

$

Usually ships in 2-12 days

0

15

Scag 04062-01

Hair Pin Cotter

$0.99

$

In Stock, Qty 20+

0

16

Scag 43032

Swivel Joint

$6.49

$

In Stock, Qty 8

0

17

Scag 462173

Idler Bracket Assembly, RH

$146.99

$

Usually ships in 2-12 days

0

Scag 462172

Idler Bracket Assembly, LH

$146.99

$

Usually ships in 2-12 days

0

18

Scag 483453-18

Bearing

$7.99

$

Usually ships in 2-12 days

0

19

Scag 43768

Sleeve

$14.99

$

Usually ships in 2-12 days

0

20

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

21

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

22

Scag 421360

Belt Guard

$25.99

$

Usually ships in 2-12 days

0

23

Scag 04017-28

Bolt, Serrated Flange 3/8-16 x 1-1/4"

$1.49

$

In Stock, Qty 8

0

24

Scag 48755

Spring

$10.99

$

In Stock, only 2 left!

0

25

Scag 04004-17

Stud, 3/8-16 x 5"

$2.99

$

In Stock, Qty 13

0

26

Scag 43282

Spacer

$7.99

$

In Stock, only 1 left!

0

27

Scag 483820

Pulley, Idler 5"

$48.99

$

Usually ships in 2-12 days

0

28

Scag 462171

Lever Weldment, Brake w/Bearing

$55.99

$

Usually ships in 2-12 days

0

29

Scag 483453-19

Bearing

$7.99

$

Usually ships in 2-12 days

0

30

Scag 04009-09

Bolt, Shoulder 1/2 x 1"

$4.49

$

Usually ships in 2-12 days

0

31

Scag 45093

Link Weldment, Brake

$22.99

$

Usually ships in 2-12 days

0

32

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 9

0

33

Scag 48210

Brake Band Assembly

$34.99

$

In Stock, only 4 left!

0

34

Scag 42254

Link, Brake

$14.99

$

Usually ships in 2-12 days

0

35

Scag 04024-01

Nut, Push-On

$1.49

$

Usually ships in 2-12 days

0

36

Scag 44177

Rod, Brake

$11.99

$

Usually ships in 2-12 days

0

37

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 15

0

38

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

39

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

40

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

41

Scag 04001-23

Bolt, Hex Head 3/8-16 x 4-1/2"

$2.49

$

In Stock, Qty 7

0

42

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

43

Scag 04050-09

Retaining Ring, 5/8" Ext.

$0.99

$

In Stock, Qty 20+

0

44

Scag 48224

Bearing, Jackshaft

$13.99

$

In Stock, Qty 20+

0

45

Scag 48223

Flange, Jackshaft Bearing

$5.99

$

In Stock, only 2 left!

0

46

Scag 04017-05

Bolt, Serrated Flange 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

47

Scag 43801

Spacer, Jackshaft

$22.99

$

In Stock, only 1 left!

0

48

Scag 04012-04

Set Screw, Hex Socket 5/16-18

$0.99

$

In Stock, Qty 14

0

49

Scag 483821

Pulley, Jackshaft 3.25 OD x .625 Bore

$43.99

$

Usually ships in 2-12 days

0

50

Scag 483814

Belt, Wheel Drive

$50.99

$

Usually ships in 2-12 days

0

51

Scag 48059-01

Clamp, 1/4" ID Fuel Hose

$0.99

$

In Stock, Qty 7

0

52

Scag 483617

Fuel Hose, 1/4" ID

Note: (order by inch)

$0.99

$

In Stock, Qty 20+

0

53

Scag 483747

Valve, Fuel Shutoff w/Screen

$30.99

$

In Stock, only 4 left!

0

54

Scag 482571

Bushing, .56 Dia. Viton

$12.99

$

In Stock, Qty 20+

0

55

Scag 461729

Fuel Tank Assembly
(Superseded to 462289)

Note: (incl. #53 & #54)

$315.99

$

Usually ships in 2-12 days

0

56

Scag 483792

Cap, Fuel Tank

$27.99

$

In Stock, only 4 left!

0

57

Scag 04017-17

Bolt, Serrated Flange 5/16-18 x 1"

$0.99

$

Usually ships in 2-12 days

0

58

Scag 461163

Shift Lever Extension w/Grip

$53.99

$

In Stock, only 1 left!

0

59

Scag 481839

Grip, Shift Handle

$8.99

$

Usually ships in 2-12 days

0

60

Scag 48028-05

Cable Tie

$

$

Not available

61

Scag 422279

Shift Lever

$11.99

$

In Stock, only 1 left!

0

62

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

63

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

64

Scag 04020-14

Nut, 3/8-24 UNF

$0.99

$

In Stock, only 3 left!

0

65

Scag 04017-27

Bolt, Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

66

Scag 483646

Choke Control

$26.99

$

In Stock, only 1 left!

0
