SFH 13320KW (5091002) - Snapper 32" Walk-Behind Mower, 13hp Wheel & Tire Group Parts Diagram

32" Walk-Behind Mower, 13hp

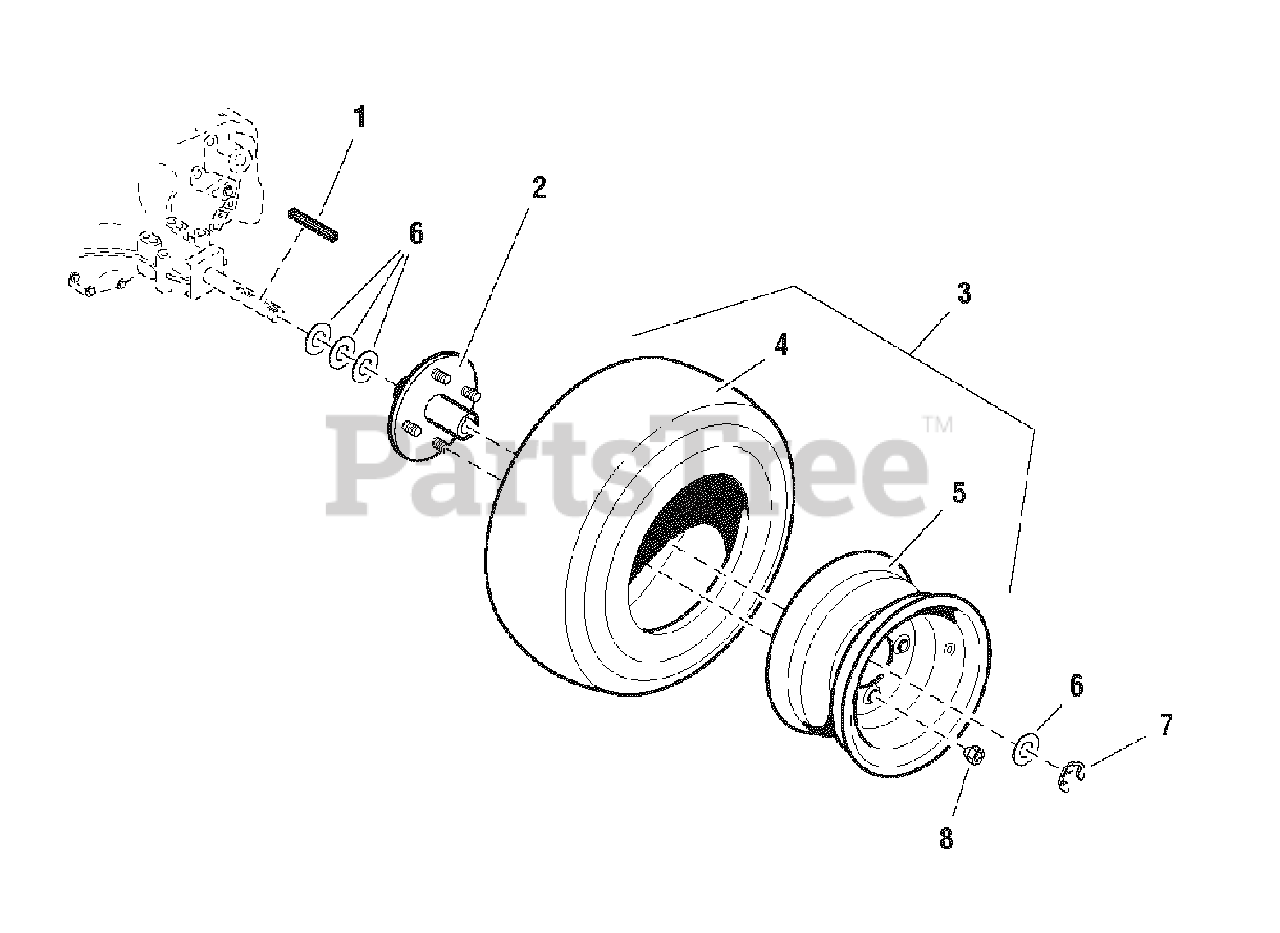

Wheel & Tire Group Parts Diagram

  • Title
1

Snapper 5048409

KEY, 3/16
(Superseded to 5048409SM)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper 5048417

DRIVE HUB
(Superseded to 5048417YP)

$146.99

$

Usually ships in 2-12 days

0

3

NLA - Must order 5023104X1 and 5023104X2 individually

$

$

Not available

4

Snapper 5023104X2

TIRE, 16. x 6.5 x 8
(Superseded to 5023104X2SM)

$102.99

$

Usually ships in 2-12 days

0

5

Snapper 5023104X1

WHEEL ASSEMBLY, 8 x 5.38
(Superseded to 5023104X1SM)

$43.99

$

Usually ships in 2-12 days

0

6

Snapper 5025520X3

SHIM
(Superseded to 5025520X3SM)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 5020601

LUG NUT
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0
