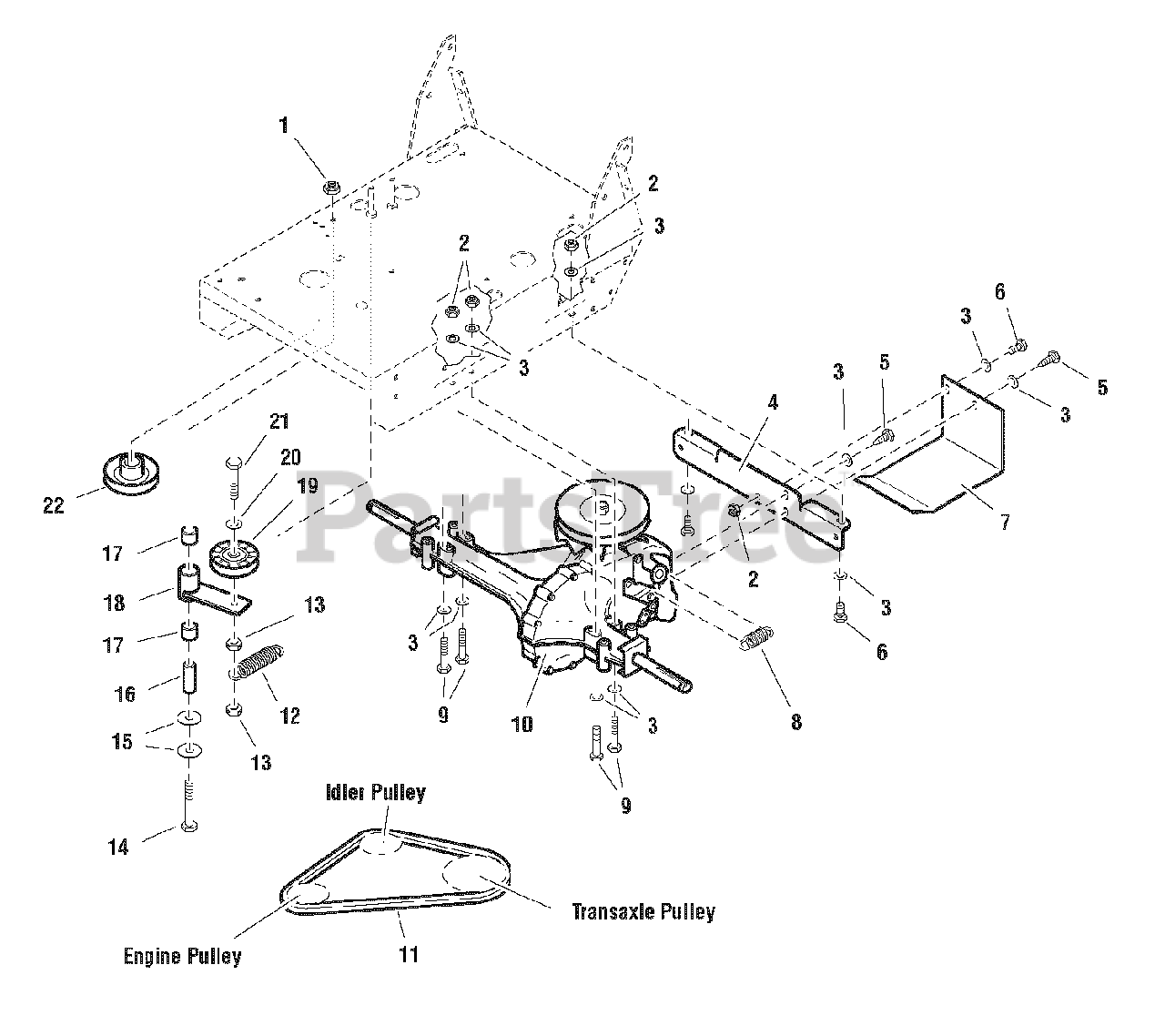

SFH 13320KW (5091002) - Snapper 32" Walk-Behind Mower, 13hp Transaxle, Mount & Drive Idler Group Parts Diagram

32" Walk-Behind Mower, 13hp

Transaxle, Mount & Drive Idler Group Parts Diagram

  • Title

1

Snapper 5025096

NUT, Hex Nylon Lock, 3/8-16
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

2

Snapper 7091298

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

Note: Was 5025057

$3.99

$

In Stock, Qty 20+

0

3

Snapper 7091098

WASHER, 5/16
(Superseded to 703302)

Note: Was 5025155

$4.49

$

In Stock, Qty 20+

0

4

Snapper 5047582D

TRANSAXLE BRACE
(Superseded to 5047582DYP)

$16.99

$

Usually ships in 2-12 days

0

5

Snapper 5025059X6

CAPSCREW, Hex Head, Self-Tapping, 5/16-18 x 3/4
(Superseded to 5025059X6FS)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

7

Snapper 5048312D

SKID PLATE
(Superseded to 5048312DYP)

$47.99

$

Usually ships in 2-12 days

0

8

Snapper 5022967

HYDRO RETURN SPRING
(Superseded to 5022967SM)

$16.99

$

Usually ships in 2-12 days

0

9

Snapper 5025011X24

CAPSCREW, Hex Head, 5/16-18 x 3
(Superseded to 5025011X24SM)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 5022905

HYDROSTATIC TRANSAXLE
(Superseded to 5022905SM)

$1253.99

$

Usually ships in 2-12 days

0

11

Snapper 5023058

BELT
(Superseded to 5023058SM)

$26.99

$

In Stock, only 1 left!

0

12

Snapper 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

In Stock, Qty 11

0

13

Snapper 5025100

NUT, Hex Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

Note: Was 5025013-24

$3.99

$

In Stock, only 1 left!

0

15

Snapper 5025165

WASHER, Fender, 3/8
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

16

Snapper 5047716

SPACER
(Superseded to 5047716SM)

$10.99

$

Usually ships in 2-12 days

0

17

Snapper 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 1 left!

0

18

Snapper 5047717D

TRANSAXLE IDLER ARM
(Superseded to 5047717DYP)

$33.99

$

Usually ships in 2-12 days

0

19

Snapper 5043627

IDLER PULLEY ASSEMBLY
(Superseded to 5043627SM)

$45.99

$

In Stock, only 1 left!

0

20

Snapper 3025156

WASHER, 3/8
(Superseded to 703590)

Note: Was 5025156

$3.99

$

In Stock, Qty 10

0

21

Snapper 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

22

Snapper 5047914

TRANSAXLE DRIVE PULLEY
(Superseded to 5047914SM)

$40.99

$

In Stock, only 1 left!

0
