SFH 13320KW (5091002) - Snapper 32" Walk-Behind Mower, 13hp Motion Control, Parking Brake & Operator Presence Group Parts Diagram

32" Walk-Behind Mower, 13hp

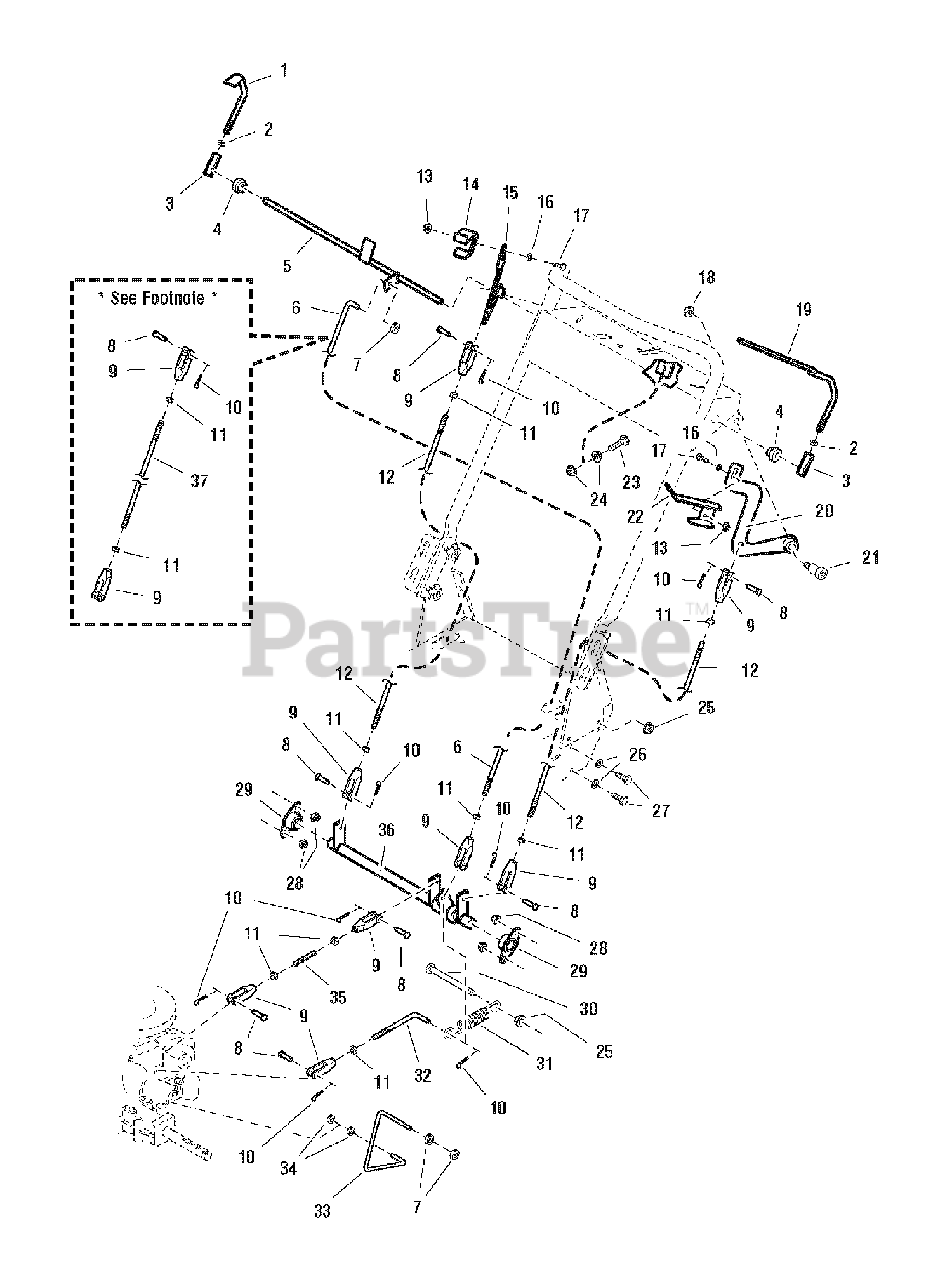

Motion Control, Parking Brake & Operator Presence Group Parts Diagram

  • Title

1

Snapper 5049027

OPERATOR PRESENCE HANDLE - RH
(Superseded to 5049027YP)

$86.99

$

Usually ships in 2-12 days

0

2

Snapper 5025034

NUT, Hex, 3/8-16
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

3

Snapper 5043417

ADJUSTER LINKAGE
(Superseded to 5043417SM)

$24.99

$

Usually ships in 2-12 days

0

4

Snapper 5023257

SHOULDER SPACER
(Superseded to 5023257YP)

$11.99

$

Usually ships in 2-12 days

0

5

Snapper 5048960

SWITCH ROD
(Superseded to 5048960YP)

$26.99

$

Usually ships in 2-12 days

0

6

* See Footnote *

$

$

Not available

7

Snapper 5020047

COLLAR, Set, 5/16
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

8

Snapper 5025213X8

PIN, Clevis, 5/16 x 1
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 5020979

CLEVIS, Plastic, 5/16-24
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

10

Snapper 7091597

PIN, Cotter
(Superseded to 703312)

Note: Was 5025201-6

$3.99

$

In Stock, Qty 20+

0

11

Snapper 5025033

NUT, Hex, 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 5047642

THUMB CONTROL ROD
(Superseded to 5047642SM)

$17.99

$

Usually ships in 2-12 days

0

13

Snapper 5025126

NUT, Hex Serrated Flange, 1/4-20
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 5048950

THUMB PLATE - RH
(Superseded to 5048950YP)

$50.99

$

Usually ships in 2-12 days

0

15

Snapper 5048981D

PIVOT CONTROL - LH
(Superseded to 5048981DYP)

$53.99

$

Usually ships in 2-12 days

0

16

Snapper 5025169

WASHER, Lock, 1/4
(Superseded to 5025169FS)

$3.99

$

In Stock, only 4 left!

0

17

Snapper 5025010X5

CAPSCREW, Hex Head, 1/4-20 x 5/8
(Superseded to 5025010X5SM)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 5025100

NUT, Hex Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

19

Snapper 5049026

OPERATOR PRESENCE HANDLE - LH
(Superseded to 5049026YP)

$86.99

$

Usually ships in 2-12 days

0

20

Snapper 5048982D

PIVOT CONTROL - RH
(Superseded to 5048982DYP)

$51.99

$

Usually ships in 2-12 days

0

21

Snapper 5025223

SHOULDER BOLT, 1/2 x 1
(Superseded to 5025223SM)

$7.99

$

Usually ships in 2-12 days

0

22

Snapper 5048951

THUMB PLATE - LH
(Superseded to 5048951YP)

$50.99

$

Usually ships in 2-12 days

0

23

Snapper 5025011X10

CAPSCREW, Hex Head, 5/16-18 X 1-1/4"
(Superseded to 5025055X10YP)

Note: Was 5025011-10

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 5025127

NUT, Hex Serrated Flange, 5/16-18
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

25

Snapper 5025128

NUT, Hex Serrated Flange, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

26

Snapper 7091098

WASHER, 5/16
(Superseded to 703302)

Note: Was 5025155

$4.49

$

In Stock, Qty 20+

0

27

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

28

Snapper 7091298

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

Note: Was 5025057

$3.99

$

In Stock, Qty 20+

0

29

Snapper 5021098

BEARING, Flange
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

30

Snapper 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, Qty 11

0

31

Snapper 5049352

SPRING, Extension
(Superseded to 5049352SM)

$11.99

$

Usually ships in 2-12 days

0

32

Snapper 5048328

BRAKE LINKAGE ROD
(Superseded to 5048328SM)

$16.99

$

Usually ships in 2-12 days

0

33

Snapper 5047732

DUMP VALVE ROD
(Superseded to 5047732SM)

$24.99

$

Usually ships in 2-12 days

0

34

Snapper 5022481

COLLAR, Set, 1/4
(Superseded to 5022481SM)

$6.99

$

Usually ships in 2-12 days

0

35

Snapper 5047740

LINK STUD
(Superseded to 5047740SM)

$11.99

$

Usually ships in 2-12 days

0

36

Snapper 5047697D

CONTROL SHAFT ASSEMBLY
(Superseded to 5047697DYP)

$170.99

$

Usually ships in 2-12 days

0

37

Snapper 5049225

BRAKE LINKAGE ROD
(Superseded to 5049225YP)

$20.99

$

Usually ships in 2-12 days

0

38

Snapper 5025127

NUT, Hex Serrated Flange, 5/16-18
(Superseded to 5025127SM)

Note: not shown

$3.49

$

In Stock, only 4 left!

0

39

Snapper 5025055X14

CAPSCREW, Hex Head, TFL, 5/16-18 x 1-3/4
(Superseded to 5025055X14SM)

Note: not shown

$3.99

$

Usually ships in 2-12 days

0
