SFH 13320KW (5091002) - Snapper 32" Walk-Behind Mower, 13hp Fuel Supply Hose & Tank Replacement Parts Group Parts Diagram

32" Walk-Behind Mower, 13hp

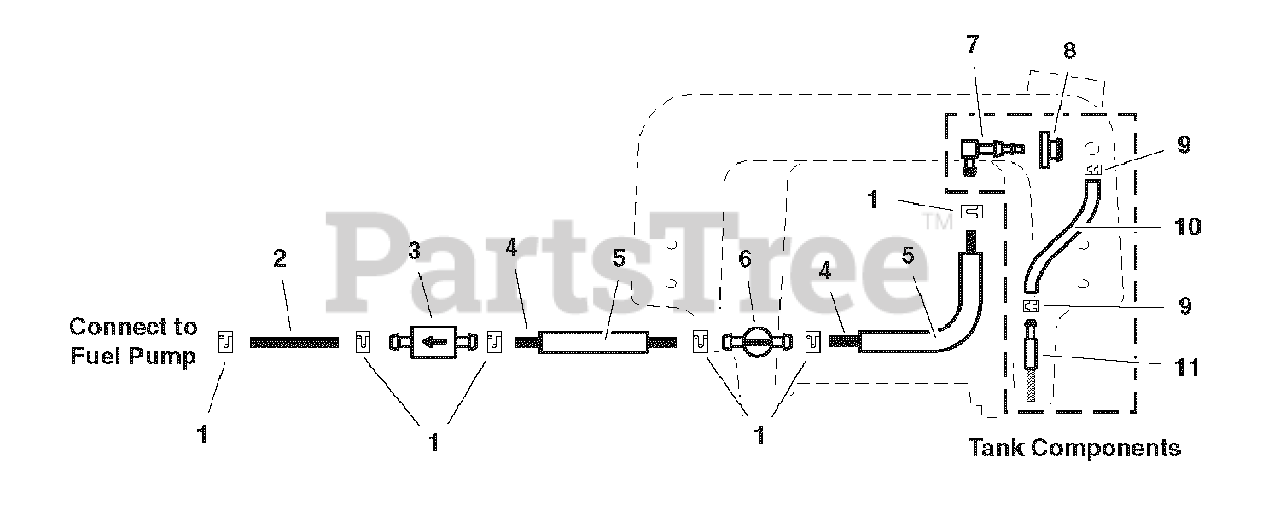

Fuel Supply Hose & Tank Replacement Parts Group Parts Diagram

  • Title
1

Snapper 93807

CLAMP, Hose 1/4"
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

2

Snapper 5050831X7

HOSE, 7 (supplied with engine)
(Superseded to 5050831X7YP)

$5.99

$

Usually ships in 2-12 days

0

3

Snapper 21178-3

FUEL FILTER
(Superseded to 5021178X3)

$12.99

$

In Stock, Qty 15

0

4

Snapper 5050831X19P5

HOSE, 19-1/2"
(Superseded to 5050831X19P5FS)

$9.99

$

Usually ships in 2-12 days

0

5

Snapper 5050833X18

WIRE LOOM, 18"

$9.99

$

Usually ships in 2-12 days

0

6

Snapper 5021235

VALVE, FUel Shut-Off
(Superseded to 5021235SM)

$12.99

$

Usually ships in 2-12 days

0

7

Snapper 5023061

ELBOW FITTING
(Superseded to 5023061SM)

$10.99

$

In Stock, only 1 left!

0

8

Snapper 1726400

GROMMET
(Superseded to 1726400FS)

$11.99

$

In Stock, Qty 6

0

9

Snapper 5023069

HOSE CLAMP
(Superseded to 5023069SM)

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 5050925X20

HOSE, 20"
(Superseded to 5101217SM)

Note: Was 50925-20

$50.99

$

In Stock, Qty 20+

0

11

Snapper 5023067

SCREEN FITTING
(Superseded to 5023067SM)

$13.99

$

In Stock, only 1 left!

0
