SFH 13320KW (5091002) - Snapper 32" Walk-Behind Mower, 13hp Engine Deck & Handle Bars Group Parts Diagram

32" Walk-Behind Mower, 13hp

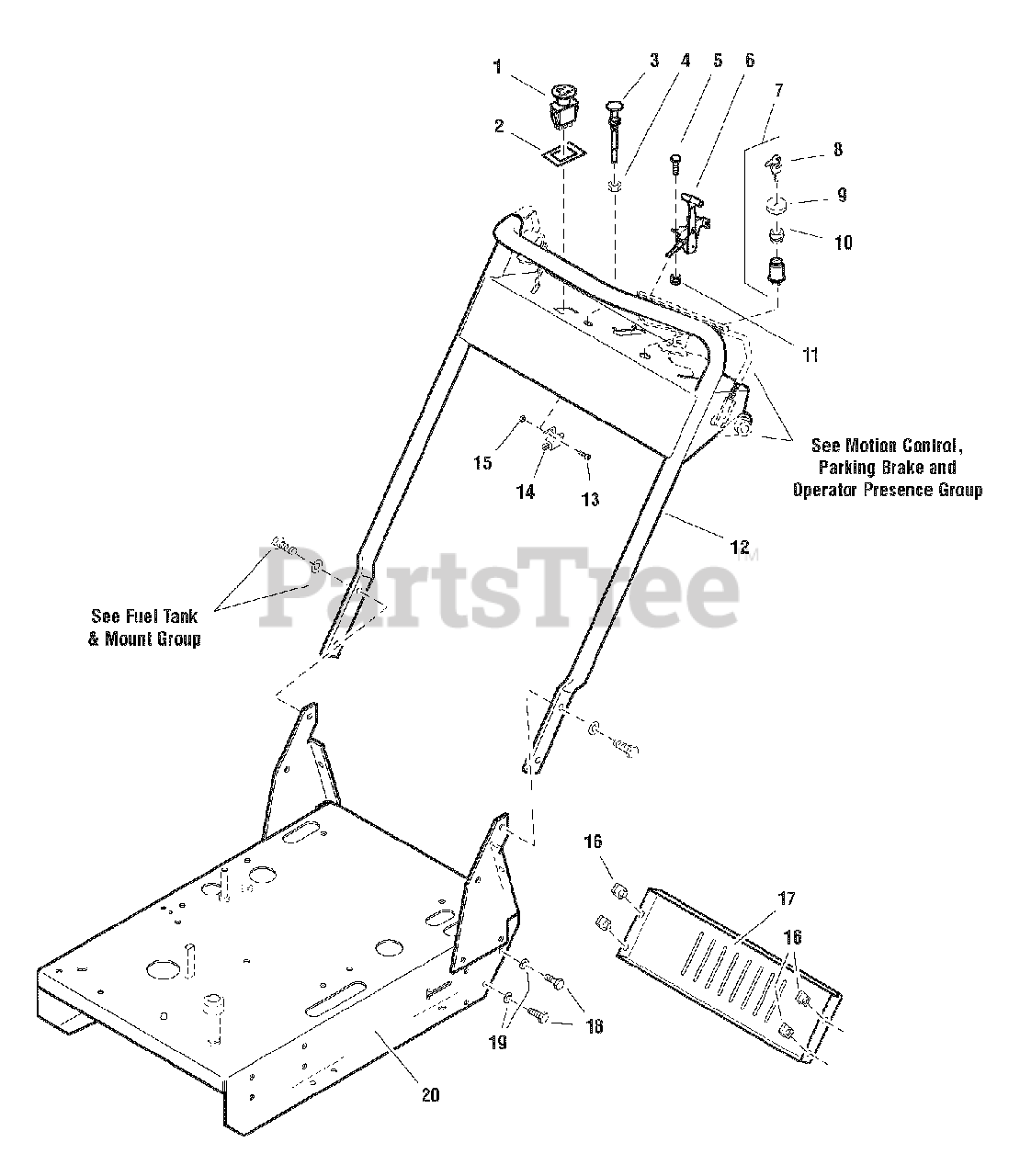

Engine Deck & Handle Bars Group Parts Diagram

  • Title

1

Snapper 5022180

SWITCH, PTO
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

2

Snapper 5022222

SWITCH RETAINER RING
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

3

Snapper 5046501

CABLE, Choke Control
(Superseded to 5046501SM)

$55.99

$

In Stock, only 1 left!

0

4

Snapper 5025035

NUT, Hex, 3/8-24
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 5025010X6

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 5047629

CABLE, Throttle Control
(Superseded to 5047629SM)

$62.99

$

Usually ships in 2-12 days

0

7

Snapper 5021842

SWITCH, Ignition, Complete (includes Ref 7 - 9)
(Superseded to 5021842SM)

$37.99

$

Usually ships in 2-12 days

0

8

Snapper 7073406

KEY, Ignition, Molded (set of 2)
(Superseded to 1717163SM)

Note: 5022789

$8.99

$

In Stock, Qty 20+

0

9

Snapper 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

10

Snapper 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

11

Snapper 5025095

NUT, Hex Nylon Lock, 1/4-20
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

12

Snapper 5049098

HANDLE BAR ASSEMBLY, Complete (includes decals)
(Superseded to 5049098YP)

$712.99

$

Usually ships in 2-12 days

0

12

Snapper 5048949D

HANDLE BAR ASSEMBLY (Red)
(Superseded to 5048949DYP)

$296.99

$

Usually ships in 2-12 days

0

13

Snapper 5025179X4

SCREW, Phillips Hd, #10-24 x 1/2
(Superseded to 5025179X4SM)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 5021769

SWITCH, NC
(Superseded to 5021769SM)

$14.99

$

In Stock, only 1 left!

0

15

Snapper 7091630

NUT, Hex, #10-24
(Superseded to 703895)

Note: Was 5025029

$4.49

$

In Stock, only 1 left!

0

16

Snapper 3022308

BODY CLIP, 5/16-18

Note: Was 5022308

$

$

Not available

17

Snapper 5047735D

REAR SHIELD
(Superseded to 5047735DYP)

$34.99

$

Usually ships in 2-12 days

0

18

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

19

Snapper 7091098

WASHER, 5/16
(Superseded to 703302)

Note: Was 5025155

$4.49

$

In Stock, Qty 20+

0

20

Snapper 5048230D

ENGINE DECK ASSEMBLY

$

$

Not available
