SFC30-7CV - Scag 30" Walk-Behind Mower, 224cc Kohler (SN: T7200001 - T7299999) ENGINE AND ATTACHING PARTS Parts Diagram

30" Walk-Behind Mower, 224cc Kohler

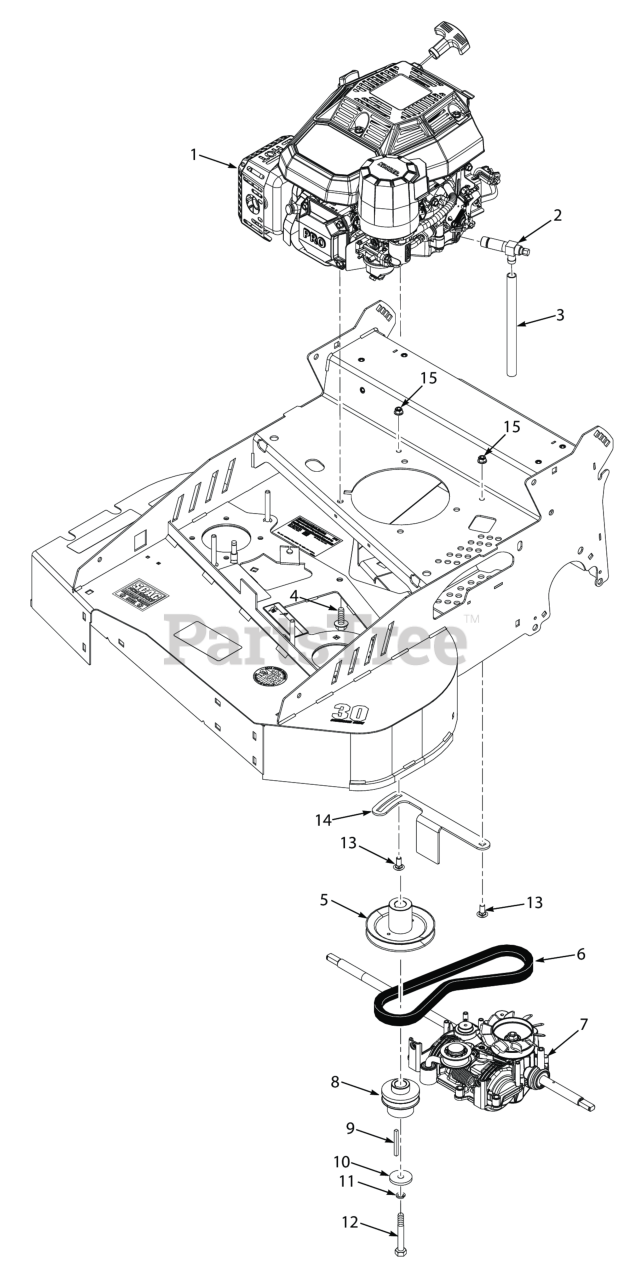

ENGINE AND ATTACHING PARTS Parts Diagram

  • Title

1

Scag 486698

Engine, Kohler CV224

Note: Available through individual engine manufacturer

$

$

Currently unavailable

2

Scag 482510

Extension, Oil Drain 2.3" - Kawasaki

$36.99

$

Usually ships in 2-12 days

0

3

Scag 483280

Tubing, Oil Drain (order by inch)

$3.49

$

Usually ships in 2-12 days

0

4

Scag 04011-07

Bolt, Hex Head Self-Tap 3/8-16 x 1-1/4" (Kohler x3 - 25EFI, Kohler x4 - 29EFI)

$3.49

$

In Stock, Qty 11

0

5

Scag 487186

Pulley, 5.20 Dia. - .875 Bore

$55.99

$

Usually ships in 2-12 days

0

6

Scag 486707

Belt, Transmission

$20.99

$

Usually ships in 2-12 days

0

7

Scag 486697

Transmission, MV702

$581.99

$

Usually ships in 2-12 days

0

8

Scag 486757

Pulley, Transmission

$27.99

$

Usually ships in 2-12 days

0

9

Scag 04043-10

Key, 3/16 x 3/16 x 2"

$0.99

$

Usually ships in 2-12 days

0

10

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, only 4 left!

0

11

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 8

0

12

Scag 04102-15

Bolt, Hex Head 3/8-24 x 2" w/ Patch Lock

$1.99

$

Usually ships in 2-12 days

0

13

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

14

Scag 429016

Bracket, Belt Guide

$11.99

$

Usually ships in 2-12 days

0

15

Scag 04117-07

Nut, Flange Elastic Stop 5/16-18

$

$

Currently unavailable
