SFC30-7CV - Scag 30" Walk-Behind Mower, 224cc Kohler (SN: T7200001 - T7299999) CUTTER DECK LIFT SYSTEM - SWIVEL WHEEL Parts Diagram

30" Walk-Behind Mower, 224cc Kohler

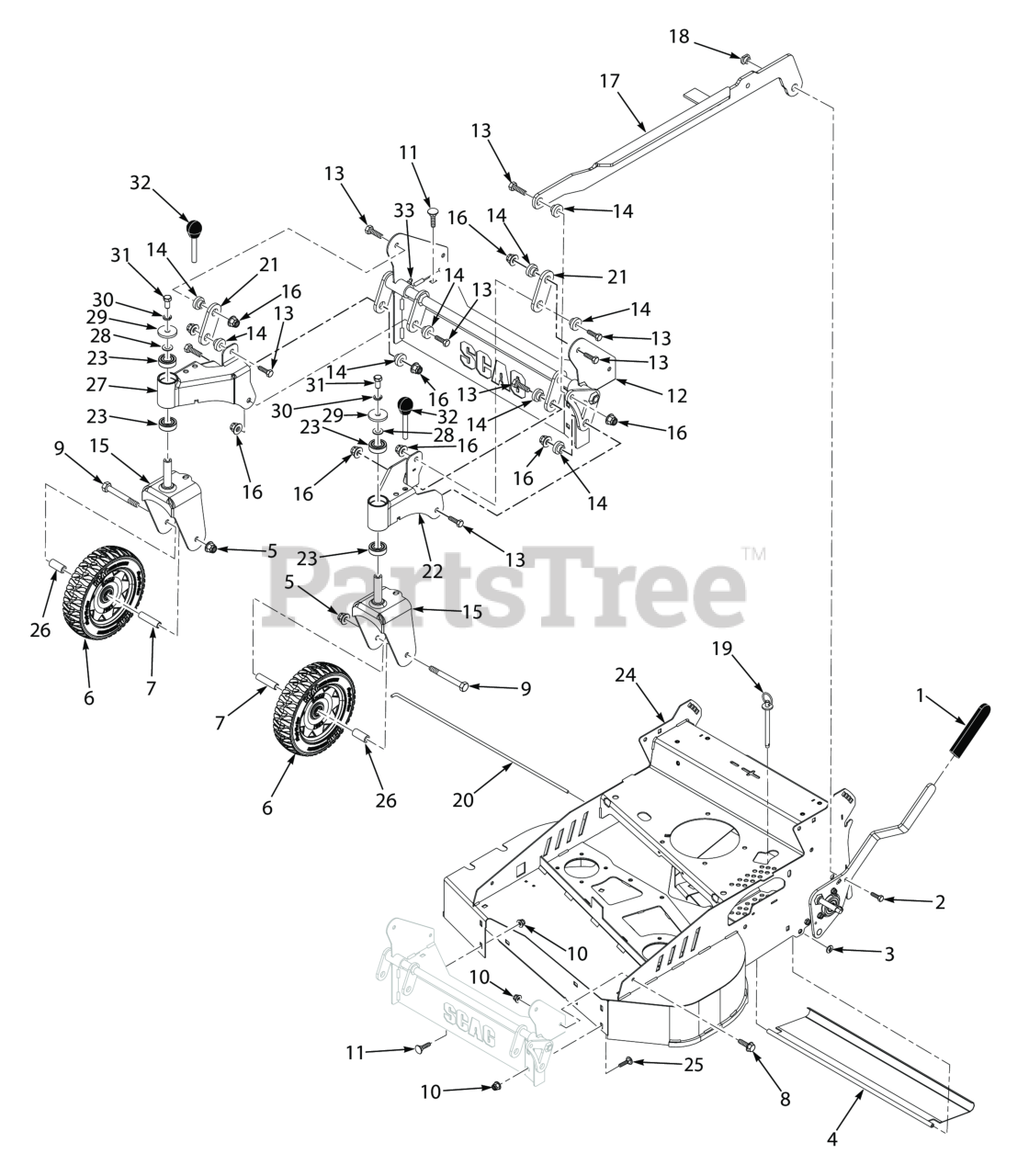

CUTTER DECK LIFT SYSTEM - SWIVEL WHEEL Parts Diagram

  • Title

1

Scag 486932

Grip, Deck Lift

$1.49

$

Usually ships in 2-12 days

0

2

Scag 04001-18

Bolt, Hex Head, 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

3

Scag 04024-03

Nut, Push-On 5/16-18

$1.49

$

In Stock, Qty 16

0

4

Scag 463381

Trail Shield

$34.99

$

Usually ships in 2-12 days

0

5

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 486702

Wheel Assembly, Front

$70.99

$

In Stock, only 1 left!

0

Scag 486765

Bearing (x2)

$12.99

$

Usually ships in 2-12 days

0

7

Scag 431123

Spacer, Front Wheel

$5.49

$

In Stock, Qty 6

0

8

Scag 04017-17

Cpscrw, 5/16-18 x 1"Serrated Flange Hex Head

$0.99

$

Usually ships in 2-12 days

0

9

Scag 04001-30

Bolt, Hex Head 3/8-16 x 4.00

$1.49

$

In Stock, only 2 left!

0

10

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

11

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

12

Scag 453284

Caster Lift Support Weldment

$

$

Currently unavailable

13

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI

$0.99

$

In Stock, Qty 12

0

14

Scag 43086

BUSHING, SPEED ADJUSTMENT LEVER

$5.99

$

Usually ships in 2-12 days

0

15

Scag 453285

Yoke Weldment

$60.99

$

Usually ships in 2-12 days

0

16

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 453283

Weldment Deck Lift

$

$

Currently unavailable

18

Scag 431125

Pivot, Deck Weldment

$7.49

$

Usually ships in 2-12 days

0

19

Scag 04067-14

Ring Pin, 3/8 x 4"

$17.99

$

In Stock, only 1 left!

0

20

Scag 44246

Rod, Trail Shield

$5.49

$

Usually ships in 2-12 days

0

21

Scag 428786

Bracket, Link

$

$

Currently unavailable

22

Scag 453286

Yoke Support Weldment, LH

$

$

Currently unavailable

23

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$12.99

$

In Stock, Qty 20+

0

24

Scag 463488

Cutter Deck w/ Decals

$1074.99

$

Usually ships in 2-12 days

0

25

Scag 04003-04

Bolt, Carriage 5/16-18x1" (large frame units only)

$0.99

$

In Stock, Qty 9

0

26

Scag 431047

Pivot, Brake Lever

$2.49

$

In Stock, only 2 left!

0

27

Scag 453287

Yoke Support Weldment, RH

$

$

Currently unavailable

28

Scag 04040-05

Flatwasher, 3/8 (.406 x .812 x .065)

$0.99

$

In Stock, only 4 left!

0

29

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, only 4 left!

0

30

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 8

0

31

Scag 04001-18

Bolt, Hex Head, 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

32

Scag 487102

Pin Assembly, Swivel Lock

$27.99

$

Usually ships in 2-12 days

0

33

Scag 48114-04

GREASE FITTING, STR. 1/4-28 SELF TAP.

$0.99

$

In Stock, Qty 20+

0
