Scag SFC30-7CV - Scag 30" Walk-Behind Mower, 224cc Kohler (SN: T7200001 - T7299999) CUTTER DECK Parts Lookup with Diagrams

1

Scag 486708

Belt, Deck

$30.99

$

In Stock, Qty 7

2

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

3

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

4

Scag 486869

Pulley, Idler 3-1/2"

$22.99

$

In Stock, only 4 left!

5

Scag 04112-05

Locknut, 1/2-13 Spiral Lock

$2.99

$

Usually ships in 2-12 days

6

Scag 04063-05

KEY, 3/16 X 3/16 X 1-1/2

$1.99

$

In Stock, only 2 left!

7

Scag 487239

Pulley, Deck

$78.99

$

Usually ships in 2-12 days

8

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$12.99

$

In Stock, Qty 20+

9

Scag 463456

Idler Arm Assembly (incl. #8, #9, #26, #40, #41, #42, #45, #46, #47)

$102.99

$

Usually ships in 2-12 days

10

Scag 43689

Pivot, Idler Short

$10.99

$

In Stock, Qty 20+

11

Scag 04003-03

SHORT SQUARE NECK CARRIAGE BOLT, 3/8-16 X 2"

$1.49

$

In Stock, Qty 5

12

Scag 463488

Cutter Deck w/ Decals

$1074.99

$

Usually ships in 2-12 days

13

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 8

14

Scag 463271

Spindle Assembly

$122.99

$

Usually ships in 2-12 days

15

Scag 486710

Bearing

$22.99

$

In Stock, Qty 8

16

Scag 431115

Spacer, Bearing

$6.99

$

In Stock, only 4 left!

17

Scag 431112

Housing, Spindle

$95.99

$

In Stock, only 4 left!

18

Scag 431114

Bearing Protector

$15.99

$

In Stock, only 4 left!

19

Scag 431113

Spindle Shaft

$44.99

$

In Stock, only 4 left!

20

Scag 486882

Cutter Blade, 15-1/4"

$28.99

$

In Stock, Qty 20+

21

Scag 04001-57

Bolt, Hex Head 1/2-13 x 1"

$0.99

$

In Stock, Qty 8

22

Scag 04043-08

Washer, Flat, 1/2-.562 x 1.375 x .109 HD

$1.49

$

In Stock, Qty 9

23

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

24

Scag 428655

Baffle, Rear Discharge

$23.99

$

Usually ships in 2-12 days

25

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

26

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

27

Scag 428654

Baffle, Rear Discharge

$17.99

$

Usually ships in 2-12 days

28

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 6

29

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

30

Scag 429087

Bracket, Adjustable

$7.49

$

Usually ships in 0 days

31

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

32

Scag 481309

LATCH, HOOD

$7.99

$

Usually ships in 2-12 days

33

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 11

34

Scag 453217

Weldment, Block-Off Plate

$52.99

$

In Stock, only 1 left!

35

Scag 463350

Discharge Chute Assembly (incl. #36, #37, #38)0

$104.99

$

Usually ships in 2-12 days

36

Scag 428531

Mounting Bracket, Discharge Chute

$33.99

$

Usually ships in 2-12 days

37

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

38

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V)

$0.99

$

In Stock, Qty 20+

39

Scag 463377

Belt Cover w/Decals

$79.99

$

Usually ships in 2-12 days

40

Scag 04064-22

Pin, Clevis 5/16" x 7/8"

$1.49

$

In Stock, Qty 7

41

Scag 04061-02

Pin, Cotter 3/32 x .75"

$0.99

$

In Stock, Qty 11

42

Scag 04024-03

Nut, Push-On 5/16-18

$1.49

$

In Stock, Qty 16

43

Scag 43063

SPACER, IDLER

$7.99

$

In Stock, only 2 left!

44

Scag 487240

Spring, Brake

$1.99

$

In Stock, only 1 left!

45

Scag 487231

Brake Band

$30.99

$

Usually ships in 2-12 days

46

Scag 04001-218

CAPSCREW, HEXHEAD 7/16-14 X 1.50

$1.99

$

Usually ships in 2-12 days

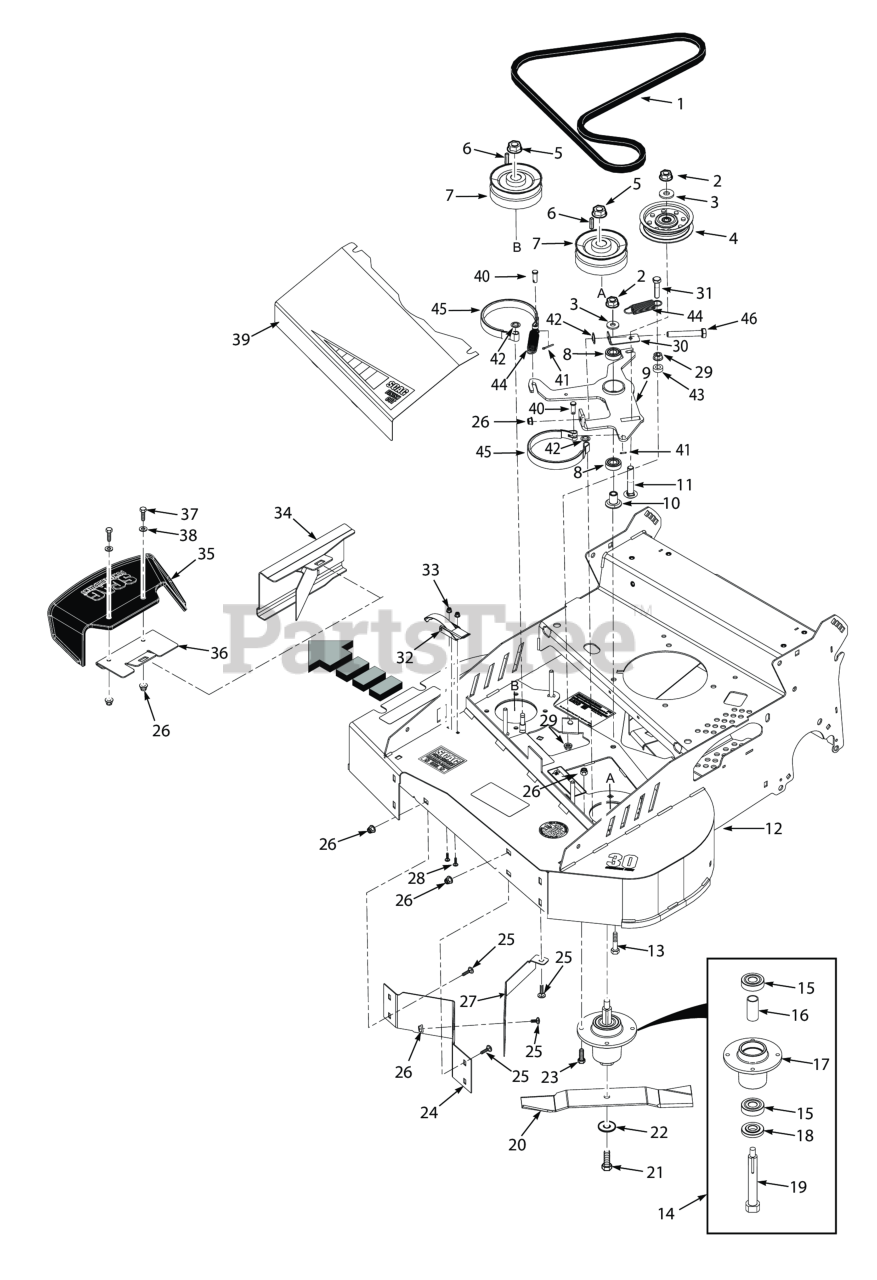

SFC30-7CV - Scag 30" Walk-Behind Mower, 224cc Kohler (SN: T7200001 - T7299999) CUTTER DECK Parts Diagram

CUTTER DECK Parts Diagram
