SFC30-7CV - Scag 30" Walk-Behind Mower, 224cc Kohler (SN: T7200001 - T7299999) BAG AND REAR DOOR COMPONENTS Parts Diagram

30" Walk-Behind Mower, 224cc Kohler

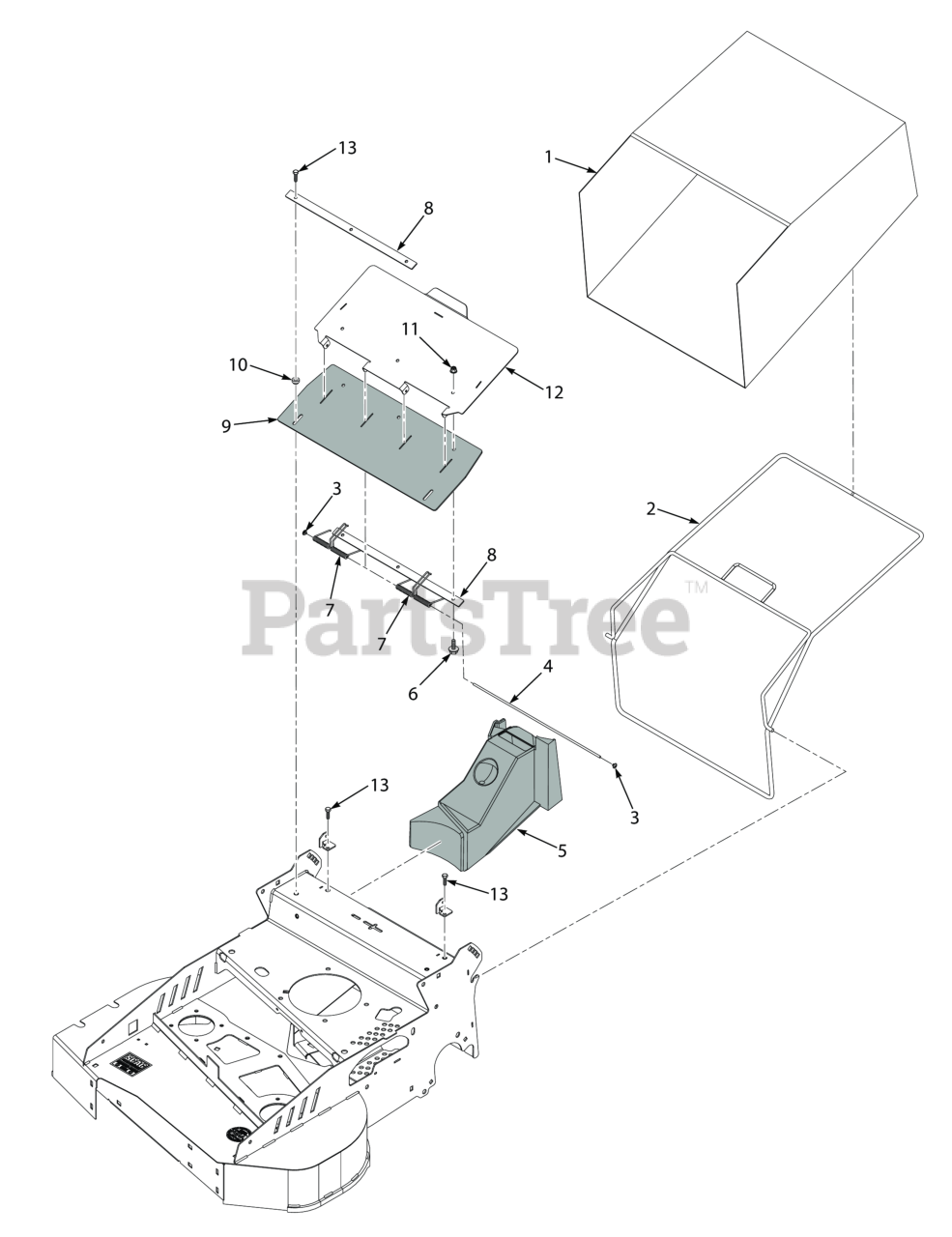

BAG AND REAR DOOR COMPONENTS Parts Diagram

  • Title

1

Scag 463362

Assembly, GC Bag (incl. #2)

$187.99

$

Usually ships in 2-12 days

0

Scag 486772

GC Bag Only

$113.99

$

Usually ships in 2-12 days

0

2

Scag 453245

Weldment, Bag Support

$73.99

$

In Stock, only 1 left!

0

3

Scag 04024-05

Nut, Push-on

$0.99

$

Usually ships in 2-12 days

0

4

Scag 428520

Pin, Pivot

$3.99

$

Usually ships in 2-12 days

0

5

Scag 486891

Blockoff Plug

$15.99

$

In Stock, only 1 left!

0

6

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 18

0

7

Scag 486828

Spring, Rear Cover

$11.99

$

Usually ships in 2-12 days

0

8

Scag 428675

Plate, Clamp

$9.99

$

Usually ships in 2-12 days

0

9

Scag 486829

Gasket, Rear Cover

$22.99

$

Usually ships in 2-12 days

0

10

Scag 431137

Pivot

$3.99

$

Usually ships in 2-12 days

0

11

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

12

Scag 453247

Rear Cover Weldment

$51.99

$

Usually ships in 2-12 days

0

13

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 18

0
