SFC30-7CV - Scag 30" Walk-Behind Mower, 224cc Kohler (SN: S2000001 - S2099999) CHASSIS COMPONENTS Parts Diagram

30" Walk-Behind Mower, 224cc Kohler

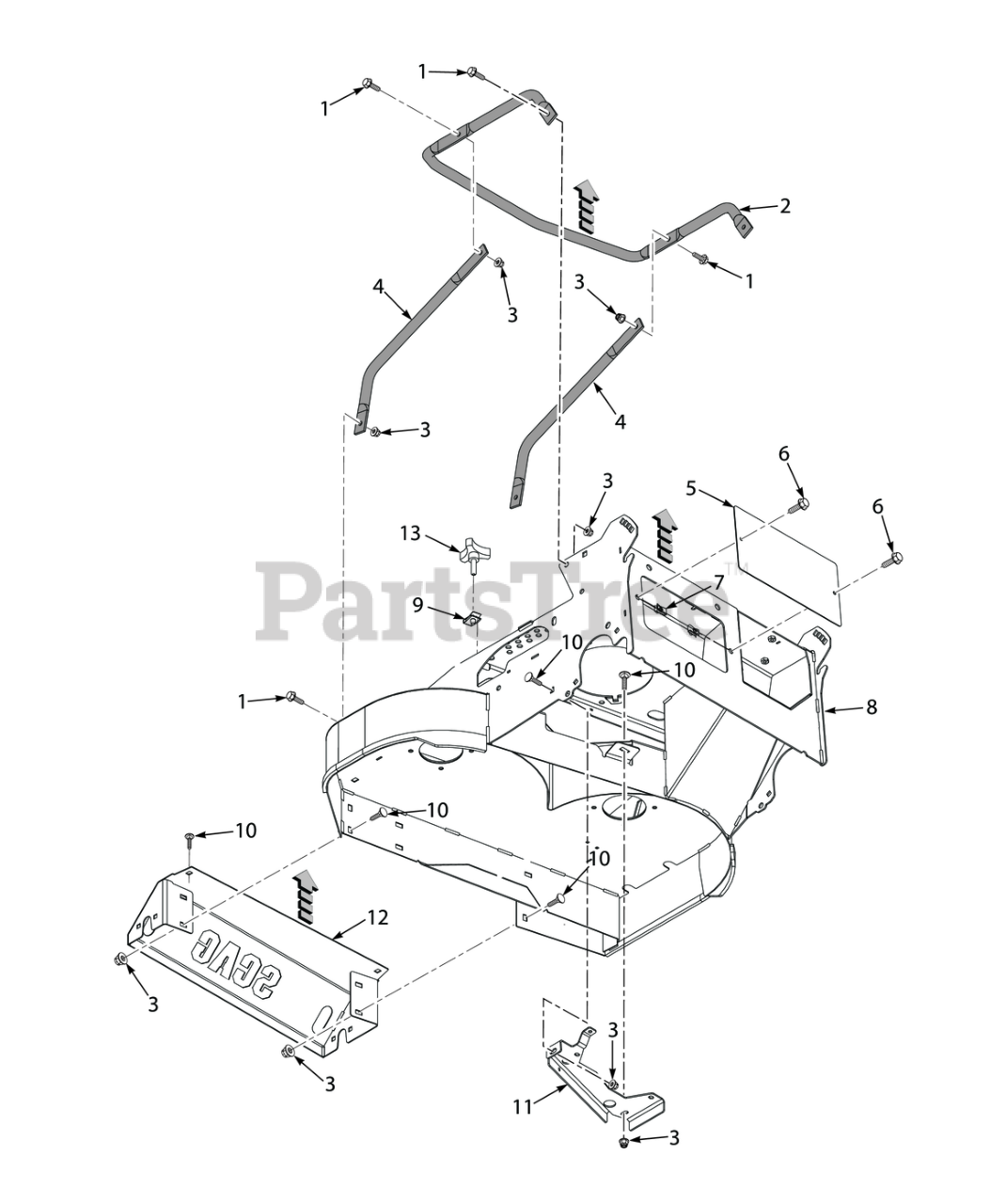

CHASSIS COMPONENTS Parts Diagram

  • Title

1

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

0

2

Scag 428545

Guard, Engine

$97.99

$

Usually ships in 2-12 days

0

3

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

4

Scag 428546

Guard Bracket, Side

$42.99

$

Usually ships in 2-12 days

0

5

Scag 428514

Cover, Transmission Access

$10.99

$

Usually ships in 2-12 days

0

6

Scag 04017-04

CAP SCREW, 1/4-20 X 1/2" SERRATED FLANGE HEX

$0.99

$

In Stock, Qty 20+

0

7

Scag 04110-01

Bolt, Hex Head 3/8-16 x 1"

$1.49

$

In Stock, Qty 18

0

8

Scag 463440

Frame w/Decals

$

$

Not available

9

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

0

10

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

11

Scag 428398

Mounting Bracket, Transmission

$19.99

$

Usually ships in 2-12 days

0

12

Scag 453219

Weldment, Front Axle Support

$132.99

$

In Stock, only 2 left!

0

13

Scag 481625-01

Knob, w/stud 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

0
