SFC30-7CV-CA - Scag 30" Walk-Behind Mower, 224cc Kohler, CARB (SN: T7300001 - T7399999) HANDLE BAR COMPONENTS Parts Diagram

30" Walk-Behind Mower, 224cc Kohler, CARB

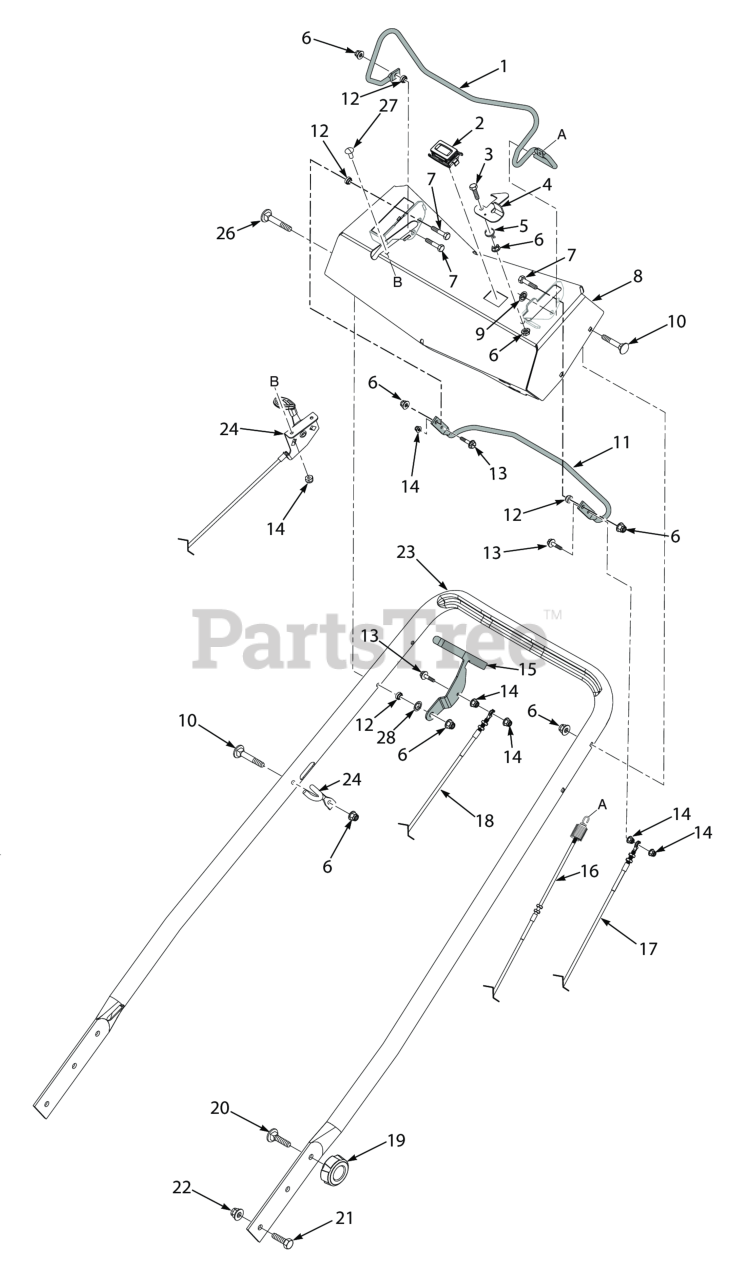

HANDLE BAR COMPONENTS Parts Diagram

  • Title
1

Scag 44234

Control, Deck

$30.99

$

Usually ships in 2-12 days

0

2

Scag 486912

Hourmeter

$35.99

$

Usually ships in 2-12 days

0

3

Scag 04001-14

Capscrew, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 15

0

4

Scag 428566

Latch, PTO

$15.99

$

Usually ships in 2-12 days

0

5

Scag 483507

Spring, Hood Latch

$6.49

$

In Stock, only 1 left!

0

6

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

7

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 18

0

8

Scag 463376

Instrument Panel w/Decal

$146.99

$

In Stock, only 1 left!

0

9

Scag 04024-03

Nut, Push-On 5/16-18

$1.49

$

In Stock, Qty 16

0

10

Scag 04003-51

Bolt, Carriage 1/4-20 x 2"

$0.99

$

Usually ships in 2-12 days

0

11

Scag 44235

Control, Drive

$18.99

$

Usually ships in 2-12 days

0

12

Scag 431137

Pivot

$3.99

$

Usually ships in 2-12 days

0

13

Scag 04010-47

Screw, #10-24 x 1" HD Slotted

$0.99

$

Usually ships in 2-12 days

0

14

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 14

0

15

Scag 428634

Bracket, Brake Handle

$11.99

$

In Stock, only 1 left!

0

16

Scag 487246

Cable, Deck

$32.99

$

In Stock, Qty 8

0

17

Scag 486928

Cable, Drive

$48.99

$

Usually ships in 2-12 days

0

18

Scag 486929

Cable, Brake

$37.99

$

Usually ships in 2-12 days

0

19

Scag 481885-08

Knob, 3/8-16 x 2.48 OD

$12.99

$

In Stock, only 2 left!

0

20

Scag 04003-31

Bolt, Carriage 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

21

Scag 04013-05

Screw, 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 6

0

22

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 486714

Handle

$132.99

$

Usually ships in 2-12 days

0

24

Scag 486930

Cable, Throttle

$43.99

$

In Stock, only 1 left!

0

25

Scag 44201

Guide, Pull Rope

$7.49

$

Usually ships in 2-12 days

0

26

Scag 04003-52

Bolt, Carriage 1/4-20 x 2-1/2" Full Thread

$0.99

$

Usually ships in 2-12 days

0

27

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 10

0

28

Scag 04032-07

Washer, Curved

$

$

Currently unavailable
