SFC21-7CV - Scag 21" Walk-Behind Mower, 224cc Kohler (SN: W2400001 - W2499999) FUEL SYSTEM (MACHINES WITH 7CV ENGINE) Parts Diagram

21" Walk-Behind Mower, 224cc Kohler

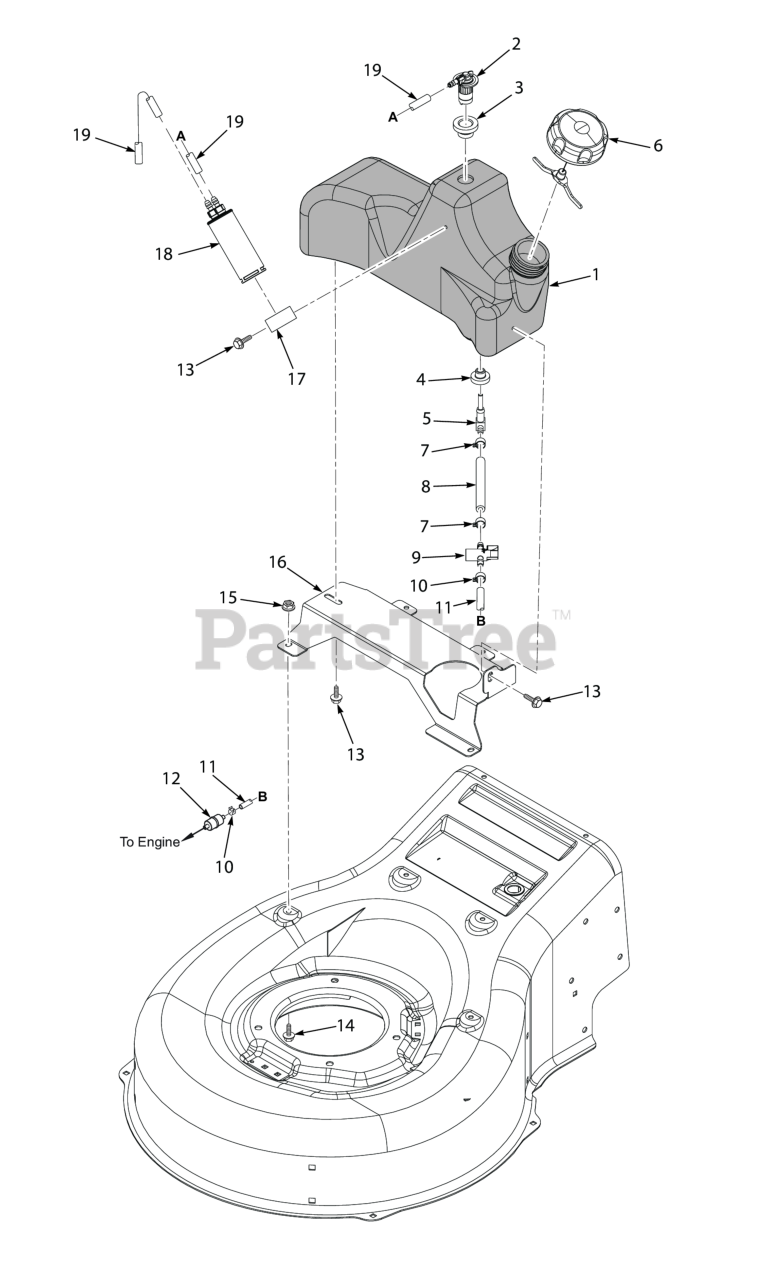

FUEL SYSTEM (MACHINES WITH 7CV ENGINE) Parts Diagram

  • Title

1

Scag 463366

Fuel Tank Assembly w/Decal (incl. #2, #3, #4, #5)

$185.99

$

Usually ships in 2-12 days

0

2

Scag 486939

Valve

$10.99

$

In Stock, only 1 left!

0

3

Scag 486940

Grommet, Valve

$2.49

$

In Stock, only 1 left!

0

4

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

5

Scag 483748

Elbow, 90 Degree w/Screen

$8.99

$

In Stock, only 2 left!

0

6

Scag 486967

Cap, Fuel Tank

$28.99

$

Usually ships in 2-12 days

0

7

Scag 48059-01

Clamp, Fuel Hose 1/4" Hose I.D.

$0.99

$

In Stock, Qty 7

0

8

Scag 483617

Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) - Order by Inch

$0.99

$

In Stock, Qty 20+

0

9

Scag 486938

Valve, Fuel Shutoff

$9.49

$

Usually ships in 2-12 days

0

10

Clamp

Note: Available through individual engine manufacturer

$

$

Not available

11

Fuel Hose

Note: Available through individual engine manufacturer

$

$

Not available

12

Fuel Filter

Note: Available through individual engine manufacturer

$

$

Not available

13

Scag 04017-04

CAP SCREW, 1/4-20 X 1/2" SERRATED FLANGE HEX

$0.99

$

In Stock, Qty 20+

0

14

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 9

0

15

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

16

Scag 428991

Bracket, Fuel Tank Mounting

$8.49

$

Usually ships in 2-12 days

0

17

Scag 48030-26

Clamp, 1-1/2" Cable

$2.99

$

Usually ships in 2-12 days

0

18

Scag 486925

Canister, Carbon 1.28 Gal.

$47.99

$

In Stock, only 1 left!

0

19

Scag 484345

Hose, Vapor Recovery 3/16" (order by inch)

$0.99

$

In Stock, Qty 20+

0
