SFC21-7CV - Scag 21" Walk-Behind Mower, 224cc Kohler (SN: W2400001 - W2499999) CUTTER DECK Parts Diagram

21" Walk-Behind Mower, 224cc Kohler

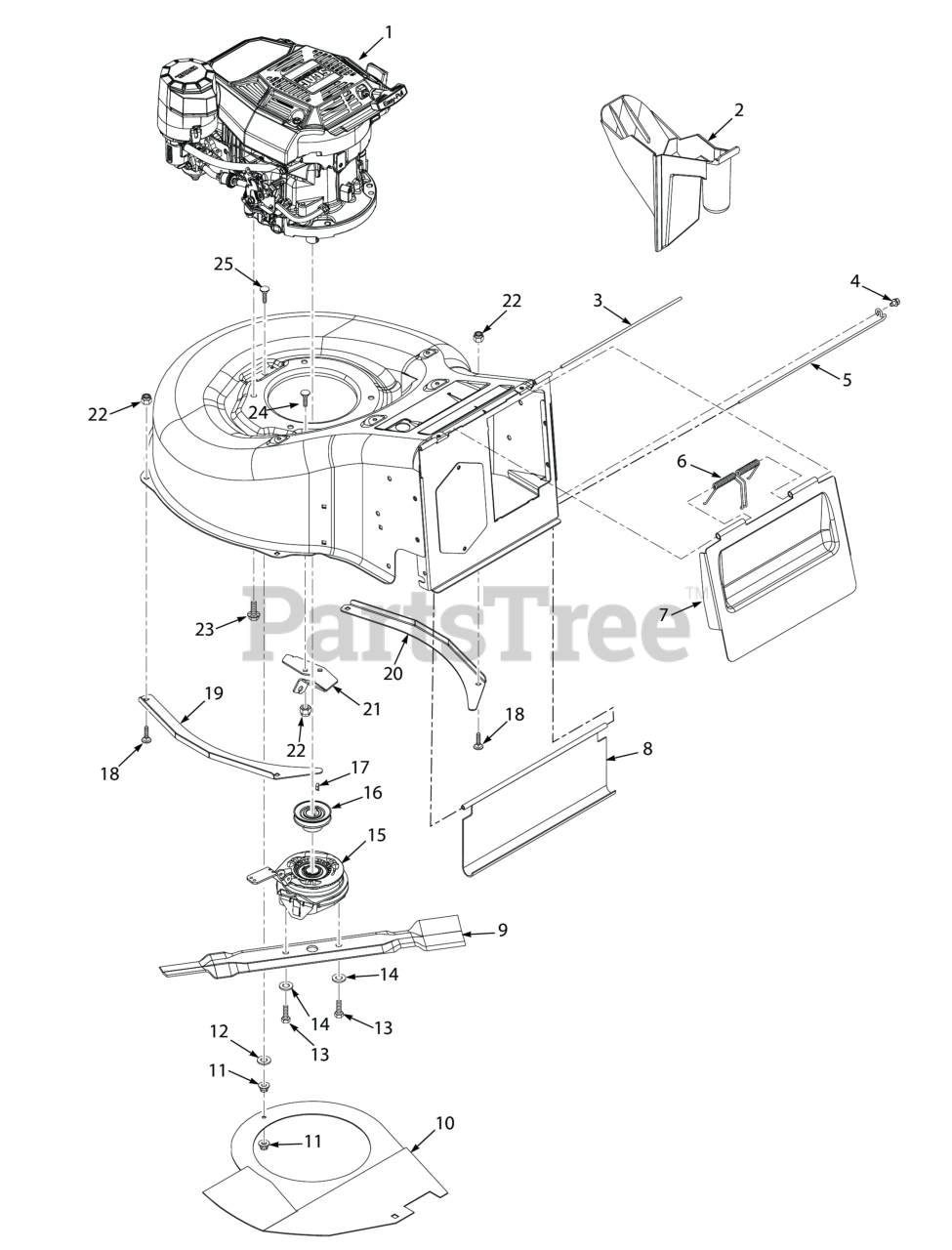

CUTTER DECK Parts Diagram

  • Title

1

Scag 487393

Engine, 7CV

Note: Available through individual engine manufacturer.

$

$

Currently unavailable

2

Scag 487344

Plug, Mulch

$15.99

$

Usually ships in 2-12 days

0

3

Scag 429163

Pin, Pivot

$6.49

$

Usually ships in 2-12 days

0

4

Scag 04011-29

Screw, 1/4-20 x .375"

$0.99

$

In Stock, Qty 5

0

5

Scag 44253

Rod, Support Spring

$3.49

$

Usually ships in 2-12 days

0

6

Scag 487414

Spring, Rear Cover

$7.49

$

Usually ships in 2-12 days

0

7

Scag 463514

Cover, Rear

$82.99

$

Usually ships in 2-12 days

0

8

Scag 487302

Trail Shield

$16.99

$

Usually ships in 2-12 days

0

9

Scag 487214

Cutter Blade, 21"

$18.99

$

In Stock, only 2 left!

0

10

Scag 453395

Belt, Cover

$

$

Not available

11

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

12

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

13

Scag 04001-229

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

Usually ships in 2-12 days

0

14

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

15

Scag 487184

Clutch, BBC

$229.99

$

Usually ships in 2-12 days

0

16

Scag 487351

Pulley, Transmission

$24.99

$

Usually ships in 2-12 days

0

17

Scag 04063-43

Key, 3/16 x 3/16 x .313

$0.99

$

Usually ships in 2-12 days

0

18

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 9

0

19

Scag 429128

Guard, LH

$14.99

$

Usually ships in 2-12 days

0

20

Scag 429129

Guard, RH

$14.99

$

Usually ships in 2-12 days

0

21

Scag 429043

Anti-Rotation Bracket

$28.99

$

Usually ships in 2-12 days

0

22

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

23

Scag 04011-22

Screw, 3/8-19 x 1" Self Tapping

$4.49

$

Usually ships in 0 days

0

24

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

25

Scag 04003-09

Bolt, Carriage, 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 9

0
