SFC21-5CV - Scag 21" Walk-Behind Mower, 173cc Kohler (SN: W2300001 - W2399999) REAR DRIVE SYSTEM COMPONENTS Parts Diagram

21" Walk-Behind Mower, 173cc Kohler

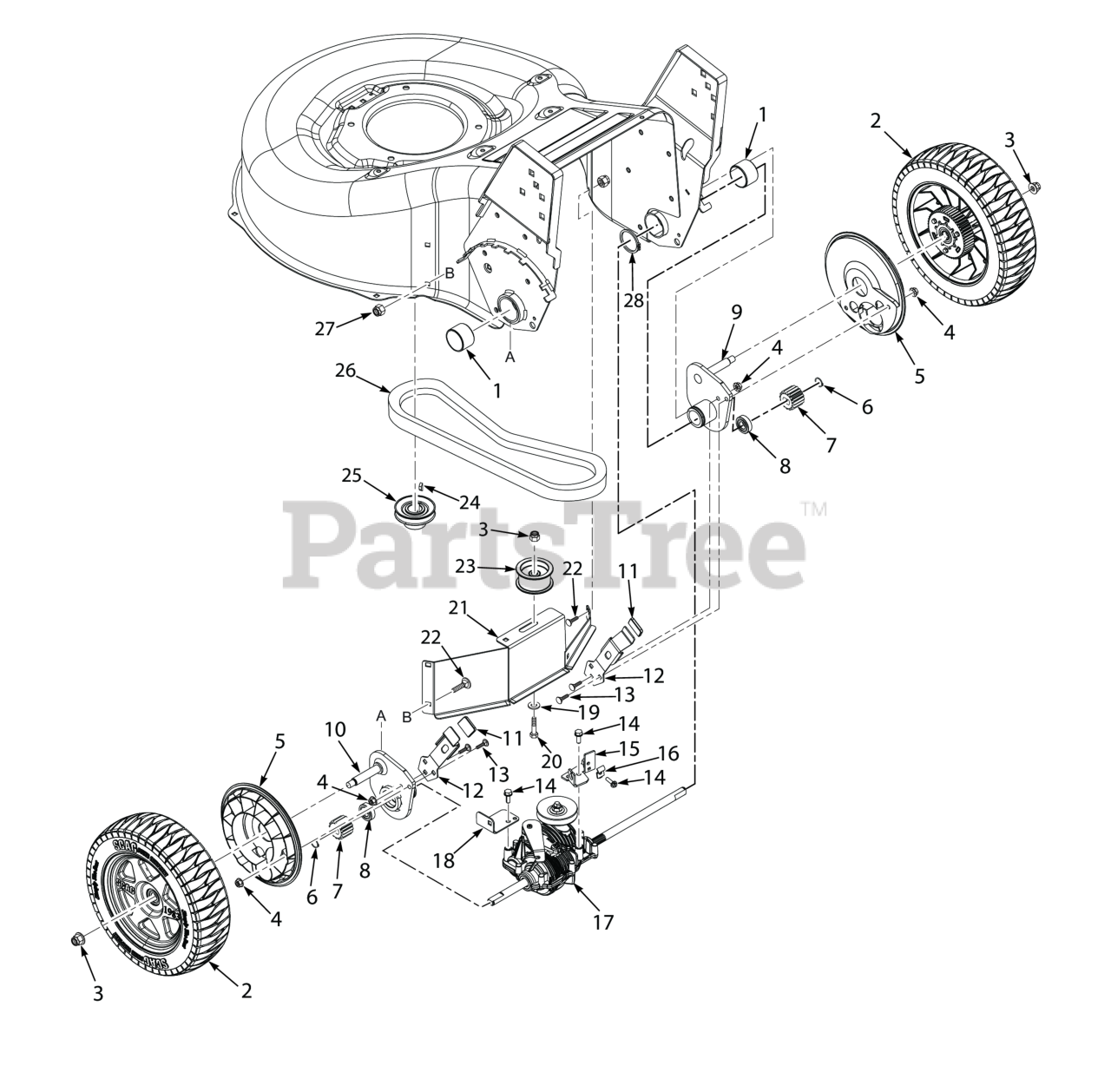

REAR DRIVE SYSTEM COMPONENTS Parts Diagram

  • Title

1

Scag 483453-31

Bearing

$5.99

$

Usually ships in 2-12 days

0

2

Scag 487070

Wheel Assembly, Rear

$109.99

$

Usually ships in 2-12 days

0

3

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

4

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

5

Scag 486923

Cover, Rear Wheel

$8.49

$

Usually ships in 2-12 days

0

6

Scag 04050-20

Retaining Ring, 1/2" Ext. HD

$0.99

$

Usually ships in 2-12 days

0

7

Scag 486719

Gear, Pinion

$3.99

$

Usually ships in 2-12 days

0

8

Scag 486765

Bearing (x2)

$12.99

$

Usually ships in 2-12 days

0

9

Scag 453367

Wheel Axle Mount, RH

$

$

Not available

10

Scag 453366

Wheel Axle Mount, LH

$

$

Not available

11

Scag 487442

Grip, Deck Height

$0.99

$

In Stock, only 4 left!

0

12

Scag 428927

Adjust Lever, Rear

$

$

Not available

13

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04128-01

Screw, M6-1.00 X 16 Shakeproof

$0.99

$

In Stock, only 2 left!

0

15

Scag 453389

Mount, Cable Weldment

$24.99

$

Usually ships in 2-12 days

0

16

Scag 429122

Clamp, Cable

$1.49

$

Usually ships in 2-12 days

0

17

Scag 487512

Transmission

$

$

Currently unavailable

18

Scag 429000

Bracket, Transmission Mount

$

$

Not available

19

Scag 04040-05

Flatwasher, 3/8 (.406 x .812 x .065)

$0.99

$

In Stock, only 4 left!

0

20

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

0

21

Scag 429065

Baffle, Rear

$

$

Not available

22

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 9

0

23

Scag 487341

Pulley, 2.0 Idler

$18.99

$

Usually ships in 2-12 days

0

24

Scag 487351

Pulley, Transmission

$24.99

$

Usually ships in 2-12 days

0

25

Scag 04063-43

Key, 3/16 x 3/16 x .313

$0.99

$

Usually ships in 2-12 days

0

26

Scag 487342

Belt, Transmission

$18.99

$

In Stock, only 1 left!

0

27

Scag 04112-03

Nut, Spiralock 3/8-16

$

$

Currently unavailable

28

Scag 04050-21

Retaining Ring, 1-3/8" Ext. HD

$1.99

$

Usually ships in 0 days

0
