SFC21-5CV - Scag 21" Walk-Behind Mower, 173cc Kohler (SN: W2300001 - W2399999) HANDLE BAR COMPONENTS Parts Diagram

21" Walk-Behind Mower, 173cc Kohler

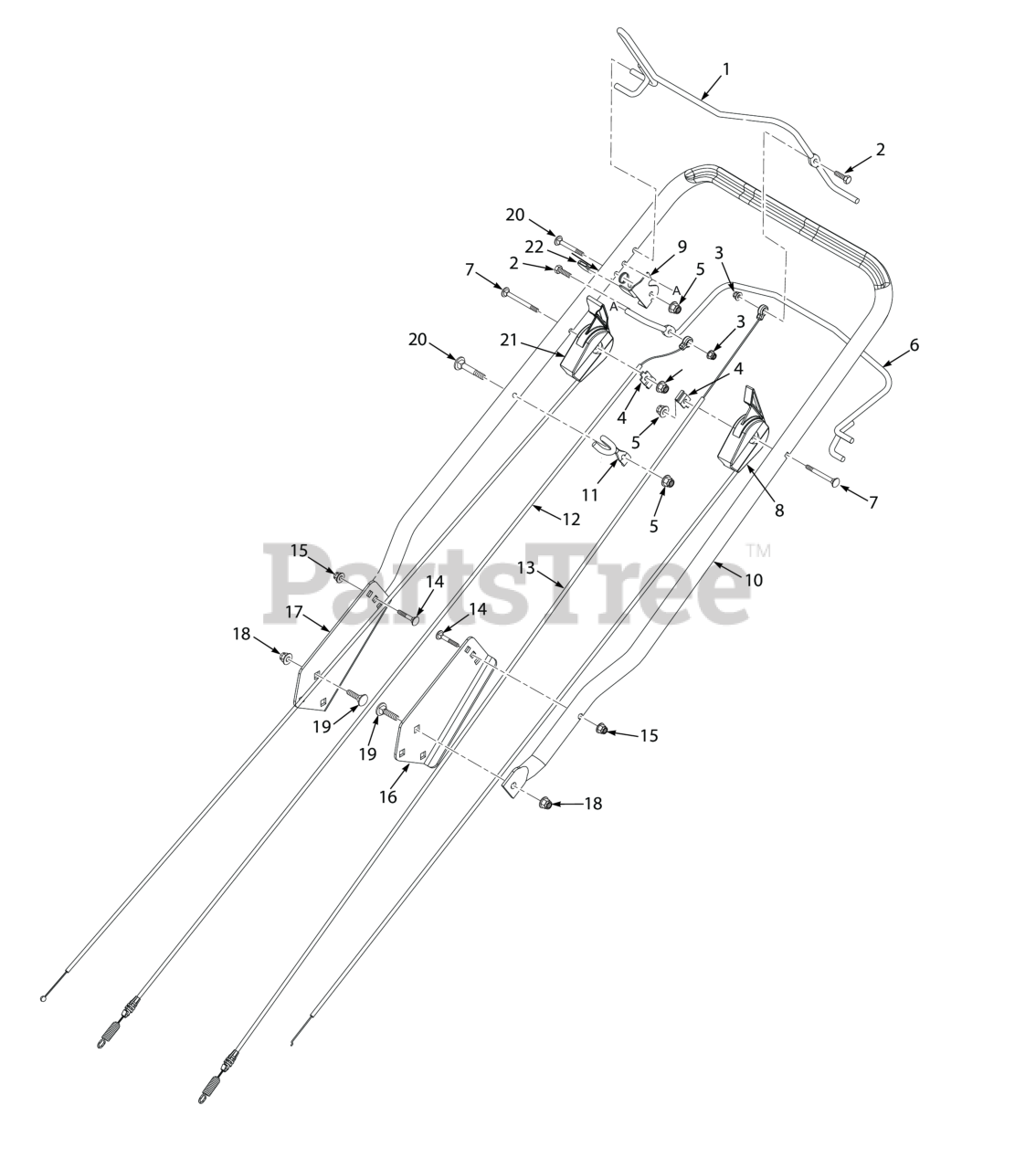

HANDLE BAR COMPONENTS Parts Diagram

  • Title

1

Scag 453387

Top Bail Weldment

$31.99

$

Usually ships in 2-12 days

0

2

Scag 04009-12

Bolt, Shoulder 5/16 x 3/8"

$2.49

$

Usually ships in 2-12 days

0

3

Scag 04021-02

Bolt, Hex Hd. 1/2-13 x 9-1/2"

$0.99

$

In Stock, Qty 5

0

4

Scag 429122

Clamp, Cable

$1.49

$

Usually ships in 2-12 days

0

5

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

6

Scag 453388

Bottom Bail Weldment

$31.99

$

Usually ships in 2-12 days

0

7

Scag 04003-51

Bolt, Carriage 1/4-20 x 2"

$0.99

$

Usually ships in 2-12 days

0

8

Scag 487316

Cable, Throttle

$36.99

$

Usually ships in 2-12 days

0

9

Scag 429149

Latch, PTO

$9.99

$

Usually ships in 0 days

0

10

Scag 487263

Handle

$176.99

$

Usually ships in 2-12 days

0

11

Scag 44201

Guide, Pull Rope

$7.49

$

Usually ships in 2-12 days

0

12

Scag 487313

Cable, Clutch

$27.99

$

Usually ships in 2-12 days

0

13

Scag 487314

Cable, Drive

$28.99

$

Usually ships in 2-12 days

0

14

Scag 04003-15

CARR BOLT, 5/16-18 X 1.75

$4.99

$

In Stock, Qty 8

0

15

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 17

0

16

Scag 429037

Handle Support Bracket, LH

$18.99

$

Usually ships in 2-12 days

0

17

Scag 429084

Handle Support Bracket, RH

$20.99

$

Usually ships in 2-12 days

0

18

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

19

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

20

Scag 04003-56

Bolt, Carriage 1/4-20 x 1-3/4"

$0.99

$

Usually ships in 0 days

0

21

Scag 487315

Cable, Speed Select

$37.99

$

Usually ships in 2-12 days

0

22

Scag 487155

Grip, PTO Latch

$0.99

$

Usually ships in 0 days

0
