SEVZ-52H - Scag EVZ 52" Zero-Turn Mower, Electric (SN: T4700001 - T4799999) SEVZ SHEET METAL COMPONENTS Parts Diagram

EVZ 52" Zero-Turn Mower, Electric

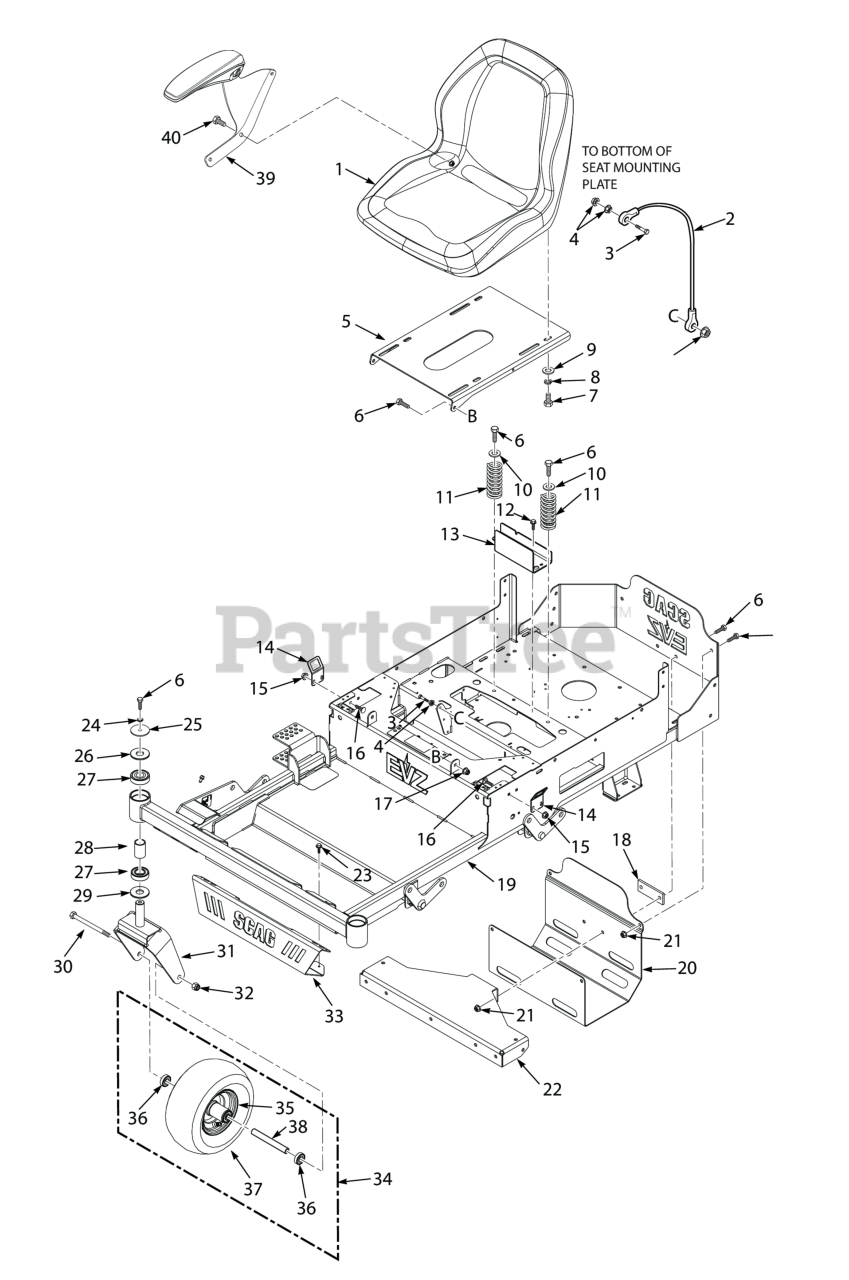

SEVZ SHEET METAL COMPONENTS Parts Diagram

  • Title

1

Scag 486602

Seat, SZL w/Armrests

$560.99

$

Usually ships in 2-12 days

0

2

Scag 483559

Cable, Seat Stop

$8.99

$

Usually ships in 2-12 days

0

3

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 5

0

4

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

5

Scag 463384

Seat-Plate W/Decal

$113.99

$

Usually ships in 2-12 days

0

6

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 6

0

7

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

8

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

9

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

10

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

11

Scag 483372

Spring, Seat

$12.99

$

Usually ships in 2-12 days

0

12

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

0

13

Scag 426768

Channel, Hose

$9.49

$

Usually ships in 2-12 days

0

14

Scag 426727

Bracket, Switch

$10.99

$

Usually ships in 2-12 days

0

15

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

16

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

17

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 428187

Plate, Spacer

$8.99

$

Usually ships in 2-12 days

0

19

Scag 463470

Mainframe w/Decals

$

$

Currently unavailable

20

Scag 428132

Skid Plate, SZL

$77.99

$

Usually ships in 2-12 days

0

21

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

22

Scag 428823

Support, Battery

$61.99

$

Usually ships in 0 days

0

23

Scag 04011-29

Screw, 1/4-20 x .375"

$0.99

$

In Stock, Qty 5

0

24

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 8

0

25

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25" x .1875

$3.49

$

In Stock, Qty 8

0

26

Scag 04040-11

Flatwasher, 7/16" (.500 x 1.25 x .083")

$0.99

$

In Stock, Qty 13

0

27

Scag 483466

Bearing

$8.99

$

Usually ships in 2-12 days

0

28

Scag 43736

Spacer, Caster Bearing

$6.49

$

In Stock, only 2 left!

0

29

Scag 424636

Spacer, Yoke

$4.49

$

Usually ships in 2-12 days

0

30

Scag 04001-134

Bolt, Hex Head 1/2-13 x 7-1/2" (48"/52")

$5.49

$

In Stock, Qty 20+

0

31

Scag 463444

Caster Yoke Assembly (incl. 30, 32, & 34)

$215.99

$

Usually ships in 2-12 days

0

Scag 453282

Yoke, Caster Wheel

$88.99

$

Usually ships in 2-12 days

0

32

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

33

Scag 427868

Bumper. Front

$41.99

$

Usually ships in 2-12 days

0

34

Scag 485939

CASTER WHEEL ASSY, 11.00 X 6.00-5

$125.99

$

Usually ships in 2-12 days

0

35

Scag 485940

RIM ASSY, 5 X 3 W/5.625 LG HUB

$109.99

$

Usually ships in 2-12 days

0

36

Scag 485243

Bearing

$12.99

$

In Stock, Qty 6

0

37

Scag 485941

TIRE, 11 X 6.00-5

$53.99

$

Usually ships in 2-12 days

0

38

Scag 431052

SPACER, WHEEL BEARING

$16.99

$

In Stock, only 1 left!

0

39

Scag 486633

Armrest, RH (48H, 52H, 61H)

$134.99

$

Usually ships in 2-12 days

0

Scag 486634

Armrest, LH (48H, 52H, 61H)

$134.99

$

Usually ships in 2-12 days

0

40

Scag 04011-32

SCR,HHSCR, 1/4-14 X1 TYPA THRD FRMNG

$4.99

$

Usually ships in 2-12 days

0
