SEVZ-52H - Scag EVZ 52" Zero-Turn Mower, Electric (SN: T4700001 - T4799999) SEVZ ELECTRICAL SYSTEM COMPONENTS Parts Diagram

EVZ 52" Zero-Turn Mower, Electric

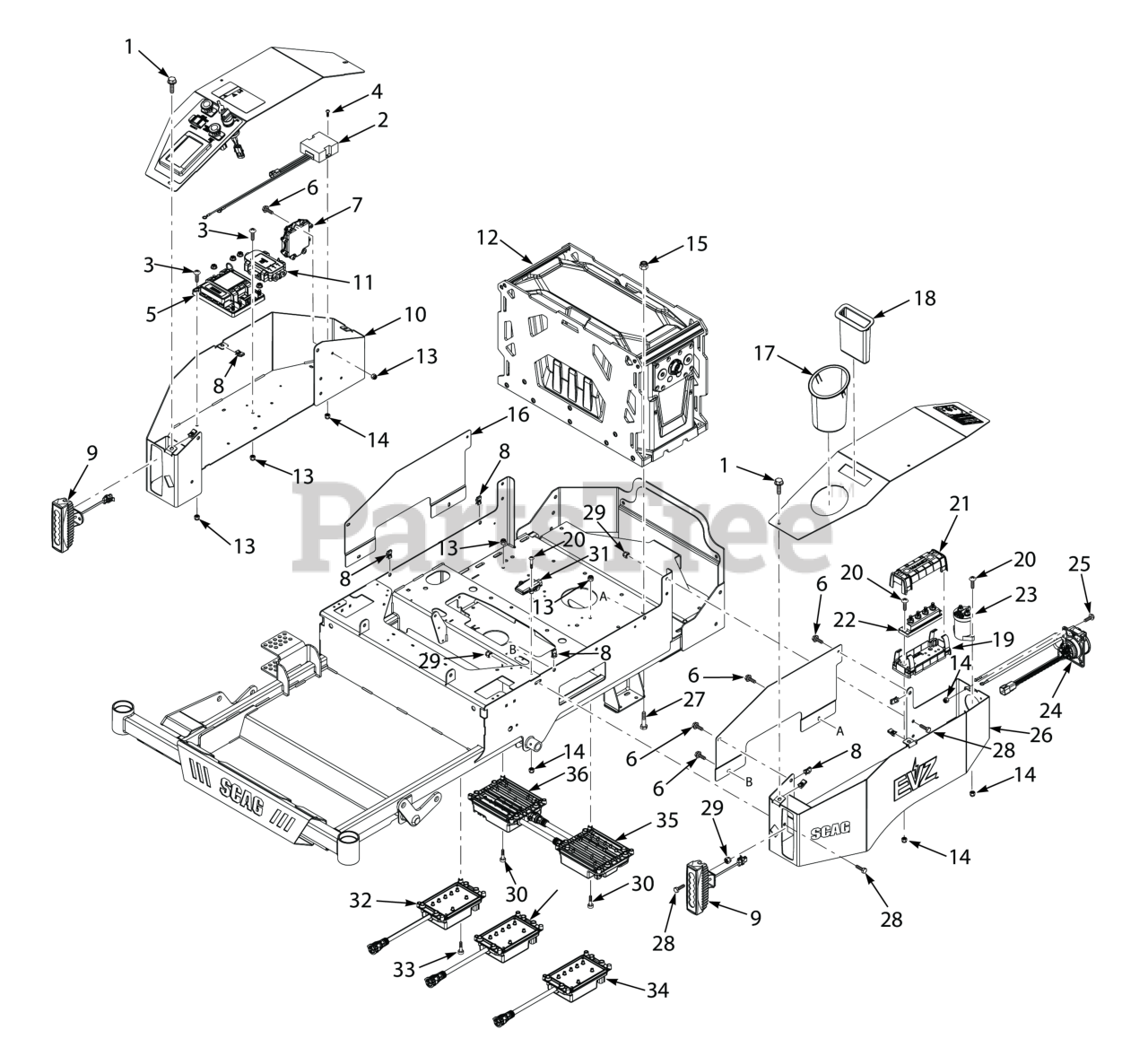

SEVZ ELECTRICAL SYSTEM COMPONENTS Parts Diagram

  • Title

1

Scag 04013-04

Bolt, Hex Head Serrated Flange 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 12

0

2

Scag 487190

Converter, 48V to 12V

$214.99

$

Usually ships in 0 days

0

3

Scag 04010-20

SCR, 1/4-20 X 1.0 PHIL RD HD

$1.49

$

Usually ships in 2-12 days

0

4

Scag 04010-50

Screw, #8-32 x .75"

$0.99

$

Usually ships in 0 days

0

5

Scag 487094

Bus Bar

$458.99

$

Usually ships in 0 days

0

6

Scag 04013-06

Capscrew, 1/4-20 x 1"

$0.99

$

Usually ships in 0 days

0

7

Scag 487054

Interface Module

$466.99

$

Usually ships in 0 days

0

8

Scag 04110-01

Bolt, Hex Head 3/8-16 x 1"

$1.49

$

In Stock, Qty 18

0

9

Scag 487187

Worklight, 48V LED

$140.99

$

Usually ships in 0 days

0

10

Scag 453320

Console, RH

$204.99

$

Usually ships in 0 days

0

11

Scag 487099

Fuse Module

$210.99

$

Usually ships in 0 days

0

12

Scag 487044

Battery, 5 KW Vanguard

Note: Available from battery manufacturer

$

$

Currently unavailable

13

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

14

Scag 04021-01

HEX NUT, ELASTIC STOP LOCK # 10-32

$0.99

$

In Stock, Qty 10

0

15

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

16

Scag 428801

Cover, Side RH

$105.99

$

Usually ships in 0 days

0

17

Scag 487139

Cup Holder

$11.99

$

Usually ships in 0 days

0

18

Scag 487140

Phone Holder

$9.49

$

Usually ships in 0 days

0

19

Scag 493857

Bus Bar Assy, 4 Post (incl. 39 & 40)

$519.99

$

Usually ships in 0 days

0

20

Scag 04010-31

Screw, #10-32 x 1.12" Phillips Head

$0.99

$

Usually ships in 0 days

0

21

Scag 487095

Enclosure, Bus Bar

$186.99

$

Usually ships in 0 days

0

22

Scag 487097

Bus Bar, 4 Post

$333.99

$

Usually ships in 0 days

0

23

Scag 487112

Relay

$295.99

$

Usually ships in 0 days

0

24

Scag 487049

Receptacle, Vehicle Plug

$314.99

$

Usually ships in 0 days

0

25

Scag 04010-25

Screw, #10-32 x 3/4"

$0.99

$

In Stock, Qty 5

0

26

Scag 453319

Console w/Decals, LH

$205.99

$

Usually ships in 0 days

0

27

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

29

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

30

Scag 04015-44

Cap Screw, Socket Head 1/4-20 x 1"

$0.99

$

Usually ships in 0 days

0

31

Scag 487051

Blue Tooth, Smart Tec

$192.99

$

Usually ships in 0 days

0

32

Scag 487065

Deck Controller, RH

$751.99

$

Usually ships in 0 days

0

33

Scag 487064

Deck Controller, Center

$751.99

$

Usually ships in 0 days

0

34

Scag 487052

Deck Controller, LH

$751.99

$

Usually ships in 0 days

0

35

Scag 487056

Drive Controller, LH

$994.99

$

Usually ships in 0 days

0

36

Scag 487066

Drive Controller, RH

$994.99

$

Usually ships in 0 days

0
