SEVZ-52H - Scag EVZ 52" Zero-Turn Mower, Electric (SN: T4700001 - T4799999) SEVZ CUTTER DECK CONTROLS Parts Diagram

EVZ 52" Zero-Turn Mower, Electric

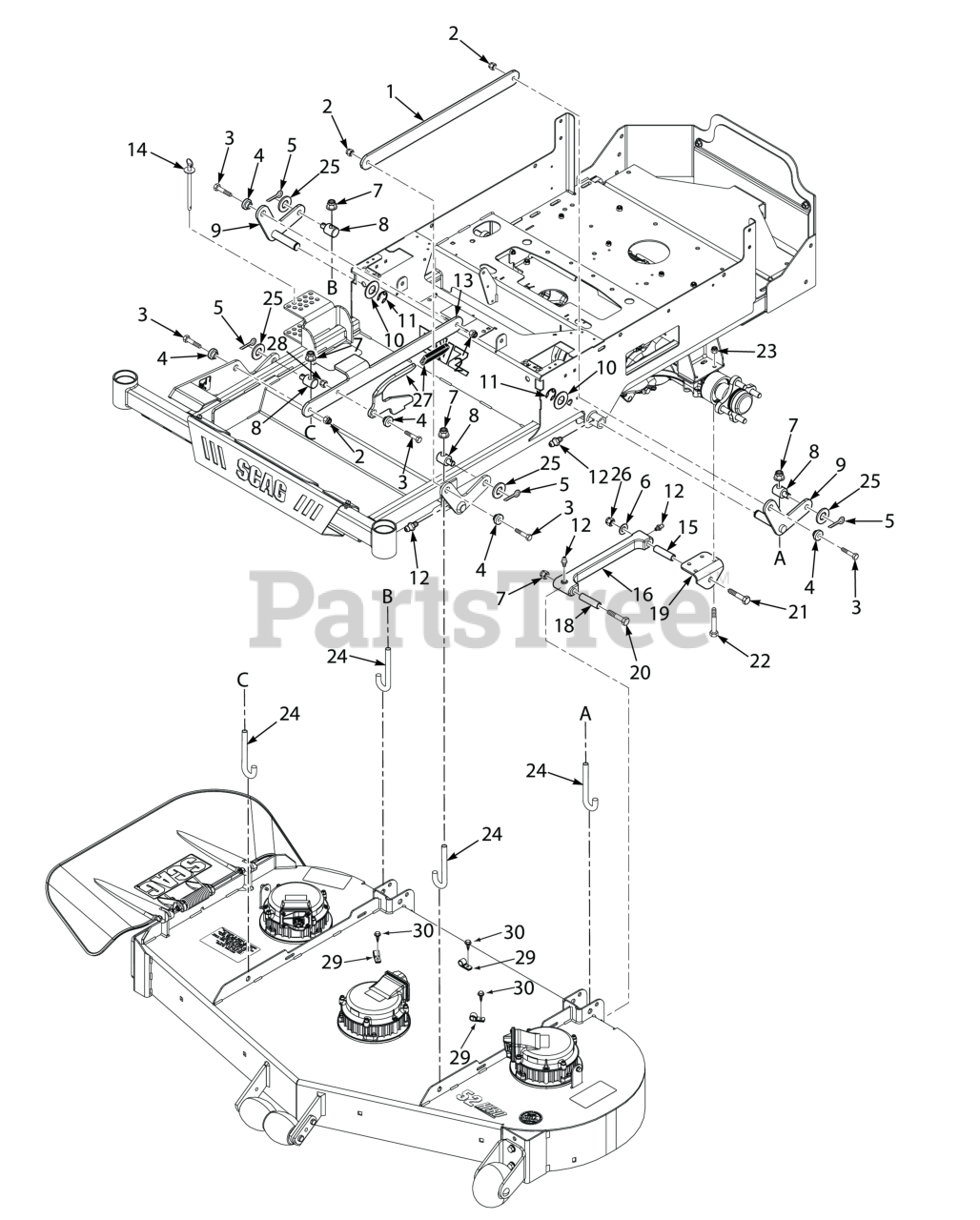

SEVZ CUTTER DECK CONTROLS Parts Diagram

  • Title

1

Scag 428142

Link, Deck Lift - LH

$15.99

$

Usually ships in 2-12 days

0

2

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

3

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI

$0.99

$

In Stock, Qty 14

0

4

Scag 43086

BUSHING, SPEED ADJUSTMENT LEVER

$6.49

$

Usually ships in 2-12 days

0

5

Scag 04061-07

Pin, Cotter 3/16 x 1.0"

$1.49

$

In Stock, Qty 9

0

6

Scag 04040-07

Flatwasher, 1/2 - .531 x 1.062 x .095

$0.99

$

In Stock, Qty 5

0

7

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

8

Scag 431072

Joint, Swivel

$13.99

$

In Stock, only 3 left!

0

9

Scag 452962

Lift Bellcrank Weldment

$43.99

$

Usually ships in 2-12 days

0

10

Scag 04041-08

Flatwasher, 3/4 (.766 x 1.250 x .060)

$0.99

$

In Stock, Qty 20+

0

11

Scag 04050-02

RETAINING RING, 3/4" EXTERNAL "E"

$0.99

$

In Stock, Qty 7

0

12

Scag 48114-04

GREASE FITTING, STR. 1/4-28 SELF TAP.

$1.49

$

In Stock, Qty 20+

0

13

Scag 428143

Link, Deck Lift - RH

$31.99

$

Usually ships in 2-12 days

0

14

Scag 485351

Pin Assembly, Deck Height

$8.99

$

Usually ships in 2-12 days

0

15

Scag 43986

Spacer, Pusharm - Axle

$4.49

$

Usually ships in 2-12 days

0

16

Scag 462769

Pusharm Assembly, LH

$76.99

$

Usually ships in 2-12 days

0

17

Scag 462770

Pusharm Assembly, RH

$59.99

$

Usually ships in 2-12 days

0

18

Scag 43985

Spacer, Pusharm - Deck

$4.99

$

Usually ships in 2-12 days

0

19

Scag 428843

Bracket, Pusharm

$12.99

$

Usually ships in 0 days

0

20

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 4 left!

0

21

Scag 04001-52

Bolt, Hex Hd. 1/2-13 x 2-1/2" (lower)

$1.99

$

Usually ships in 2-12 days

0

22

Scag 04001-49

Bolt, Hex Head 5/16-18 x 3.00"

$0.99

$

In Stock, Qty 9

0

23

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 44220

Rod, Deck Lift

$3.99

$

In Stock, only 4 left!

0

25

Scag 04040-09

Flatwasher, 5/8" (.656 x 1.312 x .095")

$0.99

$

In Stock, Qty 12

0

26

Scag 04021-19

Locknut, Hex 1/2-13 Center Lock

$0.99

$

In Stock, Qty 10

0

27

Scag 462887

Lever Assembly (incl. Grip)

$34.99

$

Usually ships in 2-12 days

0

Scag 485718

Grip, Deck Transport Lock

$1.99

$

Usually ships in 2-12 days

0

28

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

29

Scag 48030-09

Clamp, Cable 1/2" I.D.

$1.49

$

In Stock, Qty 6

0

30

Scag 04011-14

Screw, Self-Tapping 1/4-20 x 3/4

$0.99

$

In Stock, Qty 13

0
