SEVZ-52H - Scag EVZ 52" Zero-Turn Mower, Electric (SN: T4700001 - T4799999) SEVZ CUTTER DECK Parts Diagram

EVZ 52" Zero-Turn Mower, Electric

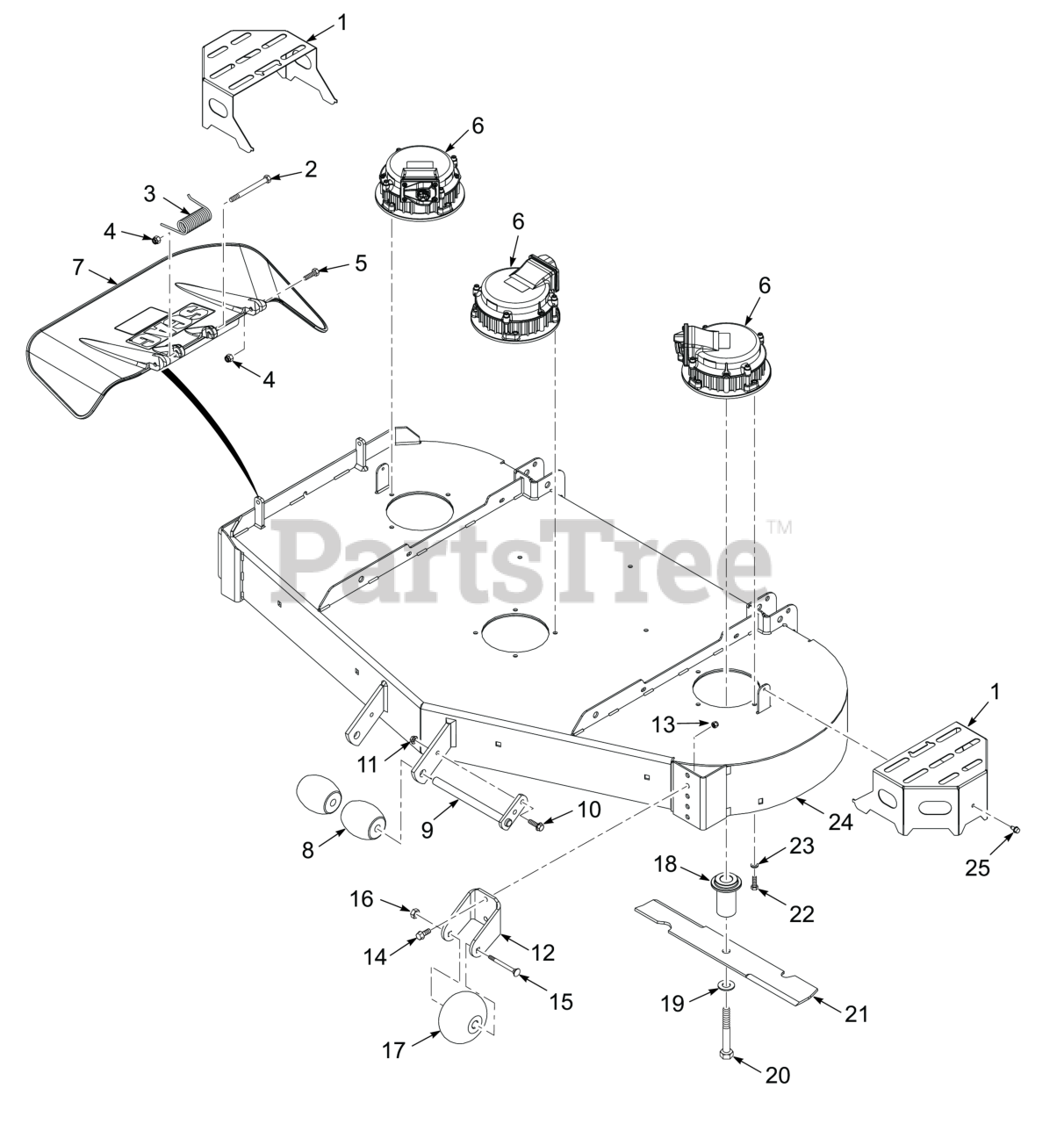

SEVZ CUTTER DECK Parts Diagram

  • Title
1

Scag 428890

Cover, Deck Motor

$59.99

$

Usually ships in 0 days

0

2

Scag 04001-154

Bolt, 5/16-18 x 4-3/4" Hex Head

$2.99

$

In Stock, Qty 20+

0

3

Scag 482245

Spring, Discharge Chute

$11.99

$

In Stock, Qty 5

0

4

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

5

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

0

6

Scag 487053

Deck Motor

$941.99

$

Usually ships in 2-12 days

0

7

Scag 462032

Discharge Chute Assy. SFZ52

$73.99

$

Usually ships in 2-12 days

0

8

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

0

9

Scag 451926

Shaft Weldment, Guide Roller

$26.99

$

In Stock, only 1 left!

0

10

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

11

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

12

Scag 427865

Bracket, Anti-Scalp, (Black)

$21.99

$

In Stock, only 1 left!

0

13

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

14

Scag 04017-27

Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd

$1.49

$

In Stock, Qty 20+

0

15

Scag 04003-26

Bolt, Hex Head 3/8-16 x 3-1/2"

$1.99

$

In Stock, Qty 20+

0

16

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

17

Scag 481632

Bolt, Carriage 3/8-16 x 4"

$27.99

$

In Stock, Qty 20+

0

18

Scag 431168

Blade Driver

$91.99

$

Usually ships in 0 days

0

19

Scag 04043-08

Washer, Flat, 1/2-.562 x 1.375 x .109 HD

$1.49

$

In Stock, Qty 9

0

20

Scag 04001-87

Bolt, Hex Head 1/2-13 x 4" (lower)

$2.99

$

In Stock, Qty 10

0

21

Scag 487198

Cutter Blade, EVZ 18"

$24.99

$

Usually ships in 2-12 days

0

22

Scag 04001-10

Bolt, 5/16 - 18 x 1 - 1/4" Hex Head

$0.99

$

In Stock, Qty 14

0

23

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

24

Scag 463471

Cutter Deck w/Decals

$

$

Currently unavailable

25

Scag 04011-29

Screw, 1/4-20 x .375"

$0.99

$

In Stock, Qty 5

0
