SEVZ-48H - Scag EVZ 48" Zero-Turn Mower, Electric (SN: T4200001 - T4299999) SEVZ DRIVE SYSTEM COMPONENTS Parts Diagram

EVZ 48" Zero-Turn Mower, Electric

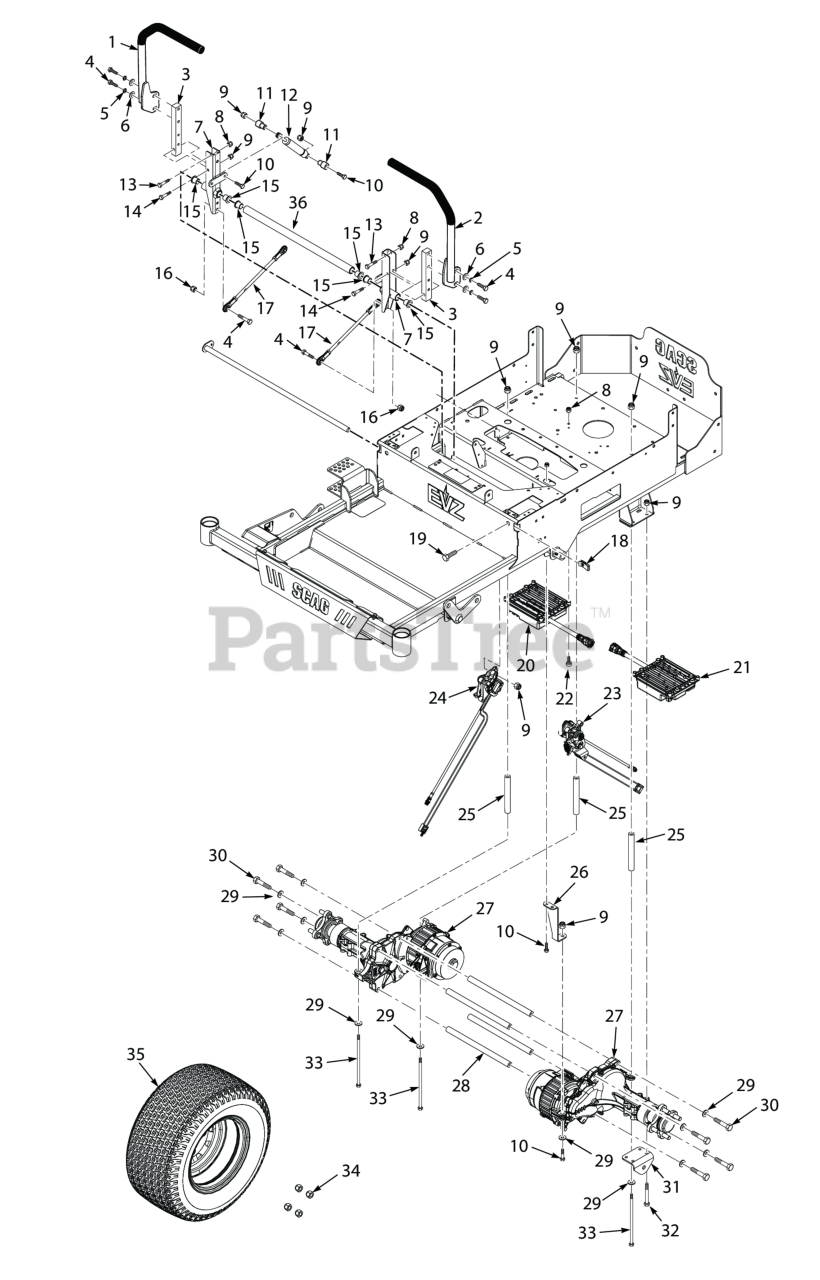

SEVZ DRIVE SYSTEM COMPONENTS Parts Diagram

  • Title

1

Scag 462741

Handlebar w/Grip

$72.99

$

Usually ships in 2-12 days

0

Scag 484376

Grip, Control Handle

$10.99

$

Usually ships in 2-12 days

0

2

Scag 462740

Handlebar w/Grip

$68.99

$

Usually ships in 2-12 days

0

Scag 484376

Grip, Control Handle

$10.99

$

Usually ships in 2-12 days

0

3

Scag 422372

Bar, Control Lever

$30.99

$

In Stock, only 2 left!

0

4

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI

$0.99

$

In Stock, Qty 11

0

5

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 7

0

6

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

7

Scag 462797

Control Arm Assembly

$

$

Not available

8

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

9

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

10

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 6

0

11

Scag 43602

Spacer, Pump Dampener

$2.99

$

In Stock, only 2 left!

0

12

Scag 484193

Damper, Steering

$72.99

$

In Stock, only 2 left!

0

13

Scag 04001-02

Bolt, Hex Head, 1/4-20 x 1-1/4"

$0.99

$

Usually ships in 2-12 days

0

14

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

0

15

Scag 483453-05

Bearing

$2.49

$

Usually ships in 2-12 days

0

16

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 485312

Linkage, Pump

$40.99

$

Usually ships in 2-12 days

0

18

Scag 04110-04

U-Nut, 3/8-16

$5.99

$

In Stock, Qty 7

0

19

Scag 04107-08

Bolt, Hex Head 3/8-16 x 3.0

$2.49

$

Usually ships in 2-12 days

0

20

Scag 487066

Drive Controller, RH

$994.99

$

Usually ships in 0 days

0

21

Scag 487056

Drive Controller, LH

$994.99

$

Usually ships in 0 days

0

22

Scag 04015-44

Cap Screw, Socket Head 1/4-20 x 1"

$0.99

$

Usually ships in 0 days

0

23

Scag 487201

RTN Assembly, LH

$630.99

$

Usually ships in 0 days

0

24

Scag 487200

RTN Assembly, RH

$630.99

$

Usually ships in 0 days

0

25

Scag 431149

Spacer, Axle

$

$

Currently unavailable

26

Scag 428795

Support, Axle

$16.99

$

Usually ships in 0 days

0

27

Scag 487055

Transaxle, ZT2800e

$

$

Currently unavailable

28

Scag 43701

Spacer, Axles

$26.99

$

In Stock, only 1 left!

0

29

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

30

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

31

Scag 428843

Bracket, Pusharm

$12.99

$

Usually ships in 0 days

0

32

Scag 04001-49

Bolt, Hex Head 5/16-18 x 3.00"

$0.99

$

In Stock, Qty 9

0

33

Scag 04001-134

Bolt, Hex Head 1/2-13 x 7-1/2" (48"/52")

$5.49

$

In Stock, Qty 20+

0

34

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.49

$

In Stock, Qty 20+

0

35

Scag 485948

WHEEL ASSY, 20 X 10-10

$334.99

$

Usually ships in 2-12 days

0

Scag 485949

RIM W/ VALVE STEM

$137.99

$

Usually ships in 2-12 days

0

Scag 485950

TIRE, 20 X 10.0-10

$223.99

$

Usually ships in 2-12 days

0

36

Scag 431154

Tube, Brake

$129.99

$

Usually ships in 0 days

0
