Series 19 (7800551) - Snapper Pro Series 19 Commercial Trim 21" Walk-Behind Mower, 6hp Kawasaki Handles & Controls - Lower End Parts Diagram

Series 19 Commercial Trim 21" Walk-Behind Mower, 6hp Kawasaki

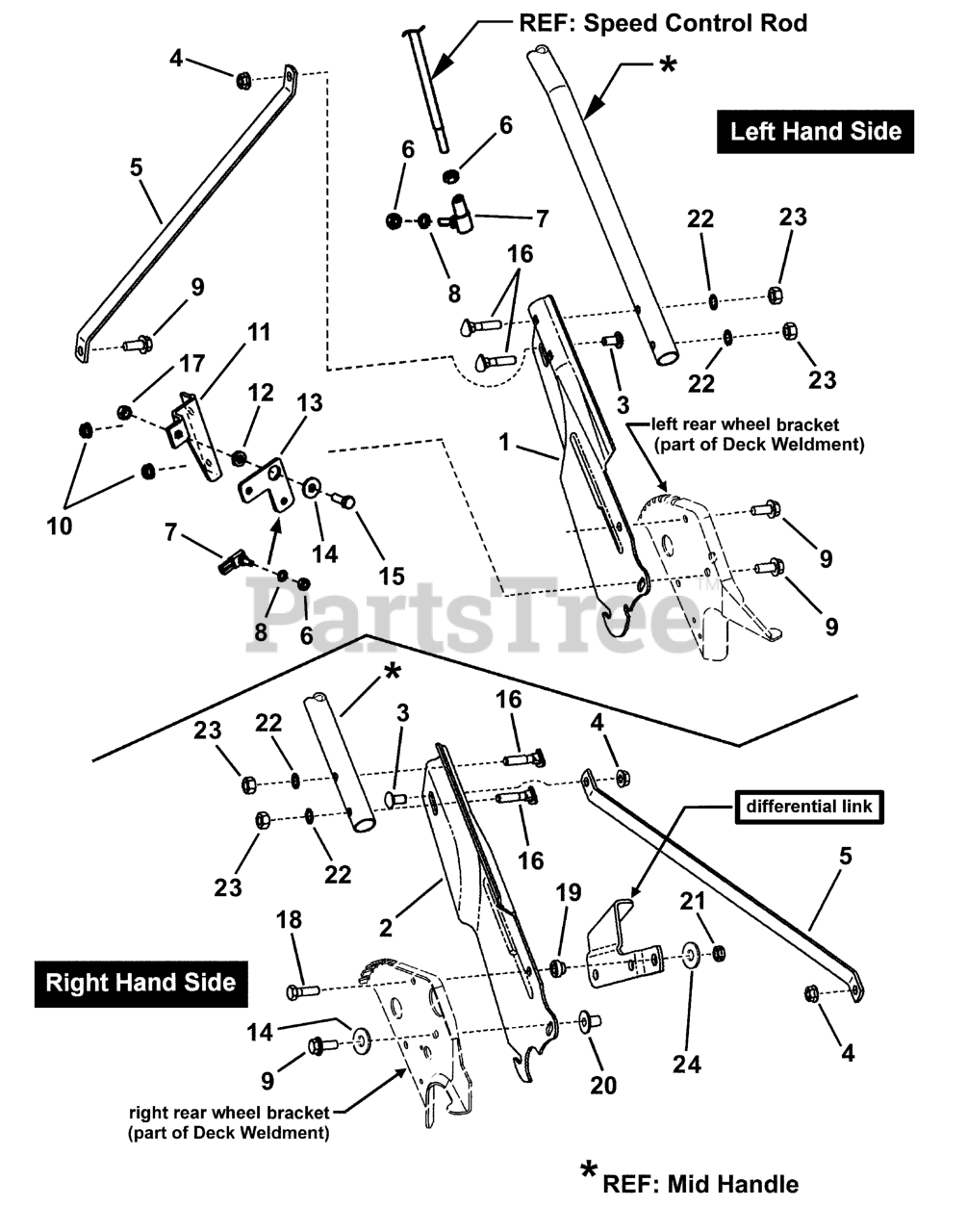

Handles & Controls - Lower End Parts Diagram

  • Title

1

Snapper Pro 7033985

HANDLE, Lower LH (Adjustable)
(Superseded to 7033985AYP)

$43.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7033986

HANDLE, Lower RH (Adjustable)
(Superseded to 7033986AYP)

$36.99

$

In Stock, only 4 left!

0

3

Snapper Pro 7091026

BOLT, 5/16-18 x 5/8" Short Neck Carriage GR 5

$

$

Currently unavailable

4

Snapper Pro 7091601

NUT, 5/16-18 Hex Flange Lock GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

5

Snapper Pro 7046707

BRACE, Handle
(Superseded to 7046707YP)

$34.99

$

In Stock, only 2 left!

0

6

Snapper Pro 7090095

HN, 1/4F GR5 YZ
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 7015753

BALL JOINT, 1/4-28
(Superseded to 7015753YP)

$10.99

$

In Stock, only 1 left!

0

8

Snapper Pro 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 6

0

9

Snapper Pro 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock GR 5

$2.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7090585

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Snapper Pro 7073822

BRACKET, Bell Crank
(Superseded to 7073822YP)

$14.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 7013849

SPACER, .33 x .63 x .156

$

$

Not available

13

Snapper Pro 7073913

BELL CRANK
(Superseded to 7073913YP)

$24.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7091130

WASHER, .33 x .88 x .09 Flat
(Superseded to 7091130SM)

$3.99

$

In Stock, only 3 left!

0

15

Snapper Pro 7091904

SCREW, 5/16-18 x 7/8" Hex Head Cap, GR 5

$

$

Not available

16

Snapper Pro 7091190

BOLT, 5/16-18 x 1-1/2" Curved Head
(Superseded to 704063)

$5.49

$

In Stock, Qty 5

0

17

Snapper Pro 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

18

Snapper Pro 7090238

SCREW, 5/16-24 x 1" Hex Head Cap GR5

$

$

Not available

19

Snapper Pro 7012114

BUSHING, Differential
(Superseded to 7012114SM)

$4.99

$

In Stock, Qty 9

0

20

Snapper Pro 7090895

TEE-NUT, 5/16-18
(Superseded to 7090895YP)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 7091606

NUT, 5/16-24 Hex Center Lock, GR 5

$

$

Not available

22

Snapper Pro 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

23

Snapper Pro 7091511

NUT, 5/16-18 Hex, GR 5
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

24

Snapper Pro 7090188

WASHER, 3/8" Flat

$

$

Not available
