Series 19 (7800550) - Snapper Pro Series 19 Commercial Trim 21" Walk-Behind Mower, 6hp Kawasaki Side Chute Adapter Parts Diagram

Series 19 Commercial Trim 21" Walk-Behind Mower, 6hp Kawasaki

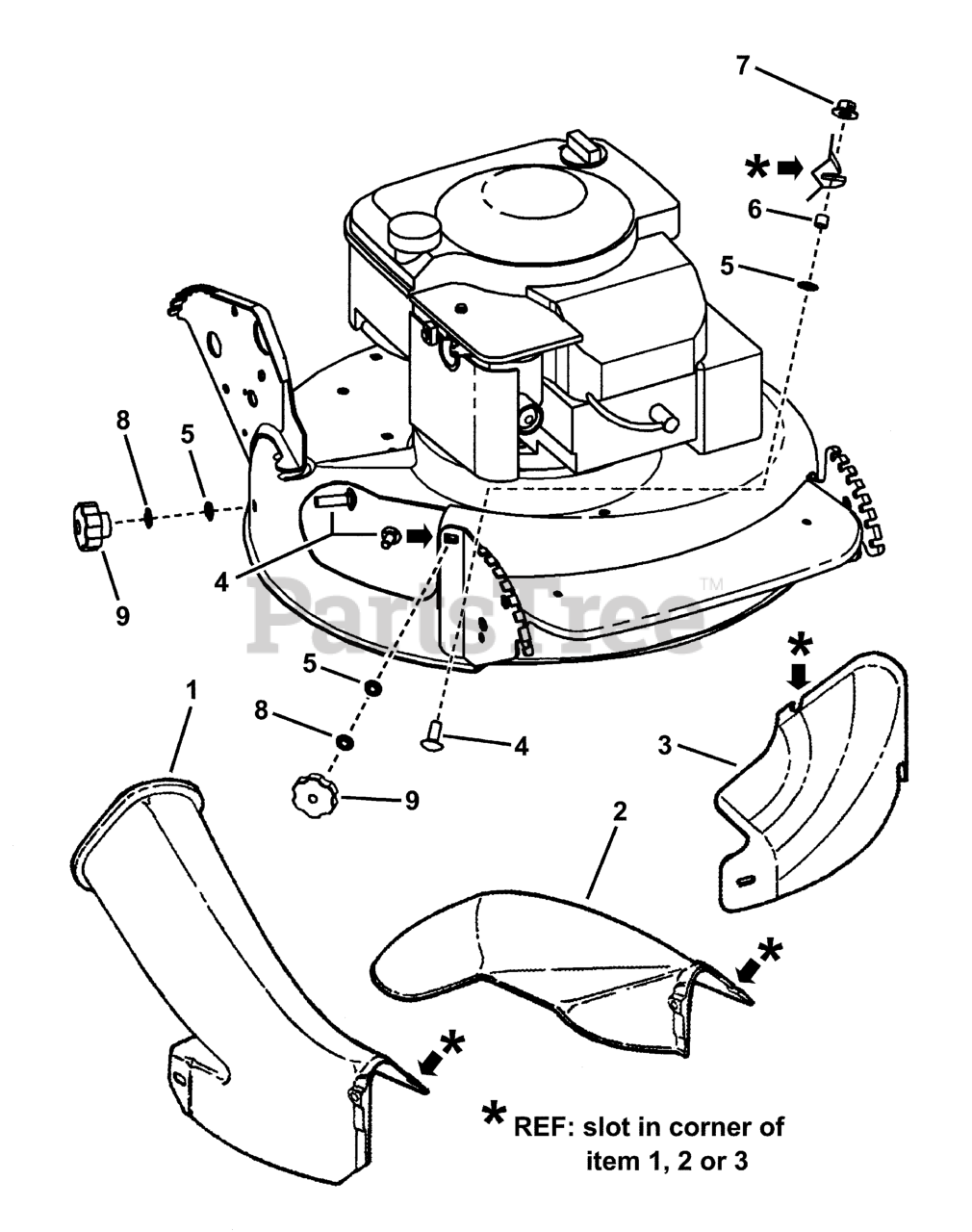

Side Chute Adapter Parts Diagram

  • Title
1

Snapper Pro 7047081

ADAPTER, Grass Bag
(Superseded to 7600117YP)

$142.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7042965

CHUTE, 21" Side
(Superseded to 7042965YP)

$53.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7029149

COVER, 21" Deck
(Superseded to 7029149YP)

$33.99

$

In Stock, Qty 20+

0

4

Snapper Pro 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage GR 5

$

$

Not available

5

Snapper Pro 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

6

Snapper Pro 7024340

SPACER, .316 I.D. x .375 O.D. x .310 thick
(Superseded to 7024340SM)

$4.99

$

In Stock, only 4 left!

0

7

Snapper Pro 7090951

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

8

Snapper Pro 7090189

WASHER, 5/16" Internal/External Tooth Lock

$4.49

$

In Stock, only 1 left!

0

9

Snapper Pro 7100516

KNOB, Fluted, 5/16-18 x .633
(Superseded to 7100516YP)

$10.99

$

In Stock, Qty 5

0
