Series 19 (7800550) - Snapper Pro Series 19 Commercial Trim 21" Walk-Behind Mower, 6hp Kawasaki Grass Bag & Accessories Parts Diagram

Series 19 Commercial Trim 21" Walk-Behind Mower, 6hp Kawasaki

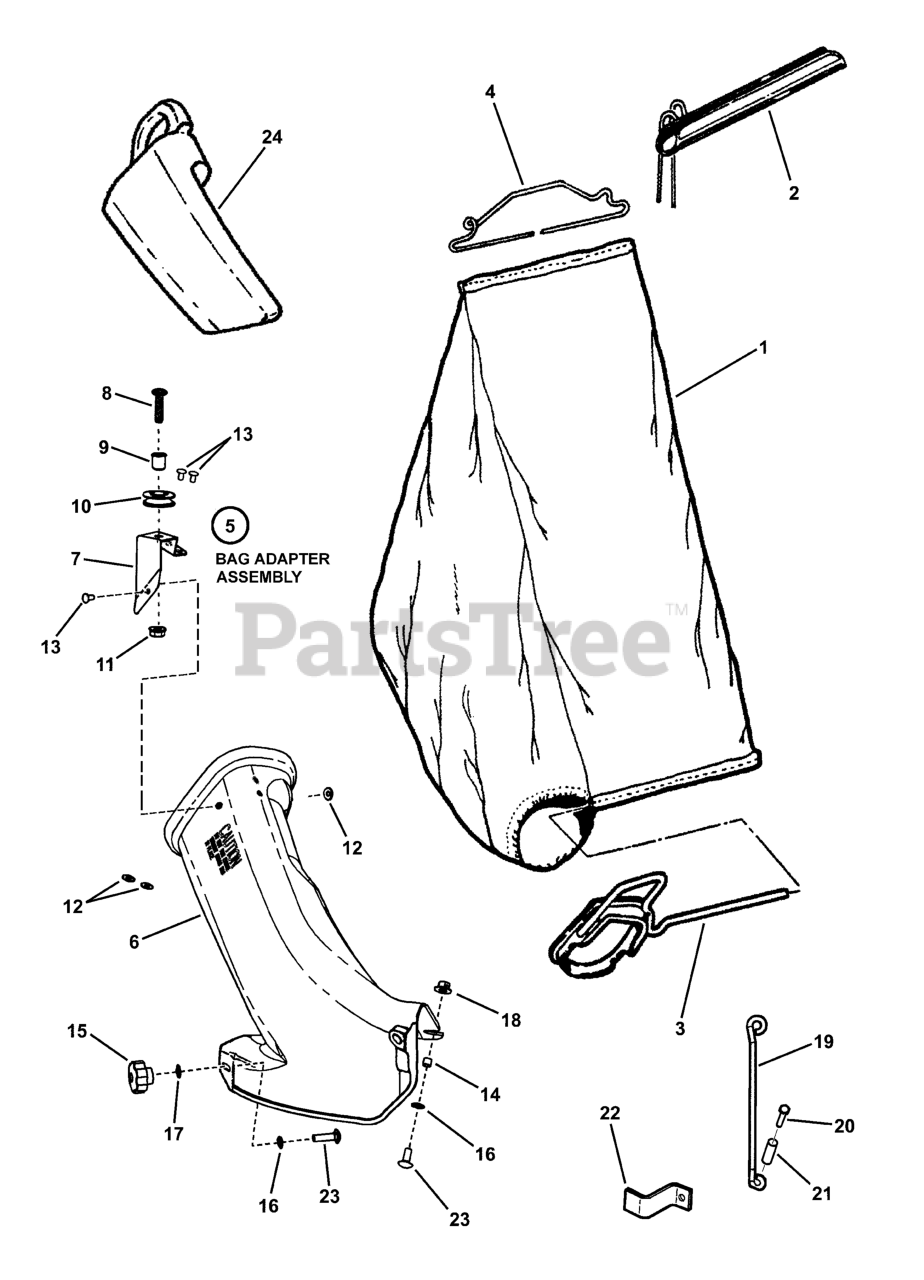

Grass Bag & Accessories Parts Diagram

  • Title

Snapper Pro 7501482

ASSEMBLY, Grass Bag (Slider type)
(Superseded to 7600176YP)

Note: Includes items 1 through 4

$

$

Not available

1

Snapper Pro 7103205

GRASS BAG, ( Res. Slider w/o graphics)
(Superseded to 7103205YP)

$

$

Not available

2

Snapper Pro 7050711

ASSEMBLY, Slider
(Superseded to 7050711YP)

$16.99

$

In Stock, Qty 8

0

3

Snapper Pro 7042489

CONNECTOR, Grass Bag
(Superseded to 7042489AYP)

$44.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7019247

WIRE, Bag Connector (12" Wide)
(Superseded to 7019247YP)

$22.99

$

In Stock, only 2 left!

0

5

Snapper Pro 7058037

ASSY, Grass Bag Adapter (Incl. items 6 thru 13)

Note: used on SPCP216019KWV & SPCP215520HV

$

$

Not available

6

Snapper Pro 7047081

ADAPTER, Grass Bag
(Superseded to 7600117YP)

$142.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7047082

BRACKET, Rope Pulley
(Superseded to 7047082AYP)

$9.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 7091984

SCREW, 5/16-18 x 1-1/4" Pan Head Machine
(Superseded to 7091984YP)

$5.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 7012306

BUSHING, Flange (Powdered Metal)

$5.99

$

In Stock, Qty 13

0

10

Snapper Pro 7024228

PULLEY, Plastic
(Superseded to 7024228SM)

$4.99

$

In Stock, only 4 left!

0

11

Snapper Pro 7091070

NUT, 5/16-18 Hex Flange Lock GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Snapper Pro 7072107

WASHER, 15/32" Flat
(Superseded to 7072107YP)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7013860

RIVET, 3/16 x .344
(Superseded to 704032)

$4.49

$

In Stock, only 2 left!

0

14

Snapper Pro 7024340

SPACER, .316 I.D. x .375 O.D. x .310 thick
(Superseded to 7024340SM)

$4.99

$

In Stock, only 4 left!

0

15

Snapper Pro 7100516

KNOB, Fluted, 5/16-18 x .633
(Superseded to 7100516YP)

$10.99

$

In Stock, Qty 5

0

16

Snapper Pro 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

17

Snapper Pro 7091076

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

18

Snapper Pro 7090951

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

19

Snapper Pro 7043327

BRACE, Bag Adapter, KWV
(Superseded to 7043327YP)

$36.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 7078102

SCREW, M6 x 1.0 x 30MM Hex Head Cap
(Superseded to 7078102YP)

$3.99

$

In Stock, only 1 left!

0

21

Snapper Pro 7078101

SLEEVE, .237/.242 I.D. x .3135/.3185 O.D. x .748
(Superseded to 7078101YP)

$7.99

$

In Stock, only 1 left!

0

22

Snapper Pro 7075306

STANDOFF
(Superseded to 7075306YP)

Note: used on SPCP215520HV

$11.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage GR 5

$

$

Not available

24

Snapper Pro 7016814

PLUG, Chute Adapter
(Superseded to 7016814YP)

$49.99

$

In Stock, only 3 left!

0

Snapper Pro 7060440

KIT, Snapperizer (21" Hi-Vac Steel Deck Models) (other accessories not shown)

$

$

Not available

Snapper Pro 7063041

KIT, Snapperizer (21" F & M Outlip Steel Deck Models) (other accessories not shown)
(Superseded to 7063041YP)

$265.99

$

Usually ships in 2-12 days

0

Snapper Pro 7061200

KIT, Recycling Cover (other accessories not shown)
(Superseded to 7061200YP)

Note: for 4HP & above engines

$96.99

$

Usually ships in 2-12 days

0

Snapper Pro 7061201

KIT, Recycling Plug (Quad Blade) (other accessories not shown)
(Superseded to 7061201YP)

Note: for 4HP & above engines

$98.99

$

Usually ships in 2-12 days

0

Snapper Pro 7061256

KIT, Thatcherizer (other accessories not shown)

$

$

Not available
