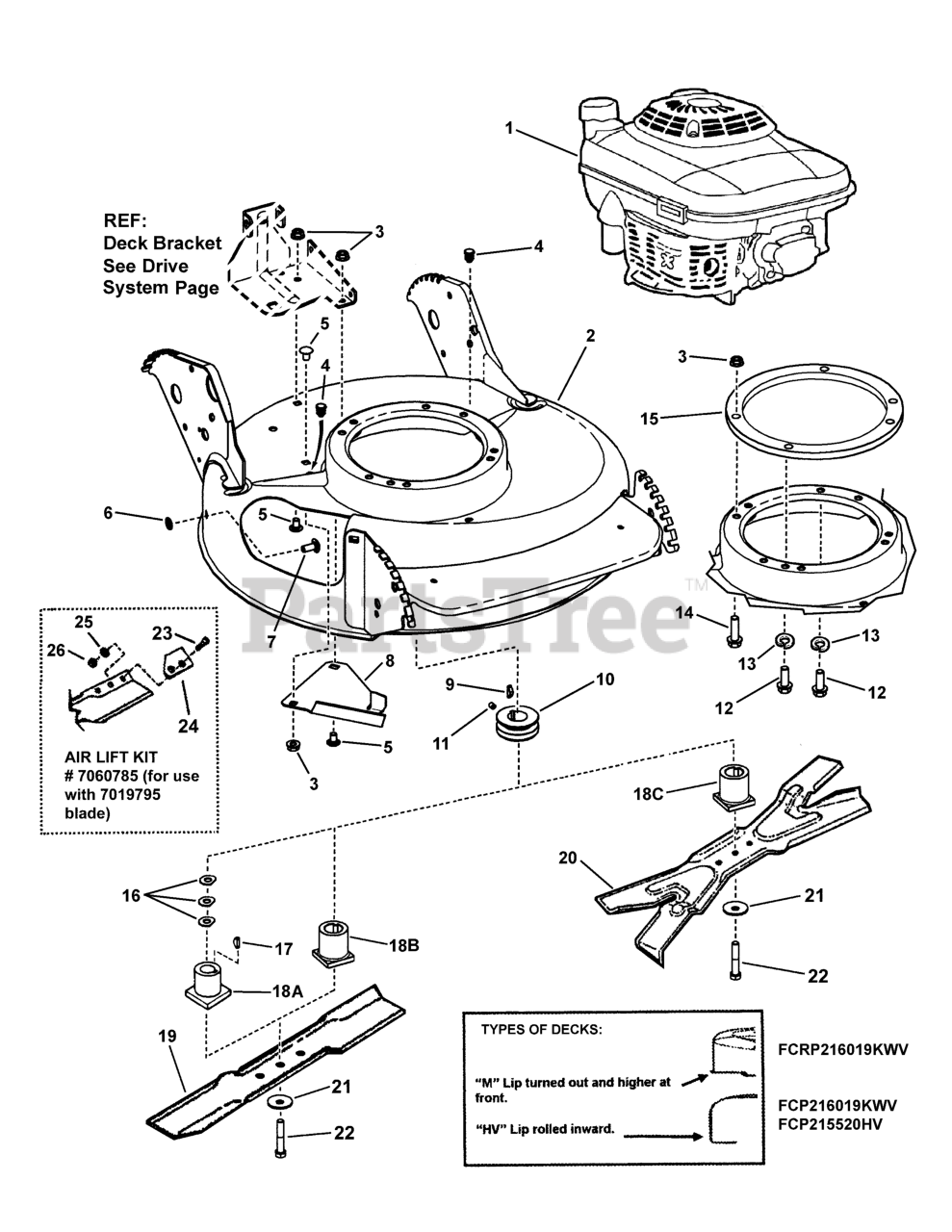

Series 19 (7800550) - Snapper Pro Series 19 Commercial Trim 21" Walk-Behind Mower, 6hp Kawasaki Engine, Cutting Deck, Blade Parts Diagram

Series 19 Commercial Trim 21" Walk-Behind Mower, 6hp Kawasaki

Engine, Cutting Deck, Blade Parts Diagram

  • Title

1

Snapper Pro FJ180V-DS13-R

* ENGINE, 6 HP Kawasaki w/side recoil, Mod. FJ180V-DS13-R

$

$

Currently unavailable

1

Snapper Pro FJ180V-BS23-R

* ENGINE, 6 HP Kawasaki w/side recoil, Mod. FJ180V-BS23-R

$

$

Currently unavailable

1

Snapper Pro GXV160-UH2A1AS

* ENGINE, 5.5 HP Honda (not Shown), Mod. GXV160-UH2A1AS

Note: used on SPCP215520HV

$

$

Currently unavailable

2

Snapper Pro 7500081

** WELDMENT, Deck, 21" Non-Adjust Air
(Superseded to 7600034DYP)

Note: used on SPCRP216019KWV

$359.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7500549

** WELDMENT, Deck, 21", S.P., Hi-Vac
(Superseded to 7500549DYP)

Note: used on SPCP216019KWV & SPCP215520HV

$

$

Not available

3

Snapper Pro 7091601

NUT, 5/16-18 Hex Flange Lock GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

4

Snapper Pro 7046780

PLUG, Hole, Polyethylene
(Superseded to 7046780SM)

$4.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7090731

BOLT, 5/16-18 x 1/2", Short Neck Carriage, GR 5
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

6

Snapper Pro 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

7

Snapper Pro 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage GR 5

$

$

Not available

8

Snapper Pro 7074568

COVER, Belt
(Superseded to 7074568YP)

$12.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7091214

KEY, Woodruff #HP-506 Hi-Pro
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

10

Snapper Pro 7015780

PULLEY- Engine (25mm I.D. x 2-1/8" O.D.)
(Superseded to 7015780YP)

Note: used on Kawasaki engines

$30.99

$

In Stock, only 1 left!

0

10

Snapper Pro 7021822

PULLEY- Engine (1.085 I.D. x 2-1/8" O.D.)
(Superseded to 7021822YP)

Note: used on Honda engines

$34.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7090201

SCREW, 5/16-18 x 5/16" Hex Socket Head
(Superseded to 7090201SM)

Note: used with 7015780

$

$

Not available

11

Snapper Pro 7092086

SCREW, 5/16-18 x 1/2" Hex Socket Head
(Superseded to 7092086YP)

Note: used with 7021822

$4.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 1921982

SCREW, 5/16-24 x 1-1/4" Hex Head Cap GR 5

Note: engine mount bolts (Honda)

$

$

Currently unavailable

13

Snapper Pro 7091315

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

Note: on engine mount bolts (Honda)

$3.49

$

In Stock, Qty 20+

0

14

Snapper Pro 7090700

BOLT, 5/16-18 x 1-1/2" Hex Flange Lock, GR5
(Superseded to 7091602SM)

Note: engine mount bolts (Honda)

$3.99

$

In Stock, Qty 5

0

15

Snapper Pro 7300969A

RING, Engine Spacer
(Superseded to 7300969AYP)

Note: used on SPCP215520HV

$146.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7044770

SPACER, .06 Blade Hub
(Superseded to 7044770YP)

Note: used on SPCP215520HV

$4.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 7010783

KEY, #505 Hi-Pro
(Superseded to 7010783YP)

$3.99

$

Usually ships in 2-12 days

0

18A

Snapper Pro 7012927

*** HUB, Blade Drive, 7/8" I.D.
(Superseded to 7012927YP)

Note: used on SPCP215520HV

$13.99

$

In Stock, only 2 left!

0

18B

Snapper Pro 7015626

*** HUB, Blade Drive, 25mm I.D.
(Superseded to 7015626YP)

Note: used on SPCP216019KWV

$15.99

$

In Stock, only 1 left!

0

18C

Snapper Pro 7101414

*** HUB, Blade Drive, 25mm I.D. RD 2 Position
(Superseded to 7101414YP)

Note: used on SPCRP216019KWV

$16.99

$

In Stock, only 1 left!

0

19

Snapper Pro 7026691

BLADE, Cutter (Standard Lift)
(Superseded to 7026691BZYP)

$23.99

$

In Stock, Qty 20+

0

20

Snapper Pro 7026407

BLADE, 21" Ninja (Quad Edge)
(Superseded to 7026407AYP)

$

$

Not available

21

Snapper Pro 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, GR 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 7090228

SCREW, 5/16-24 x 21/32" Oval Head Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0

24

Snapper Pro 7032558

AIR LIFT
(Superseded to 7032558YP)

$

$

Not available

25

Snapper Pro 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

26

Snapper Pro 7090223

NUT, 5/16-24 Hex, GR 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0
