Select 24 (CMXGBAM213101) (31AS6K1EB93) - Craftsman 24" Snow Blower (2023) Chute Control Parts Diagram

24" Snow Blower

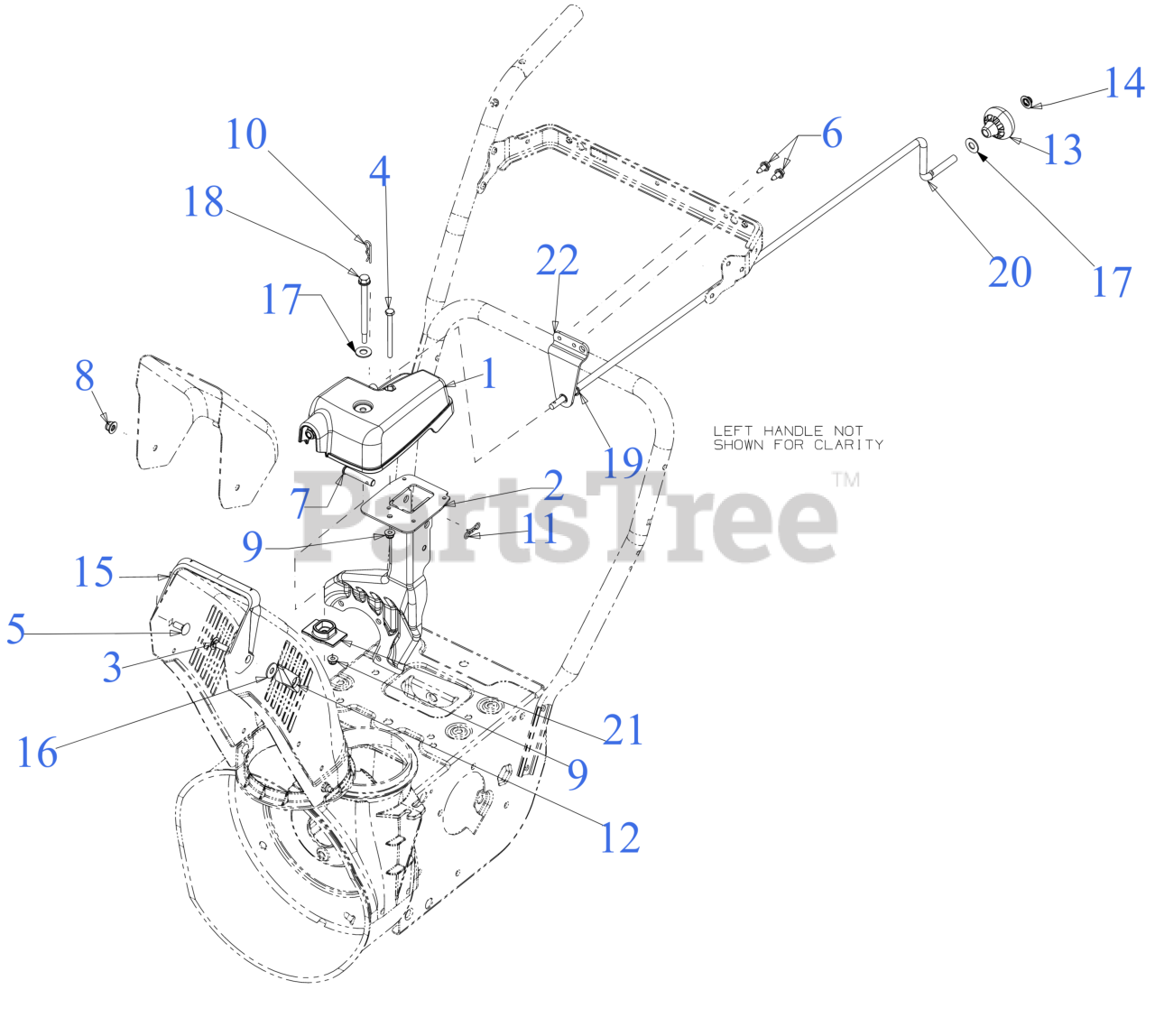

Chute Control Parts Diagram

  • Title
1

MTD 618P09920

2-WAY CHUTE ROTATE GEARBOX

Note: (See Separate Breakdown)

$55.99

$

Usually ships in 3-6 days

0

2

MTD 684-06676

CHUTE SUPPORT ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

$27.99

$

Usually ships in 3-6 days

0

2

MTD 790-00330C

CHUTE SUPPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00330C-0637

BRKT-CHUTE SUPPORT - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

MTD 790-00330C-4021

BRKT-CHUTE SUPPORT - CUB YELLOW 2 (4021)

$32.99

$

Usually ships in 3-6 days

0

MTD 790-00330C-0606

BRKT-CHUTE SUPPORT - MAJESTIC ORANGE (0606)

$28.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

3

MTD 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 10

0

4

MTD 710-04370

SCREW 1/4-20 x 3.0 GR5

$4.49

$

In Stock, Qty 11

0

5

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

7

MTD 711-04469A

CLEVIS PIN 3/8 x 1.87

$5.99

$

In Stock, only 4 left!

0

8

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

Usually ships in 3-6 days

0

9

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

10

MTD 714-0101

INTERNAL COTTER PIN

$4.99

$

In Stock, only 2 left!

0

11

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

12

MTD 920-0284

WING KNOB NUT
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

13

MTD 720-04102

SHIFT KNOB

$6.99

$

In Stock, Qty 20+

0

14

MTD 726-0100

PUSH NUT

$4.49

$

In Stock, Qty 20+

0

15

MTD 731-09539A

UPPER CHUTE ADAPTER

$25.99

$

Usually ships in 3-6 days

0

16

MTD 736-0159

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0300

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

18

MTD 738-04367

SHOULDER SCREW

$4.99

$

In Stock, Qty 11

0

19

MTD 941-0475

BUSHING .380 ID

$4.49

$

In Stock, Qty 20+

0

20

MTD 747-11530

CHUTE CRANK .375 DIA x 31"

$11.99

$

In Stock, Qty 15

0

21

MTD 748-05057

HELICAL GEAR CHUTE ADAPTER

$11.99

$

Usually ships in 3-6 days

0

22

MTD 790-00341-0637

ROD SUPPORT BRACKET

$16.99

$

In Stock, only 1 left!

0
