SE5000 (1329-0) - Generac 5,000 Watt Portable Generator Control Panel Parts Diagram

5,000 Watt Portable Generator

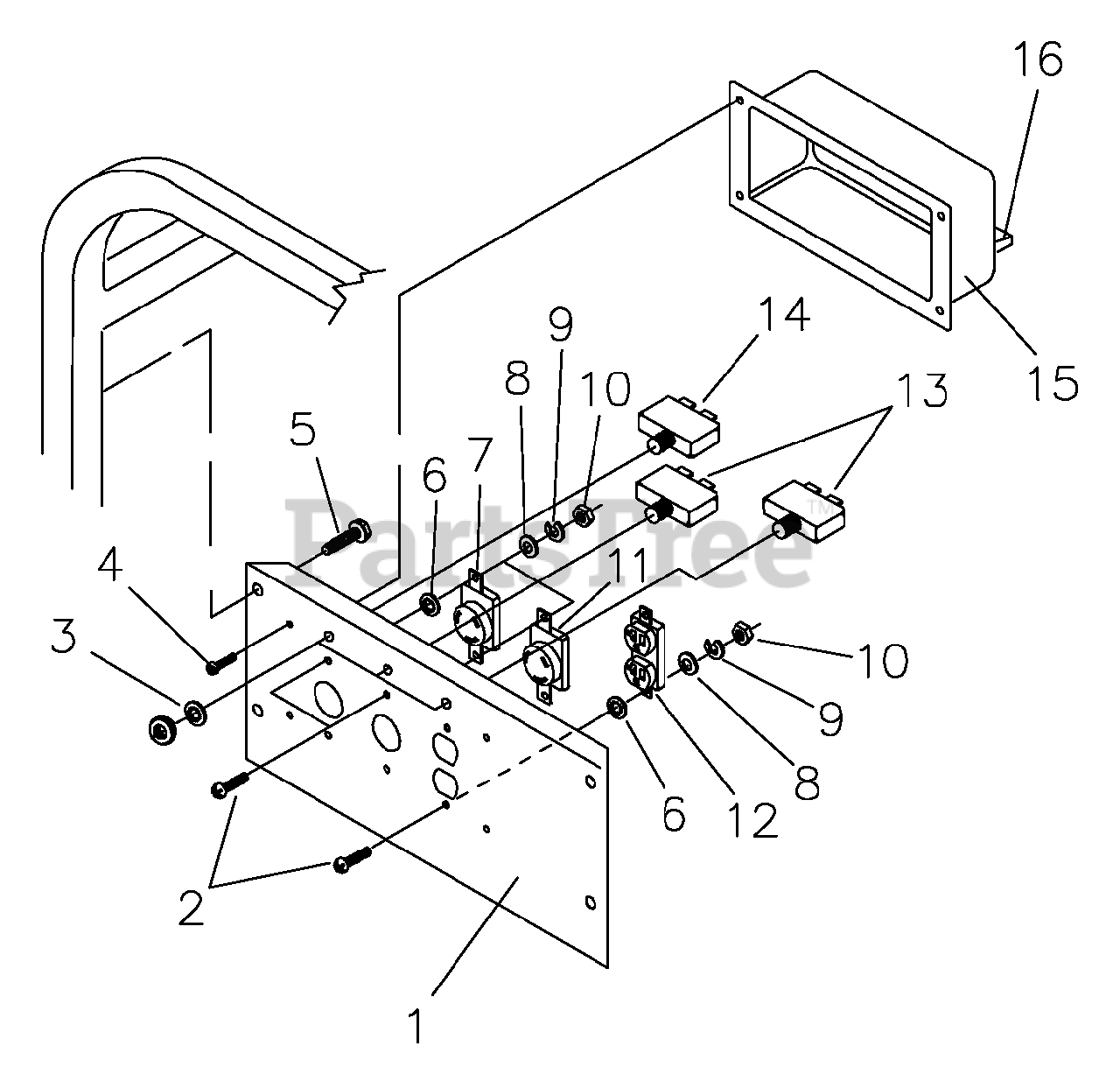

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton B81897

PANEL, Control

$

$

Currently unavailable

2

Briggs & Stratton 75475

SCREW, M4 - 0.7 x 10mm

$

$

Not available

3

Briggs & Stratton 82881

WASHER, Internal Lock
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 82308

SCREW, Self Tapping
(Superseded to 82308GS)

$2.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 86292

SCREW, No. 10 Self Drilling
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 23365

WASHER, No. 8 Serrated Lock
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 68868

RECEPTACLE, 120 Volt, 30 Amp Locking
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 38150

WASHER, No. 8 Flat
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22264

WASHER, No. 8 Lock

$

$

Not available

10

Briggs & Stratton 51715

NUT, M4 0.7 Hex
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 68867

RECEPTACLE, 120/240 Volt, 20 Amp Locking
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 68759

OUTLET,120 Volt, 20 Amp Duplex
(Superseded to 68759GS)

$24.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 75207

CIRCUIT BREAKER, 20 Amp
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 12

0

14

75207A

CIRCUIT BREAKER, 30 Amp

$

$

Not available

15

Briggs & Stratton 81919

CONTROL PANEL, Back, Plastic
(Superseded to 81919GS)

$136.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22694

CONNECTOR, 6-Pin Female
(Superseded to 22694GS)

$5.99

$

In Stock, only 1 left!

0
