SE 5203E (7080834) - Snapper 20" Snow Thrower, 5hp Frame & Handle Group Parts Diagram

20" Snow Thrower, 5hp

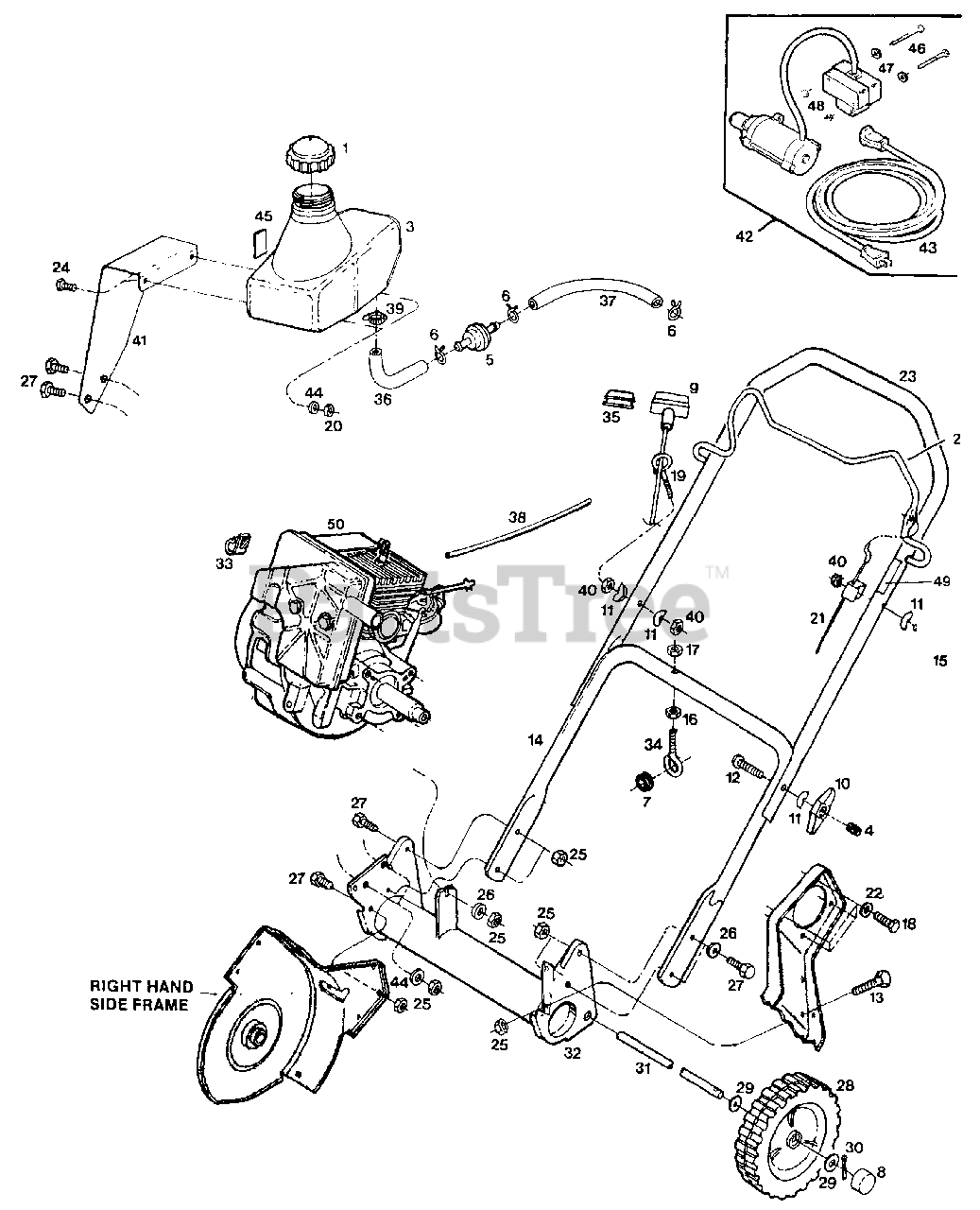

Frame & Handle Group Parts Diagram

  • Title

1

Snapper 7012515

CAP - Tank
(Superseded to 7012515YP)

Note: Was 115552

$19.99

$

In Stock, Qty 5

0

2

Snapper 7658054

BAIL - Auger Control

$

$

Currently unavailable

3

Snapper 7646086

TANK - Fuel

$

$

Not available

4

Snapper 7110064

CAP - Plastic Bolt

$

$

Currently unavailable

5

Snapper 7432625

FILTER - Gas
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

6

Snapper 7303859

CLAMP - Wireform

$

$

Currently unavailable

7

Snapper 7672220

GROMMET - Eyebolt

$

$

Currently unavailable

8

Snapper 7012323

CAP - Hub
(Superseded to 7012323YP)

Note: Was 043249

$3.49

$

In Stock, Qty 6

0

9

Snapper 7645796

HANDLE - Starter Rope

$

$

Not available

10

Snapper 7115540

KNOB - Wing
(Superseded to 7115540YP)

$5.49

$

Usually ships in 2-12 days

0

11

Snapper 7166769

WASHER - Curved 5/16

$

$

Not available

12

Snapper 7166770

BOLT - Curved Head 5/16 - 18 x 2-14

$

$

Currently unavailable

13

Snapper 7152108

BOLT - Hex 5/16 - 18 x 1

$

$

Not available

14

Snapper 7658052

HANDLE - Lower

$

$

Currently unavailable

15

Snapper 7166771

BOLT - Hex 1/4 - 20 x 2

$

$

Currently unavailable

16

Snapper 7091302

NUT - Hex 3/8 - 16
(Superseded to 7091302SM)

Note: Was 166773

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7166774

NUT - Flange Lock 3/8 - 16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

18

Snapper 7380865

BOLT - Hex 5/16 - 18 x 5/8

$

$

Currently unavailable

19

Snapper 7166775

GUIDE - Rope
(Superseded to 7166775YP)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 7452615

NUT - Nylock 1/4 - 20

$

$

Not available

21

Snapper 7646085

CABLE - Auger Control

$

$

Not available

22

Snapper 7090187

WASHER - Lock 5/16
(Superseded to 703116)

Note: Was 311118

$3.49

$

In Stock, Qty 20+

0

23

Snapper 023850

HANDLE - Upper

$

$

Currently unavailable

24

Snapper 7166760

BOLT - Hex 1/4 - 20 x 3/4

$

$

Not available

25

Snapper 7091298

NUT, 5/16-18 Nylock
(Superseded to 703902)

Note: Was 310151

$3.99

$

In Stock, Qty 20+

0

26

Snapper 7090188

WASHER - Flat 5/16 (Left Side Only)
(Superseded to 703350)

Note: Was 715185

$4.49

$

In Stock, only 2 left!

0

27

Snapper 7450346

BOLT - Hex 5/16 - 18 x 3/4

$

$

Currently unavailable

28

Snapper 043255

WHEEL & TIRE

$

$

Currently unavailable

29

Snapper 7090122

WASHER - Flat
(Superseded to 703878)

Note: Was 715417

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7715029

PIN - Cotter 1/8 x 3/4

$

$

Currently unavailable

31

Snapper 7032366

SHAFT - Axle
(Superseded to 7032366YP)

Note: Was 581777 (Now 32366 + 91135)

$4.49

$

Usually ships in 2-12 days

0

32

Snapper 7698984

FRAME - Tube

$

$

Not available

33

Snapper 7819714

CLIP - Retainer

$

$

Currently unavailable

34

Snapper 7166776

EYEBOLT - Chute Rotate

$

$

Currently unavailable

35

Snapper 7667477

INSERT - Metal Handle

$

$

Currently unavailable

36

Snapper 689604

HOSE - Fuel 3-1/4" Lg.

$

$

Currently unavailable

37

Snapper 7690250

HOSE - Fuel 6" Lg.

$

$

Currently unavailable

38

Snapper 7646098

HOSE - Fuel 7-1/2" Lg., Primer
(Superseded to 7014639SM)

$7.99

$

Usually ships in 2-12 days

0

39

Snapper 7162404

CLAMP - Wormdrive

$

$

Currently unavailable

40

Snapper 7715037

NUT - Keps 1/4 - 20
(Superseded to 7715037YP)

$2.99

$

Usually ships in 2-12 days

0

41

Snapper 7667850

BRACKET - Fuel Tank

$

$

Currently unavailable

42

Snapper 7610268

KIT - Electric Start

$

$

Currently unavailable

43

Snapper 7630483

CORD - Extension 10'

$

$

Currently unavailable

44

Snapper 7166761

WASHER - Flat 1/4

$

$

Not available

45

Snapper 7446799

PAD - Rubber

$

$

Currently unavailable

46

Snapper 382002

SCREW #6 - 32 x 2-1/2 H.H.

$

$

Currently unavailable

47

Snapper 7586447

WASHER

$

$

Not available

48

Snapper 381996

NUT #6 - 32 Keps

$

$

Currently unavailable

49

Snapper 7760512

DECAL - Auger Control

$

$

Currently unavailable

50

ENGINE, 5 HP Two Cycle

Note: (Contact engine manufacturer's authorized service dealer for parts and warranty.)

$

$

Not available
