SE 5203 (7080833) - Snapper 20" Snow Thrower, 5hp Auger & Drive Group Parts Diagram

20" Snow Thrower, 5hp

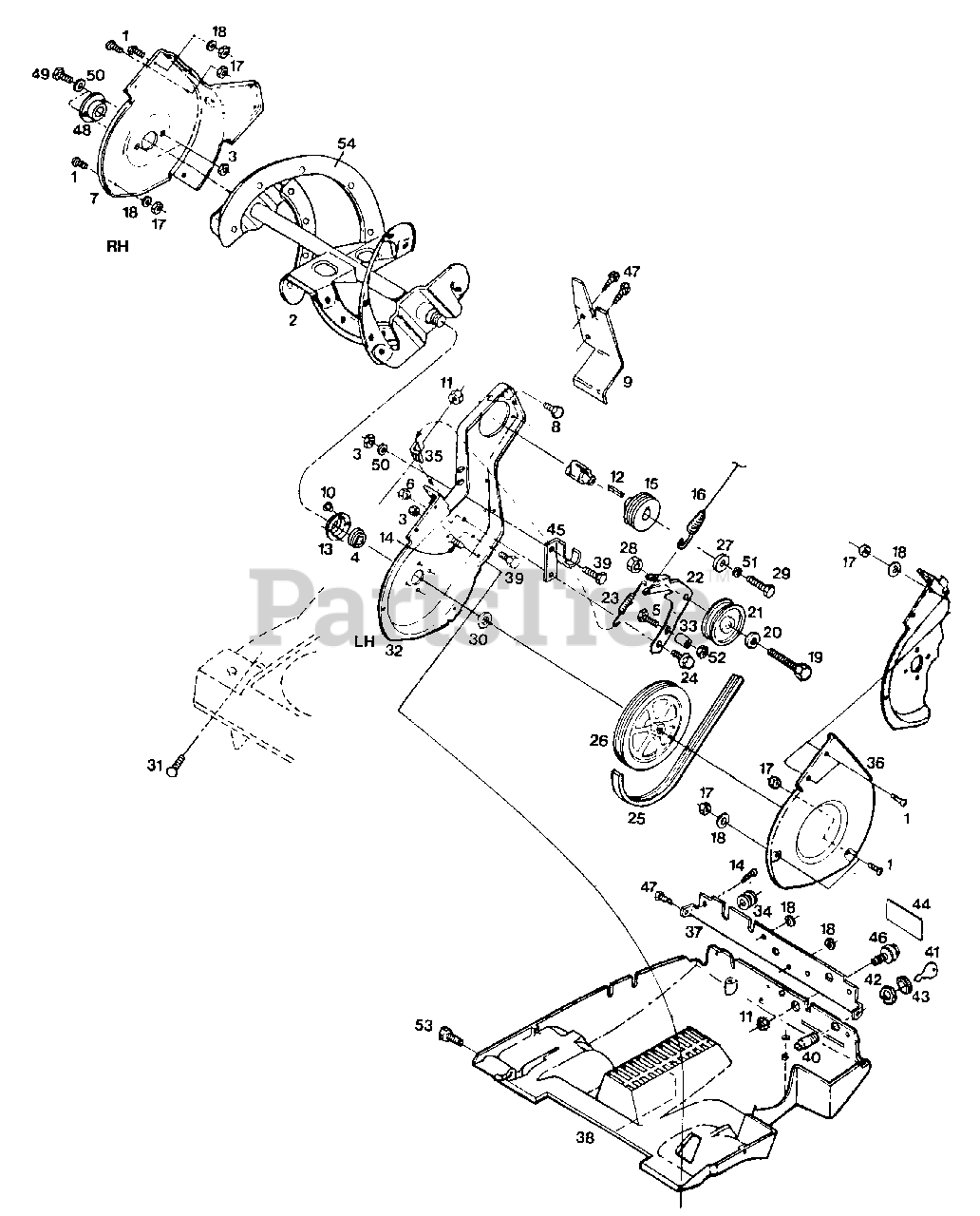

Auger & Drive Group Parts Diagram

  • Title

1

Snapper 7158451

SCREW - Phillips #10 - 24 x 5/8"

$

$

Not available

2

Snapper 7613499

AUGER - Assembly
(Superseded to 1719612SM)

$494.99

$

In Stock, only 1 left!

0

3

Snapper 7452615

NUT - 1/4 - 20 Nylock

$

$

Not available

4

Snapper 7014514

BEARING
(Superseded to 7014514YP)

Note: Was 578884

$50.99

$

Usually ships in 2-12 days

0

5

Snapper 7715292

BOLT - Hex 1/4 - 20 x 1
(Superseded to 703820)

$3.99

$

In Stock, only 4 left!

0

6

Snapper 7091298

NUT, 5/16-18 Nylock
(Superseded to 703902)

Note: Was 310151

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7587213

FRAME - Right Side

$

$

Currently unavailable

8

Snapper 7380865

BOLT - Hex 5/16 - 24 x 5/8

$

$

Currently unavailable

9

Snapper 7698991

SHIELD - Belt

$

$

Currently unavailable

10

Snapper 7583462

RIVET - 1/4

$

$

Currently unavailable

11

Snapper 7715037

NUT - Keps 1/4 - 20
(Superseded to 7715037YP)

$2.99

$

Usually ships in 2-12 days

0

12

Snapper 7166732

KEY - 1865 Sq. x 1

$

$

Currently unavailable

13

Snapper 7699011

RETAINER - Bearing
(Superseded to 7699011YP)

$15.99

$

Usually ships in 2-12 days

0

14

Snapper 7380543

SCREW - H.W.H. Tap #10 - 24 x 3/4

$

$

Currently unavailable

15

Snapper 7709616

PULLEY - Drive

$

$

Not available

16

Snapper 7646085

CABLE - Auger Control

$

$

Not available

17

Snapper 7076977

NUT - #10 - 24
(Superseded to 7076977YP)

Note: Was 452318

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7586447

WASHER - Retaining

$

$

Not available

19

Snapper 7159020

BOLT - Hex 3/8 - 16 x 1-1/2

$

$

Currently unavailable

20

Snapper 7090122

WASHER - Flat 3/8
(Superseded to 703878)

Note: Was 715417

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7645994

PULLEY - Idler

$

$

Not available

22

Snapper 7698985

ARM - Idler

$

$

Not available

23

Snapper 7586918

SPRING - Extension
(Superseded to 7586918YP)

$15.99

$

Usually ships in 2-12 days

0

24

Snapper 7581779

BOLT - Idler Pivot

$

$

Currently unavailable

25

Snapper 7709614

BELT - Drive

$

$

Not available

26

Snapper 087981

PULLEY - Drive

$

$

Currently unavailable

27

Snapper 7158212

WASHER - Flat

$

$

Currently unavailable

28

Snapper 7166774

NUT - Serrated Flange Lock 3/8
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

29

Snapper 7163741

BOLT - Hex 5/16 - 24 x 7/8 Gr. 5

$

$

Currently unavailable

30

Snapper 7581785

SPACER

$

$

Not available

31

Snapper 7091530

BOLT - Carriage 1/4 - 20 x 3/4
(Superseded to 7091530SM)

Note: Was 583108

$3.99

$

In Stock, only 2 left!

0

32

Snapper 7698983

FRAME - Left Side

Note: (Early Production Models Only)

$

$

Currently unavailable

Snapper 7699015

FRAME - Left Side

Note: (Later Production Models) (Includes Index No. 35)

$

$

Currently unavailable

33

Snapper 7613503

ROLLER - Belt Stop

$

$

Not available

34

Snapper 7587060

GROMMET - Metal

$

$

Not available

35

Snapper 582044

CLIP - Spring

Note: (Early Production Models Only)

$

$

Currently unavailable

36

Snapper 7587124

GUARD - Belt

$

$

Not available

37

Snapper 7698988

BRACKET - Control Panel

$

$

Currently unavailable

38

Snapper 7646089

COWLING - Lower, Electric Start

$

$

Not available

Snapper 7646091

COWLING - Lower, Manual Start

$

$

Not available

39

Snapper 7166760

BOLT - Hex 1/4 - 20 x 3/4

$

$

Not available

40

Snapper 7017817

SWITCH - Ignition
(Superseded to 7017817YP)

Note: Was 630186

$31.99

$

In Stock, only 1 left!

0

41

Snapper 7304352

KEY - Ignition
(Superseded to 1717163SM)

$8.99

$

In Stock, Qty 20+

0

42

Snapper 382929

NUT - Hex Ignition Switch 5/8 - 32

$

$

Currently unavailable

43

Snapper 7115536

BOOT - Ignition Switch

$

$

Currently unavailable

44

Snapper 7689422

DECAL - Choke

$

$

Currently unavailable

45

Snapper 7658055

BRACKET - Belt
(Superseded to 7658055YP)

$36.99

$

Usually ships in 2-12 days

0

46

Snapper 7014638

PRIMER - Bulb
(Superseded to 7014638SM)

Note: Was 645762

$

$

Not available

47

Snapper 7151118

SCREW - H.W.H. Tap #10 - 24 x 1/2

$

$

Not available

48

Snapper 7709615

BEARING - Plastic

$

$

Not available

49

Snapper 7090643

BOLT - Hex 1/4 - 20 x 7/8 Gr. 5
(Superseded to 7090643YP)

Note: Was 155341

$

$

Not available

50

Snapper 7615690

WASHER - Flat 1/4

$

$

Not available

51

Snapper 7090187

WASHER - Split Lock 5/16
(Superseded to 703116)

Note: Was 311118

$3.49

$

In Stock, Qty 20+

0

52

Snapper 7616375

NUT - 1/4 - 20 Center Lock

$

$

Currently unavailable

53

Snapper 7090072

SCREW - Hex 1/4 - 20 x 5/8
(Superseded to 001X38MA)

Note: Was 158097

$4.49

$

In Stock, Qty 18

0

54

Snapper 7397237

KIT - Auger Flighting

$

$

Not available
