SE 26-C (59AA402-750) - Cub Cadet Commercial Stick Edger General Assembly Parts Diagram

Commercial Stick Edger

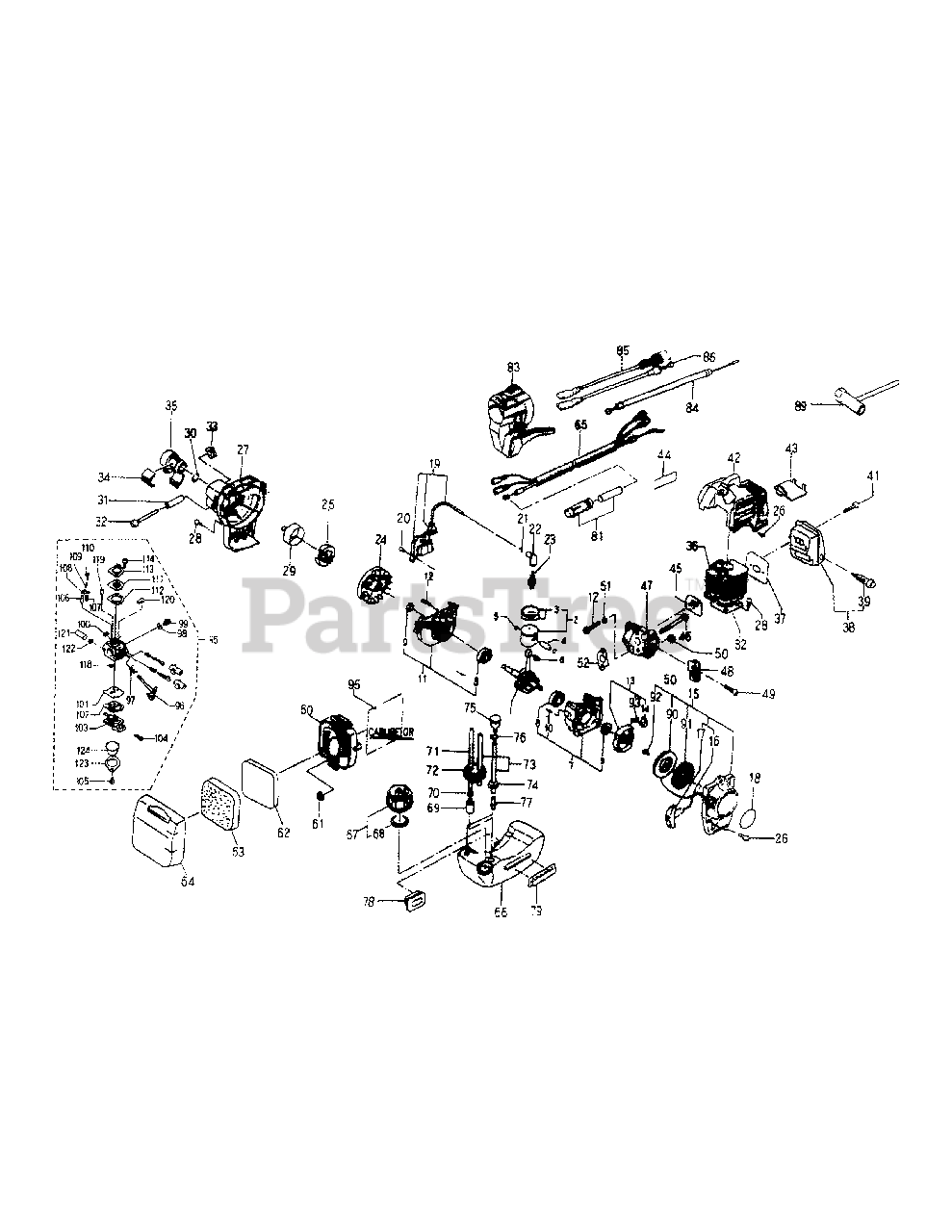

General Assembly Parts Diagram

  • Title

1

Cub Cadet IM-115253470

Crankshaft

$

$

Not available

2

Cub Cadet IM-115013311

Piston Assembly

$

$

Not available

3

Cub Cadet IM-115113650

Ring, Piston

$

$

Not available

4

Cub Cadet IM-115323041

Pin, Piston

$

$

Not available

5

Cub Cadet IM-198343210

Clip, Piston Pin

$

$

Not available

6

Cub Cadet IM-042709008

Needle Bearing

$

$

Not available

7

Cub Cadet IM-110035190

Crankcase Assembly

$

$

Not available

8

Cub Cadet IM-040106201

Ball Bearing:6201

$

$

Not available

9

Cub Cadet IM-050209070

Oil Seal

$7.99

$

Usually ships in 3-6 days

0

10

Cub Cadet IM-030500512

Dowel Pin

$

$

Not available

11

Cub Cadet IM-110035200

Crankcase Assembly

$

$

Not available

12

Cub Cadet IM-010709010

Bolt: M5x25

$

$

Not available

13

Cub Cadet IM-155353090

Pulley Assembly, Starter

$

$

Not available

14

Cub Cadet IM-155163110

Ratchet

$

$

Not available

15

Cub Cadet IM-155103461

Recoil Assembly

$126.99

$

Usually ships in 3-6 days

0

16

Cub Cadet IM-155213050

Rope, Starter

$

$

Not available

17

Cub Cadet IM-155223061

Knob, Starter

Note: NLA

$

$

Not available

18

Cub Cadet IM-190285440

Name Plate

$

$

Not available

19

Cub Cadet IM-150053330

Coil Assembly, Ignition

$

$

Not available

20

Cub Cadet IM-010709018

Bolt: M4x20

$3.49

$

In Stock, Qty 5

0

21

Cub Cadet IM-198213300

Spring

$2.99

$

In Stock, only 1 left!

0

22

Cub Cadet IM-150413033

Cap, Plug

$

$

Not available

23

Cub Cadet IM-150265091

Spark Plug
(Superseded to BPMR7A)

$3.49

$

In Stock, Qty 20+

0

24

Cub Cadet IM-150103500

Flywheel, Magneto

$47.99

$

Usually ships in 3-6 days

0

25

Cub Cadet IM-170033370

Clutch Assembly

$

$

Not available

26

Cub Cadet IM-010709009

Bolt; M5 x 20

$

$

Not available

27

Cub Cadet IM-175103470

Housing Blower

$

$

Not available

28

Cub Cadet IM-010709008

Bolt; M5 x 16

$

$

Not available

29

Cub Cadet IM-170333250

Drum, Clutch

$

$

Not available

30

Cub Cadet IM-036100012

Snap Ring

Note: NLA

$

$

Not available

31

Cub Cadet IM-199233470

Collar

$

$

Not available

32

Cub Cadet IM-010709011

Bolt; M5 x 30

$

$

Not available

33

Cub Cadet IM-020109131

Nut

$

$

Not available

34

Cub Cadet IM-175423060

Plate

$

$

Not available

35

Cub Cadet IM-198113930

Rubber

$10.99

$

Usually ships in 3-6 days

0

36

Cub Cadet IM-110213560

Cylinder

$

$

Not available

37

Cub Cadet IM-135994020

Gasket, Muffler

$

$

Not available

38

Cub Cadet IM-135403670

Muffler

$

$

Not available

39

Cub Cadet IM-135493090

Arrester

$12.99

$

In Stock, only 1 left!

0

41

Cub Cadet IM-010709016

Bolt; M5 x 48

$3.49

$

Usually ships in 3-6 days

0

42

Cub Cadet IM-175154070

Cowling, Cylinder
(Superseded to IM-175153970)

$

$

Not available

43

Cub Cadet IM-135433630

Baffle Plate

$

$

Not available

44

Cub Cadet IM-190333330

Trade Mark

$

$

Not available

45

Cub Cadet IM-135994000

Gasket, Insulator

$

$

Not available

46

Cub Cadet IM-010109433

Bolt; M5 x 56

$

$

Not available

47

Cub Cadet IM-199513510

Insulator

$46.99

$

In Stock, only 1 left!

0

48

Cub Cadet IM-125543100

Adjuster

$

$

Not available

49

Cub Cadet IM-010709006

Bolt; M5 x 12

$

$

Not available

50

Cub Cadet IM-020100005

Nut

$

$

Not available

51

Cub Cadet IM-026100005

Washer

Note: NLA

$

$

Not available

52

Cub Cadet IM-135994010

Gasket

$

$

Not available

60

Cub Cadet IM-135713491

Case, Air Silencer

$

$

Not available

61

Cub Cadet IM-023100005

Nut

$

$

Not available

62

Cub Cadet IM-135263311

Element (B), Filter Air

$8.99

$

Usually ships in 3-6 days

0

63

Cub Cadet IM-135263300

Element (A), Filter Air

$8.99

$

In Stock, only 1 left!

0

64

Cub Cadet IM-135713450

Case, Cap

$8.99

$

Usually ships in 3-6 days

0

65

Cub Cadet IM-125504790

Wire complete, Throttle

$

$

Not available

66

Cub Cadet IM-160113261

Tank, Fuel

$43.99

$

Usually ships in 3-6 days

0

67

Cub Cadet IM-160033201

Cap Assembly, Fuel Tank

$10.99

$

In Stock, Qty 6

0

68

Cub Cadet IM-160993100

Gasket

$3.99

$

In Stock, Qty 6

0

69

Cub Cadet IM-130303290

Filter, Fuel

$15.99

$

Usually ships in 3-6 days

0

70

Cub Cadet IM-198343181

Clip

$3.49

$

Usually ships in 3-6 days

0

71

Cub Cadet IM-198163080

Hose

Note: NLA

$

$

Not available

72

Cub Cadet IM-198113730

Rubber

$11.99

$

In Stock, only 1 left!

0

73

Cub Cadet IM-068209150

Hose

Note: NLA

$

$

Not available

74

Cub Cadet IM-198113560

Rubber

$

$

Not available

75

Cub Cadet IM-160043121

Valve Assembly, reversing

$

$

Not available

76

Cub Cadet IM-198343060

Clip

$

$

Not available

77

Cub Cadet IM-130443121

Connector

$9.99

$

Usually ships in 3-6 days

0

78

Cub Cadet IM-198113620

Rubber

$

$

Not available

79

Cub Cadet IM-198113740

Rubber

Note: NLA

$

$

Not available

81

Cub Cadet IM-125683062

Holder, Wire

$10.99

$

Usually ships in 3-6 days

0

82

Cub Cadet IM-110993420

Gasket

$

$

Not available

83

Cub Cadet IM-125034360

Lever assembly, Throttle

$

$

Not available

84

Cub Cadet IM-125505020

Wire, Throttle

$

$

Not available

85

Cub Cadet IM-185603390

Harness, Wire

$

$

Not available

86

Cub Cadet IM-185603380

Harness, Wire

$

$

Not available

89

Cub Cadet IM-720983371

Spanner

$

$

Not available

90

Cub Cadet IM-155183121

Reel

$

$

Not available

91

Cub Cadet IM-155263270

Spring, Spiral

$38.99

$

Usually ships in 3-6 days

0

92

Cub Cadet IM-155343050

Screw

$

$

Not available

93

Cub Cadet IM-155263261

Spring, Return

$

$

Not available

95

Cub Cadet IM-130104240

Carburetor Assembly

$

$

Not available

96

Cub Cadet IM-130283362

Shaft, throttle

$

$

Not available

97

Cub Cadet IM-130213500

Spring

$

$

Not available

98

Cub Cadet IM-130273460

Valve, Throttle

$

$

Not available

99

Cub Cadet IM-130183210

Screw

$

$

Not available

100

Cub Cadet IM-130283294

Clip

$

$

Not available

101

Cub Cadet IM-130513409

Diaphragm, Pump

$

$

Not available

102

Cub Cadet IM-130513413

Gasket

$

$

Not available

103

Cub Cadet IM-130513414

Base Assembly, Primer

$

$

Not available

104

Cub Cadet IM-130183490

Screw

$

$

Not available

105

Cub Cadet IM-130183440

Screw

$

$

Not available

106

Cub Cadet IM-130153240

Valve, Float

$

$

Not available

107

Cub Cadet IM-130213580

Spring

$

$

Not available

108

Cub Cadet IM-130283363

Arm, Float

$

$

Not available

109

Cub Cadet IM-130283296

Pin, Float

$

$

Not available

110

Cub Cadet IM-130183520

Screw

$

$

Not available

111

Cub Cadet IM-130283357

Diaphragm, Metering

$

$

Not available

112

Cub Cadet IM-130123350

Gasket

$

$

Not available

113

Cub Cadet IM-130283358

Cover

Note: NLA

$

$

Currently unavailable

114

Cub Cadet IM-130183250

Screw

$

$

Not available

118

Cub Cadet IM-130283299

Net

$

$

Not available

119

Cub Cadet IM-130173240

Nozzle, Capsule

$

$

Not available

120

Cub Cadet IM-130283364

Blank Plug

$

$

Not available

121

Cub Cadet IM-130293070

Seat Assembly, Valve

$

$

Not available

122

Cub Cadet IM-130183530

Washer

$

$

Not available

123

Cub Cadet IM-130513412

Plate

$

$

Not available

124

Cub Cadet IM-198113900

Rubber

$24.99

$

Usually ships in 3-6 days

0
