SE 2200 (CMXEDAMDSE25) (41BDSE25793) - Craftsman Edger Engine Assembly Parts Diagram

Edger

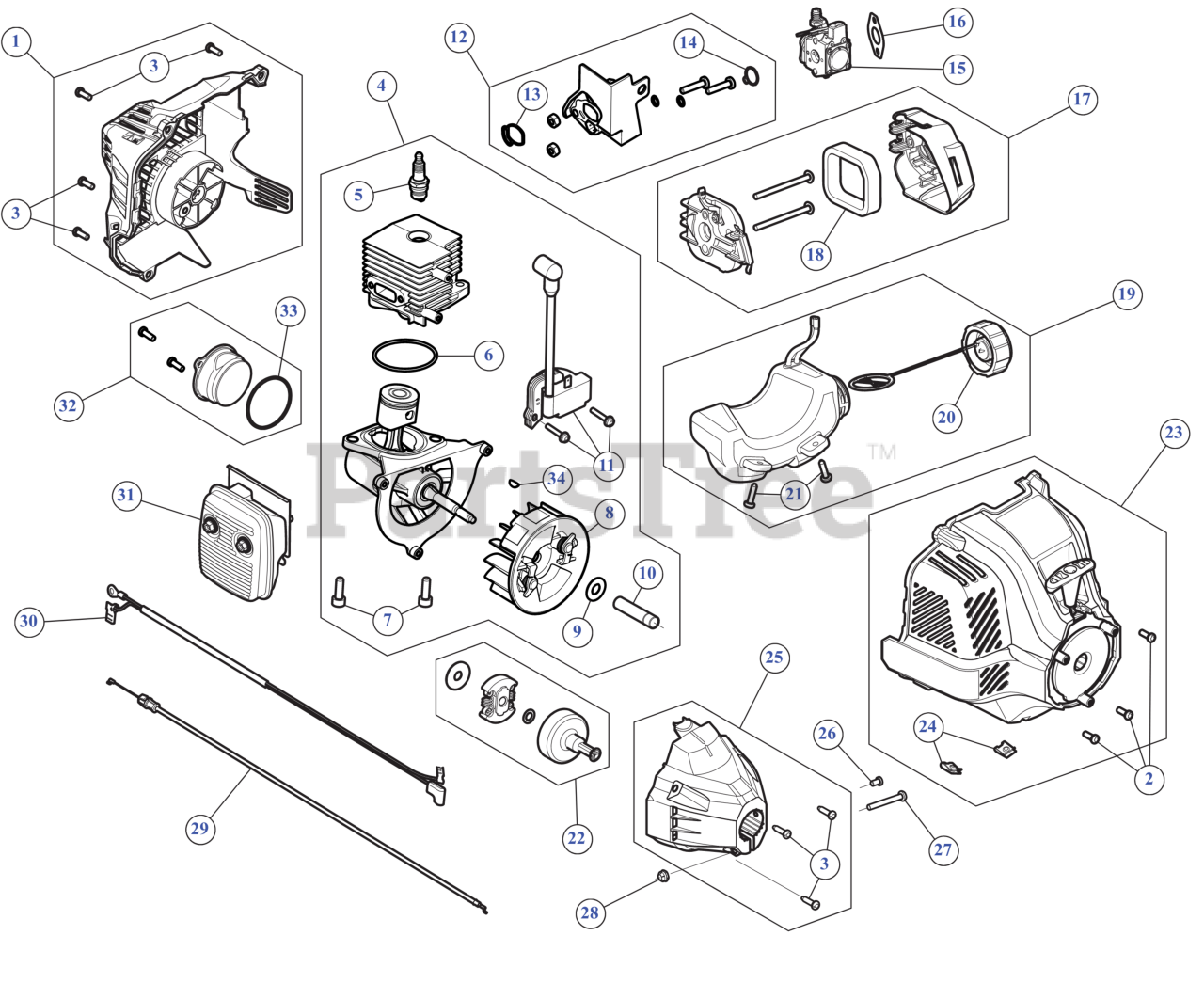

Engine Assembly Parts Diagram

  • Title

1

MTD 753-10406

REAR ENGINE COVER

Note: (Incl. 3)

$6.49

$

Usually ships in 3-6 days

0

2

MTD 791-182195

SCREW #10-24X11/16 T-25

$7.49

$

In Stock, only 1 left!

0

3

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

4

MTD 841P014182S

SHORT BLOCK 25cc

Note: (Incl. 5 - 11, 32 & 34)

$92.99

$

Usually ships in 3-6 days

0

5

MTD 753-06847

SPARK PLUG

$7.49

$

In Stock, Qty 20+

0

6

MTD 753-09085

O-RING SEAL CYLINDER

$2.99

$

In Stock, Qty 5

0

7

MTD 710-06241

SCREW 5/16-18x3/4 T40

$2.99

$

Usually ships in 3-6 days

0

8

MTD 753-09125

FLYWHEEL ASSEMBLY

$15.99

$

In Stock, Qty 12

0

9

MTD 753-06247

BELL WASHER

$3.49

$

In Stock, only 1 left!

0

10

MTD 750-04434

SPACER :2.165"

$6.99

$

In Stock, only 4 left!

0

11

MTD 753-10464

MODULE

$34.99

$

In Stock, only 1 left!

0

12

MTD 753-09105

INTAKE ASSEMBLY

Note: (Incl. 13 & 14)

$4.99

$

In Stock, only 1 left!

0

13

MTD 721-04973

INSL/CYL SEAL

$2.99

$

In Stock, only 1 left!

0

14

MTD 721-04972

CARBURETOR SEAL

$1.49

$

In Stock, Qty 20+

0

15

MTD 753-06190

CARBURETOR

$35.99

$

In Stock, Qty 20+

0

16

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

17

MTD 753-10524

AIR CLEANER COVER

Note: (Incl. 18)

$8.49

$

In Stock, Qty 20+

0

18

MTD 753-06417

AIR FLITER

$2.99

$

In Stock, Qty 20+

0

19

MTD 753-06183

FUEL TANK ASSEMBLY

Note: (Incl. 20 & 21)

$13.99

$

In Stock, Qty 20+

0

20

MTD 791-182612

FUEL CAP ASSEMBLY

$20.99

$

In Stock, Qty 9

0

21

MTD 791-181930

SCREW:10-6 x .75

$6.99

$

In Stock, only 1 left!

0

22

MTD 753-05860

SMALL CLUTCH ASSEMBLY W/SMALL DRUM

$25.99

$

In Stock, Qty 10

0

23

MTD 753-10404

STARTER HOUSING (LIBERTY RED)

Note: (Incl. 2 & 24)

$20.99

$

In Stock, Qty 20+

0

24

MTD 791-182366

NUT, TINNERMAN U-T

$5.99

$

In Stock, only 1 left!

0

25

MTD 753-10405

CLUTCH COVER

Note: (Incl. 3)

$3.49

$

In Stock, only 4 left!

0

26

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 5

0

27

MTD 2986

SCREW 10-24 X 1.12

$0.99

$

In Stock, Qty 7

0

28

MTD 712-0161

HEX NUT

$4.49

$

In Stock, only 2 left!

0

29

MTD 746P06311A

THROTTLE CABLE

$6.49

$

In Stock, Qty 20+

0

30

MTD 794-00244

LEAD WIRES

$3.49

$

In Stock, only 1 left!

0

31

MTD 841P014184S

MUFFLER

$26.99

$

In Stock, only 1 left!

0

32

MTD 841P014301S

CRANKCASE COVER

Note: (Incl. 33)

$7.99

$

In Stock, Qty 20+

0

33

MTD 753-09086

O-RING SEAL CRANKCASE

$2.99

$

In Stock, Qty 20+

0

34

MTD 914-04016

WOODRUFF KEY #403-.125 x .375

$4.49

$

In Stock, only 1 left!
