SDS270CSB20000 - Exmark 20" Slicer Seeder (SN: 402082300 - 404314158) (2018) Transmission Assembly Parts Diagram

20" Slicer Seeder

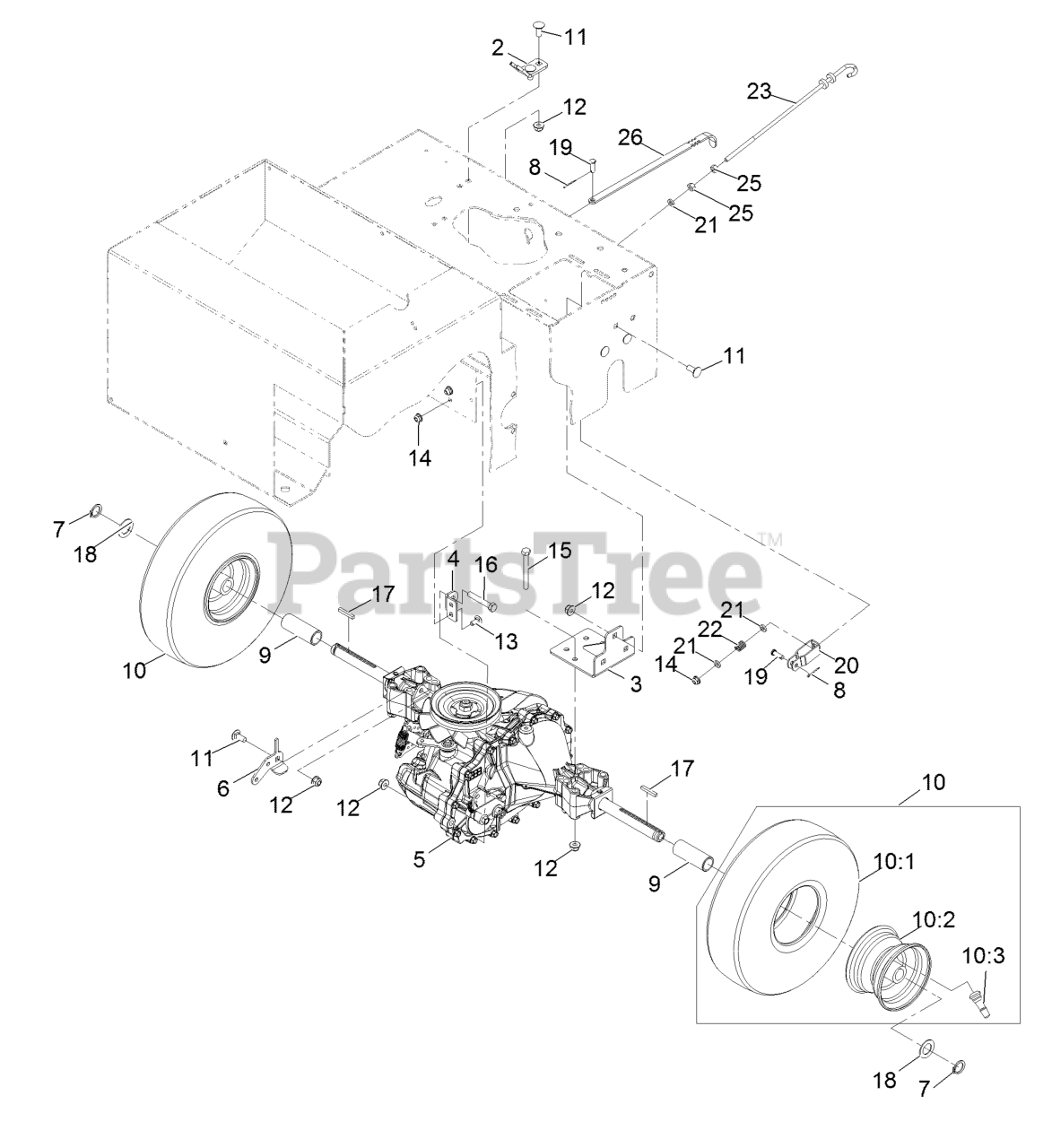

Transmission Assembly Parts Diagram

  • Title

2

Exmark 121-1897

Bracket-Cable

$20.99

$

Usually ships in 3-6 days

0

3

Exmark 121-1901-03

Bracket-Axle

$44.99

$

Usually ships in 3-6 days

0

4

Exmark 121-1904

Bracket-Transaxle, Torque

$18.99

$

Usually ships in 3-6 days

0

5

Exmark 121-1908

Transaxle ASM

$1010.99

$

Usually ships in 3-6 days

0

6

Exmark 121-1909

Bracket-Transaxle

$20.99

$

Usually ships in 3-6 days

0

7

Exmark 32120-93

Ring-Retaining

$2.99

$

In Stock, Qty 20+

0

8

Exmark 3272-4

Pin-Cotter

$0.99

$

Usually ships in 3-6 days

0

9

Exmark 121-1988

Spacer

$17.99

$

Usually ships in 3-6 days

0

10

Exmark 120-3550

Wheel ASM

$118.99

$

In Stock, only 1 left!

0

10:1

Exmark 121-6081

Tire

$79.99

$

Usually ships in 3-6 days

0

10:2

Exmark 121-6082

Wheel-Rim

$55.99

$

Usually ships in 3-6 days

0

10:3

Exmark 5108

Valve

$6.99

$

In Stock, Qty 14

0

11

Exmark 3230-23

Bolt-Carriage 5/16-18 X 3/4 Short Neck

$1.49

$

In Stock, Qty 20+

0

12

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

13

Exmark 3229-11

Bolt-Carriage 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

14

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 322-13

Screw-HH 5/16-18 X 2 3/4

$3.49

$

In Stock, only 3 left!

0

16

Exmark 322-10

Screw-HH 5/16-18 X 2

$0.99

$

In Stock, Qty 20+

0

17

Exmark 92-0049

Key-Machine 3/16 X 3/16 X 1 1/4

$3.49

$

In Stock, Qty 17

0

18

Exmark 67-9410

Washer

$4.49

$

Usually ships in 3-6 days

0

19

Exmark 1-808265

Pin-Clevis 1/4 X 3/4

$3.49

$

In Stock, only 2 left!

0

20

Exmark 39-3080

Clevis

$14.99

$

Usually ships in 3-6 days

0

21

Exmark 55-9620

Spacer

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 63-4220

Spring-Compression

$19.99

$

Usually ships in 3-6 days

0

23

Exmark 121-2018

Rod-Brake

$28.99

$

Usually ships in 3-6 days

0

25

Exmark 3217-5

Nut-Hex 1/4-20

$0.99

$

In Stock, Qty 8

0

26

Exmark 121-2039

Lever-Bypass

$21.99

$

Usually ships in 3-6 days

0
