SDS270CSB20000 - Exmark 20" Slicer Seeder (SN: 402082300 - 404314158) (2018) Handle Assembly Parts Diagram

20" Slicer Seeder

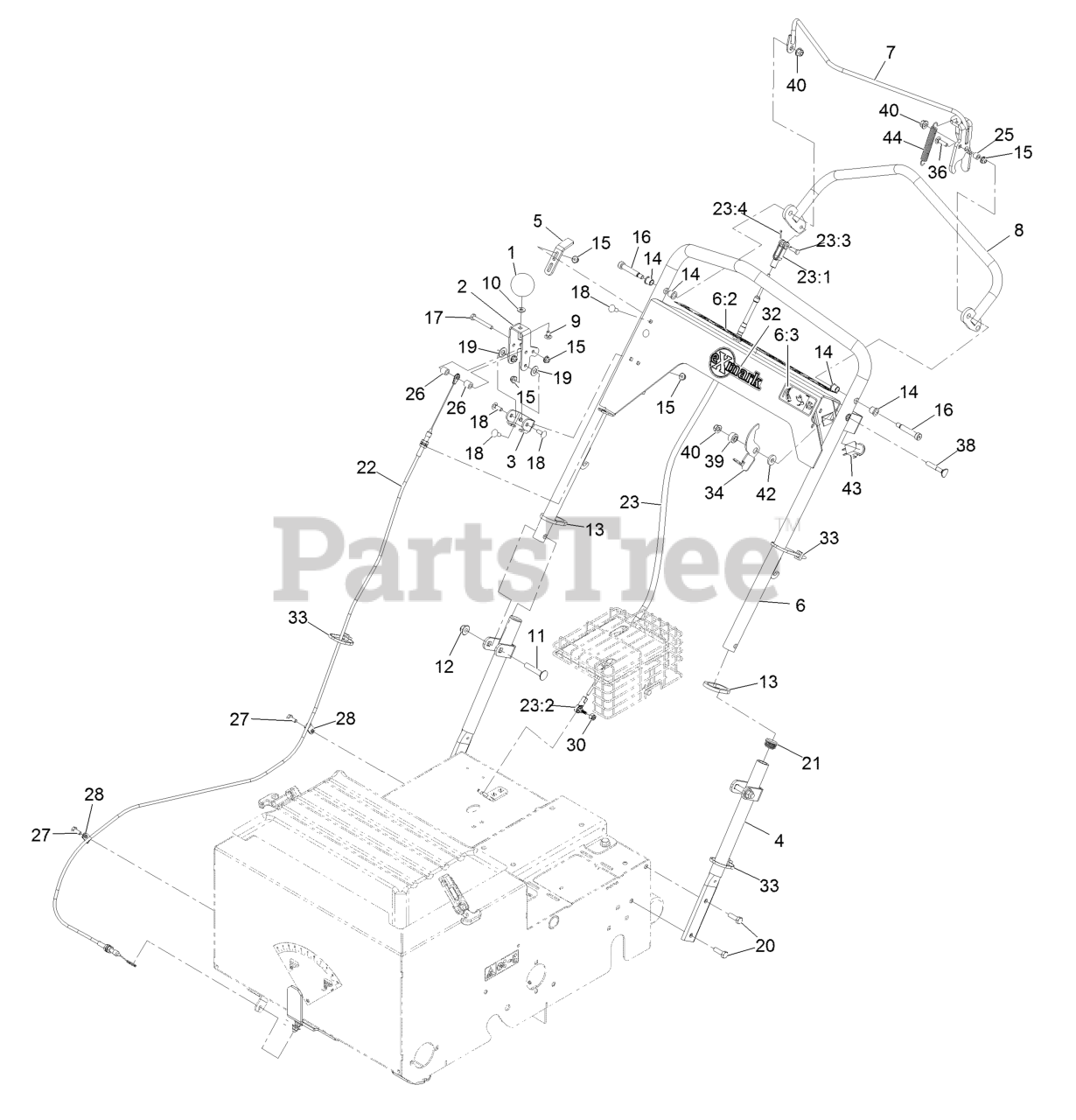

Handle Assembly Parts Diagram

  • Title

1

Exmark 121-1877

Knob-Rate, Flow

$9.49

$

Usually ships in 3-6 days

0

2

Exmark 121-1878

Lever-Adjust, Flow

$28.99

$

Usually ships in 3-6 days

0

3

Exmark 121-1879

Bracket-Adjust, Flow

$17.99

$

Usually ships in 3-6 days

0

4

Exmark 121-1893-03

Handle-Lower

$65.99

$

Usually ships in 3-6 days

0

5

Exmark 121-1928

Bracket-Adjust, Drive

$15.99

$

Usually ships in 3-6 days

0

6

Exmark 116-9735

Handle

$190.99

$

Usually ships in 3-6 days

0

6:2

Exmark 116-8648

Decal-Control Panel, Seeder

$11.99

$

Usually ships in 3-6 days

0

6:3

Exmark 116-8536

Decal-Safety Latch

$3.49

$

Usually ships in 3-6 days

0

7

Exmark 126-0509-03

Bail-Clutch

$55.99

$

Usually ships in 3-6 days

0

8

Exmark 121-1948-03

Handle-Drive

$99.99

$

Usually ships in 3-6 days

0

9

Exmark 3229-10

Bolt-Carriage 1/4-20 X 1/2

$1.49

$

In Stock, only 4 left!

0

10

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

11

Exmark 3231-6

Bolt-Carriage 3/8-16 X 2

$2.99

$

In Stock, Qty 20+

0

12

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

13

Exmark 121-6202

Ring-Handle Lock

$7.99

$

Usually ships in 3-6 days

0

14

Exmark 103-9928

Bearing

$7.99

$

In Stock, Qty 11

0

15

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

16

Exmark 126-0277

Screw-Shoulder

$5.49

$

Usually ships in 3-6 days

0

17

Exmark 321-11

Screw-HH 1/4-20 X 2

$0.99

$

In Stock, Qty 20+

0

18

Exmark 3229-1

Bolt-Carriage 1/4-20 X 3/4

$3.99

$

In Stock, Qty 20+

0

19

Exmark 48-9220

Washer-Plain

$0.99

$

Usually ships in 3-6 days

0

20

Exmark 322-5

Screw-HH 5/16-18 X 1

$0.99

$

In Stock, Qty 20+

0

21

Exmark 121-4870

Plug

$2.99

$

Usually ships in 3-6 days

0

22

Exmark 126-0042

Cable-Flow, Seed

$39.99

$

Usually ships in 3-6 days

0

23

Exmark 116-8252

Cable-Push Pull

$147.99

$

Usually ships in 3-6 days

0

23:1

Exmark 121-2000

Clevis

$25.99

$

Usually ships in 3-6 days

0

23:2

Exmark 117-9720

Ball Joint

$17.99

$

In Stock, only 2 left!

0

23:3

Exmark 283-67

Pin-Clevis

$2.99

$

In Stock, only 1 left!

0

23:4

Exmark 3272-5

Pin-Cotter 3/32 X 1/2

$1.49

$

In Stock, Qty 5

0

25

Exmark 66-8010

Spacer

$4.99

$

In Stock, Qty 13

0

26

Exmark 22-7810

Spacer

$18.99

$

Usually ships in 3-6 days

0

27

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

28

Exmark 2412-149

Clamp-R

$3.49

$

Usually ships in 3-6 days

0

30

Exmark 3296-3

Nut-Nyloc 1/4-28

$4.99

$

Usually ships in 3-6 days

0

32

Exmark 126-6575

Decal-Exmark Logo

$5.99

$

In Stock, only 1 left!

0

33

Exmark 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 8

0

34

Exmark 126-0205

Latch-Bail

$11.99

$

Usually ships in 3-6 days

0

36

Exmark 3229-2

Bolt-Carriage 1/4-20 X 1

$3.49

$

In Stock, Qty 6

0

38

Exmark 112-8876

Bolt-Carriage 5/16-18 X 2
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 11

0

39

Exmark 116-2690

Bushing-Stepped

$13.99

$

In Stock, only 1 left!

0

40

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

42

Exmark 88-7200

Washer-Flat

$3.49

$

Usually ships in 3-6 days

0

43

Exmark 82-2190

Switch

$14.99

$

In Stock, Qty 12

0

44

Exmark 95-3805

Spring

$14.99

$

In Stock, Qty 8

0
