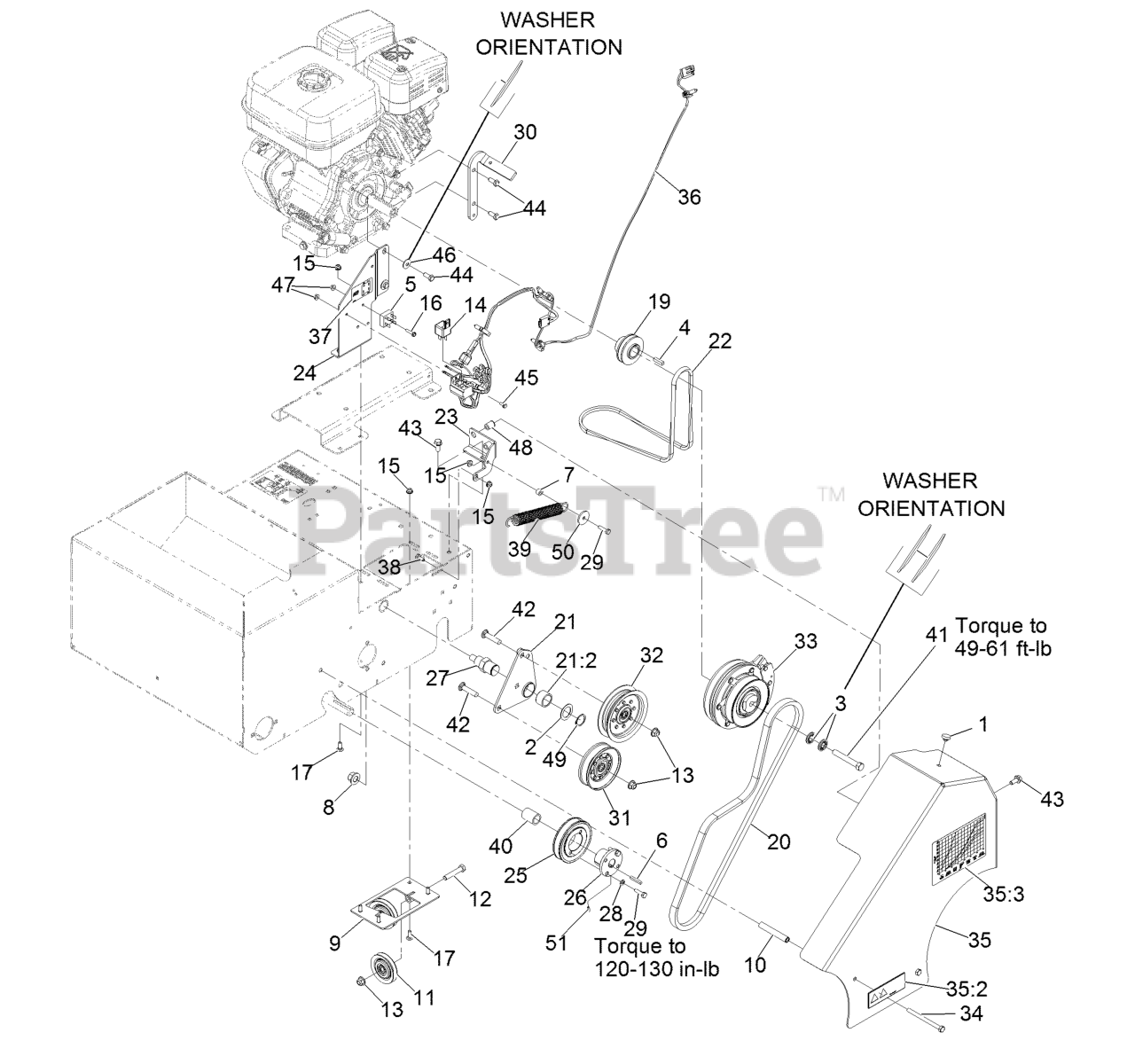

SDS270CSB20000 - Exmark 20" Slicer Seeder (SN: 402082300 - 404314158) (2018) Belt Drive Assembly Parts Diagram

20" Slicer Seeder

Belt Drive Assembly Parts Diagram

  • Title

1

Exmark 1-513658

Bumper

$6.49

$

In Stock, Qty 11

0

2

Exmark 1-543436

Washer-Spacer

$1.49

$

In Stock, Qty 9

0

3

Exmark 1-603610

Washer-Spring Disc 7/16

$5.49

$

In Stock, Qty 5

0

4

Exmark 1-807259

Key-Machine 1/4 X 1/4 X 1

$2.99

$

In Stock, only 2 left!

0

5

Exmark 37-7600

Rectifier-Bridge

$27.99

$

In Stock, only 1 left!

0

6

Exmark 92-0049

Key-Machine 3/16 X 3/16 X 1 1/4

$3.49

$

In Stock, Qty 17

0

7

Exmark 98-4799

Spacer

$7.99

$

In Stock, only 2 left!

0

8

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

9

Exmark 126-0418-03

Pulley-Tension

$45.99

$

In Stock, only 1 left!

0

10

Exmark 104-0502

Spacer-Kickstand, Long

$16.99

$

Usually ships in 3-6 days

0

11

Exmark 121-1965

Pulley-Idler

$45.99

$

In Stock, only 2 left!

0

12

Exmark 323-10

Screw-HH 3/8-16 X 2

$0.99

$

In Stock, Qty 20+

0

13

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

14

Exmark 105-4145

Relay

$49.99

$

Usually ships in 3-6 days

0

15

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

16

Exmark 106-9169

Screw-HWH

$7.99

$

In Stock, only 3 left!

0

17

Exmark 3229-1

Bolt-Carriage 1/4-20 X 3/4

$3.99

$

In Stock, Qty 20+

0

19

Exmark 116-9471

Pulley-Mule Drive

$72.99

$

Usually ships in 3-6 days

0

20

Exmark 116-9518

Belt-Seeder, Clutch
(Superseded to 116-9518-SL)

$47.99

$

In Stock, only 1 left!

0

21

Exmark 116-9519

Idler Arm ASM

$77.99

$

Usually ships in 3-6 days

0

21:2

Exmark 116-9538

Bushing

$15.99

$

Usually ships in 3-6 days

0

22

Exmark 116-9532

Belt-Mule Drive
(Superseded to 116-9532-SL)

$25.99

$

In Stock, only 1 left!

0

23

Exmark 116-9533-01

Bracket-Spring

$15.99

$

Usually ships in 3-6 days

0

24

Exmark 116-9534-01

Support-Engine

$30.99

$

Usually ships in 3-6 days

0

25

Exmark 121-2019

Sheave-Taper Lock

$101.99

$

Usually ships in 3-6 days

0

26

Exmark 121-2022

Bushing-Taper Lock

$36.99

$

Usually ships in 3-6 days

0

27

Exmark 116-9539

Pivot-Idler

$25.99

$

Usually ships in 3-6 days

0

28

Exmark 3253-3

Washer-Lock 1/4

$0.99

$

In Stock, Qty 20+

0

29

Exmark 321-6

Screw-HH 1/4-20 X 1

$0.99

$

In Stock, Qty 20+

0

30

Exmark 116-9551

Stop-Clutch

$21.99

$

Usually ships in 3-6 days

0

31

Exmark 116-9623

Pulley-Idler V

$35.99

$

Usually ships in 3-6 days

0

32

Exmark 116-9728

Pulley-Idler Flat (4.06-Inch)

$41.99

$

Usually ships in 3-6 days

0

33

Exmark 116-9852

Clutch-Electric

$638.99

$

Usually ships in 3-6 days

0

34

Exmark 322-19

Screw-HH 5/16-18 X 4

$6.49

$

In Stock, only 1 left!

0

35

Exmark 116-9925

Belt Guard ASM
(Superseded to 135-7597)

$172.99

$

Usually ships in 3-6 days

0

35:2

Exmark 93-7321

Decal-Danger

$29.99

$

Usually ships in 3-6 days

0

35:3

Exmark 116-8537

Decal-Seed Graph

$18.99

$

Usually ships in 3-6 days

0

36

Exmark 116-9926

Harness-Slicer/Seeder

$115.99

$

Usually ships in 3-6 days

0

37

Exmark 116-9985

Decal-Bridge Rectifier

$

$

Currently unavailable

38

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

39

Exmark 126-0091

Spring-Extension

$14.99

$

Usually ships in 3-6 days

0

40

Exmark 126-0108

Spacer

$9.49

$

Usually ships in 3-6 days

0

41

Exmark 3212-12

Screw-HH 7/16-20 X 3

$3.49

$

In Stock, only 4 left!

0

42

Exmark 3231-29

Bolt-Carriage 3/8-16 X 1 3/4

$7.49

$

Usually ships in 3-6 days

0

43

Exmark 3234-47

Screw-HH Flg 5/16-18 X 3/4

$2.99

$

In Stock, Qty 17

0

44

Exmark 3235-6

Screw-HH 5/16-24 X 3/4

$4.49

$

Usually ships in 3-6 days

0

45

Exmark 3290-321

Screw-HWH

$4.49

$

Usually ships in 3-6 days

0

46

Exmark 3290-456

Washer-Spring Disc

$2.99

$

In Stock, Qty 19

0

47

Exmark 32128-17

Nut-Flange #10-24 Top Lock

$0.99

$

In Stock, Qty 17

0

48

Exmark 32148-7

Nut-Insert

$3.99

$

Usually ships in 3-6 days

0

49

Exmark 32151-29

Ring-Retaining

$5.49

$

In Stock, Qty 16

0

50

Exmark 103995

Washer

$9.49

$

In Stock, only 2 left!

0

51

Exmark 126-0284

Screw-Set, Hs

$

$

Not available
