SDS270CSB20000 - Exmark 20" Slicer Seeder (SN: 316000000 - 399999999) (2016) Main Frame Assembly Parts Diagram

20" Slicer Seeder

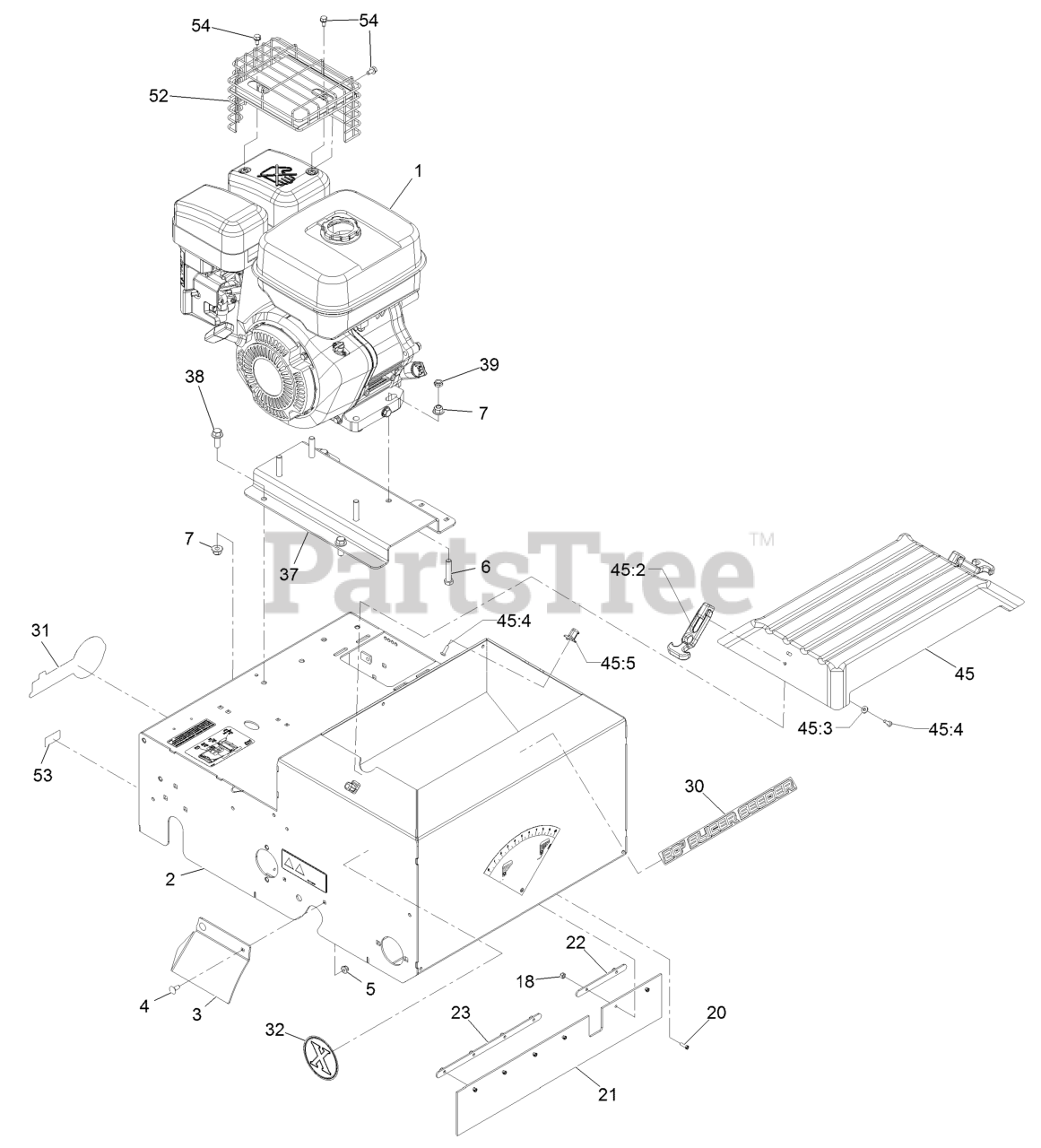

Main Frame Assembly Parts Diagram

  • Title

1

Engine-Subaru, Ex27

Note: Not serviced separately

$

$

Not available

2

Exmark 121-6196

FRAME ASM

$945.99

$

Usually ships in 3-6 days

0

3

Exmark 121-1896-01

GUARD-RH

$28.99

$

Usually ships in 3-6 days

0

4

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

5

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

20

Exmark 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 121-1990

GUARD-DUST

$34.99

$

Usually ships in 3-6 days

0

22

Exmark 121-1991

PLATE-RETAINER

$15.99

$

Usually ships in 3-6 days

0

23

Exmark 121-1992

PLATE-RETAINER

$20.99

$

Usually ships in 3-6 days

0

30

Exmark 126-7031

Decal-Slicer Seeder Logo

$

$

Currently unavailable

31

Exmark 126-6877

DECAL, EXMARK LOGO

$7.99

$

In Stock, Qty 9

0

32

Exmark 126-7194

Decal-X-Logo

$

$

Currently unavailable

37

Exmark 116-9524-01

PLATE-ENGINE

$66.99

$

Usually ships in 3-6 days

0

38

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

39

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

45

Exmark 126-1665

SEEDER COVER KIT

$117.99

$

Usually ships in 3-6 days

0

45:2

Exmark 103-4080

LATCH-RUBBER

$33.99

$

In Stock, Qty 5

0

45:3

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45:4

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

45:5

Exmark 103-4081

LATCH-KEEPER

$14.99

$

Usually ships in 3-6 days

0

52

Exmark 126-4255

GUARD, MUFFLER

$114.99

$

Usually ships in 3-6 days

0

53

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0

54

Exmark 104-2628

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0
