SDS270CSB20000 - Exmark 20" Slicer Seeder (SN: 315000000 - 315999999) (2015) Cutting Wheel Assembly Parts Diagram

20" Slicer Seeder

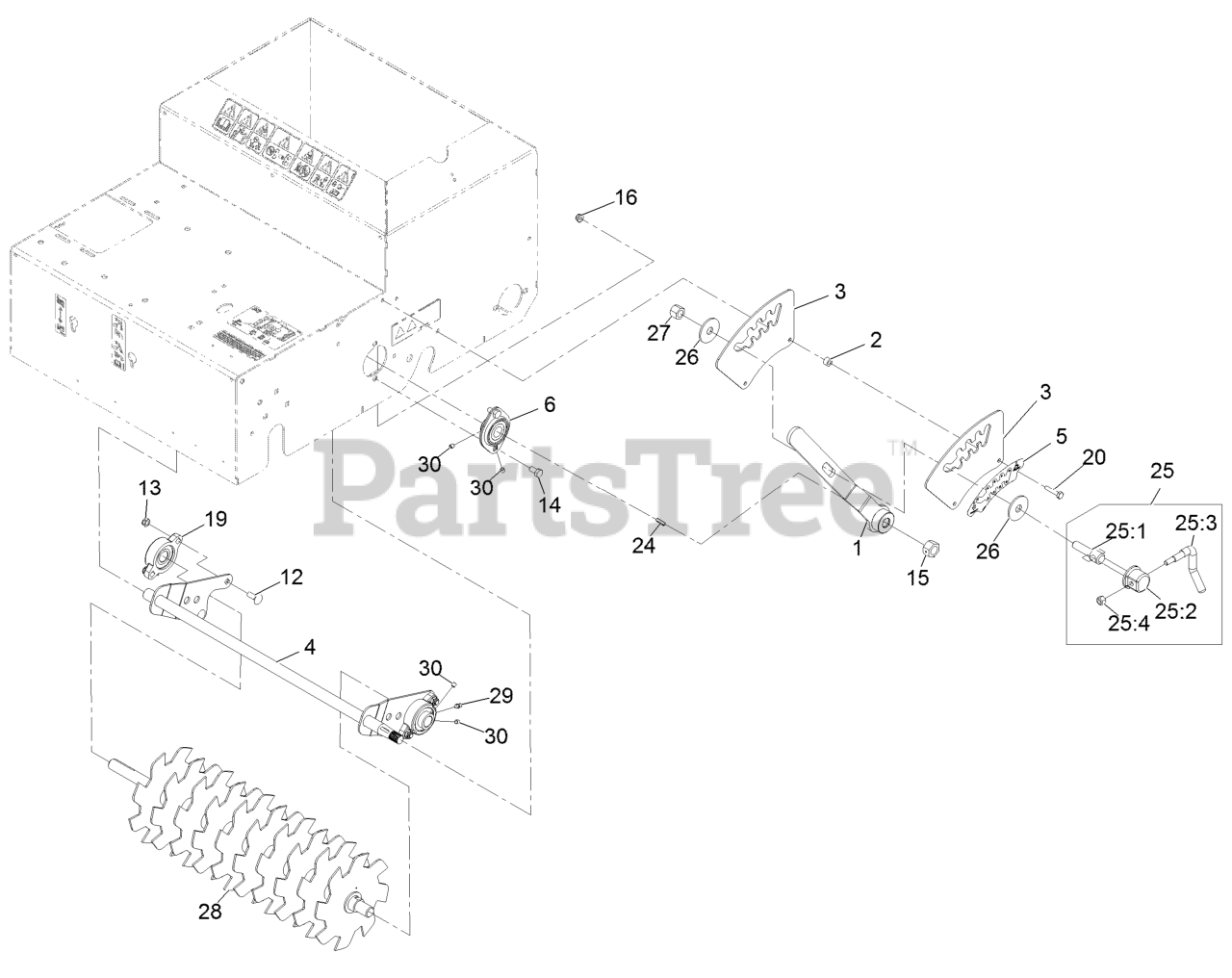

Cutting Wheel Assembly Parts Diagram

  • Title

1

Exmark 116-9932-03

HANDLE-HEIGHT

$121.99

$

Usually ships in 3-6 days

0

2

Exmark 98-4799

SPACER

$7.99

$

In Stock, only 2 left!

0

3

Exmark 116-9928

PLATE-HEIGHT

$21.99

$

Usually ships in 3-6 days

0

4

Exmark 126-0010-03

PIVOT-HEIGHT

$109.99

$

Usually ships in 3-6 days

0

5

Exmark 126-2446

DECAL-CUT DEPTH, SLICER/S

$12.99

$

Usually ships in 3-6 days

0

6

Exmark 121-1961

BEARING

$39.99

$

In Stock, only 4 left!

0

12

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

13

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

14

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

15

Exmark 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

In Stock, only 1 left!

0

16

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Exmark 116-9992

BEARING-FLANGE

$43.99

$

Usually ships in 3-6 days

0

20

Exmark 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

24

Exmark 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

25

Exmark 107-1664

LEVER ASM

$75.99

$

Usually ships in 3-6 days

0

25:1

Exmark 106-3239

SCREW-LOCK

$52.99

$

Usually ships in 3-6 days

0

25:2

Exmark 107-1644

CAP-LOCK

$38.99

$

In Stock, only 2 left!

0

25:3

Exmark 106-3241

107-1664
(Superseded to 107-1664)

$75.99

$

Usually ships in 3-6 days

0

25:4

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Exmark 86-1990

WASHER-THRUST

$3.99

$

In Stock, only 3 left!

0

27

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

28

Exmark 126-0034

SLICER SHAFT ASM

$536.99

$

Usually ships in 3-6 days

0

29

Exmark 302-19

FITTING-GREASE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.49

$

In Stock, Qty 8

0

30

Exmark 3245-35

SCREW-SET, HSH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$0.99

$

In Stock, Qty 10

0
