SD270SB20 - Exmark 20" Slicer Seeder (SN: 314000000 - 314999999) (2014) Main Frame Assembly Parts Diagram

20" Slicer Seeder

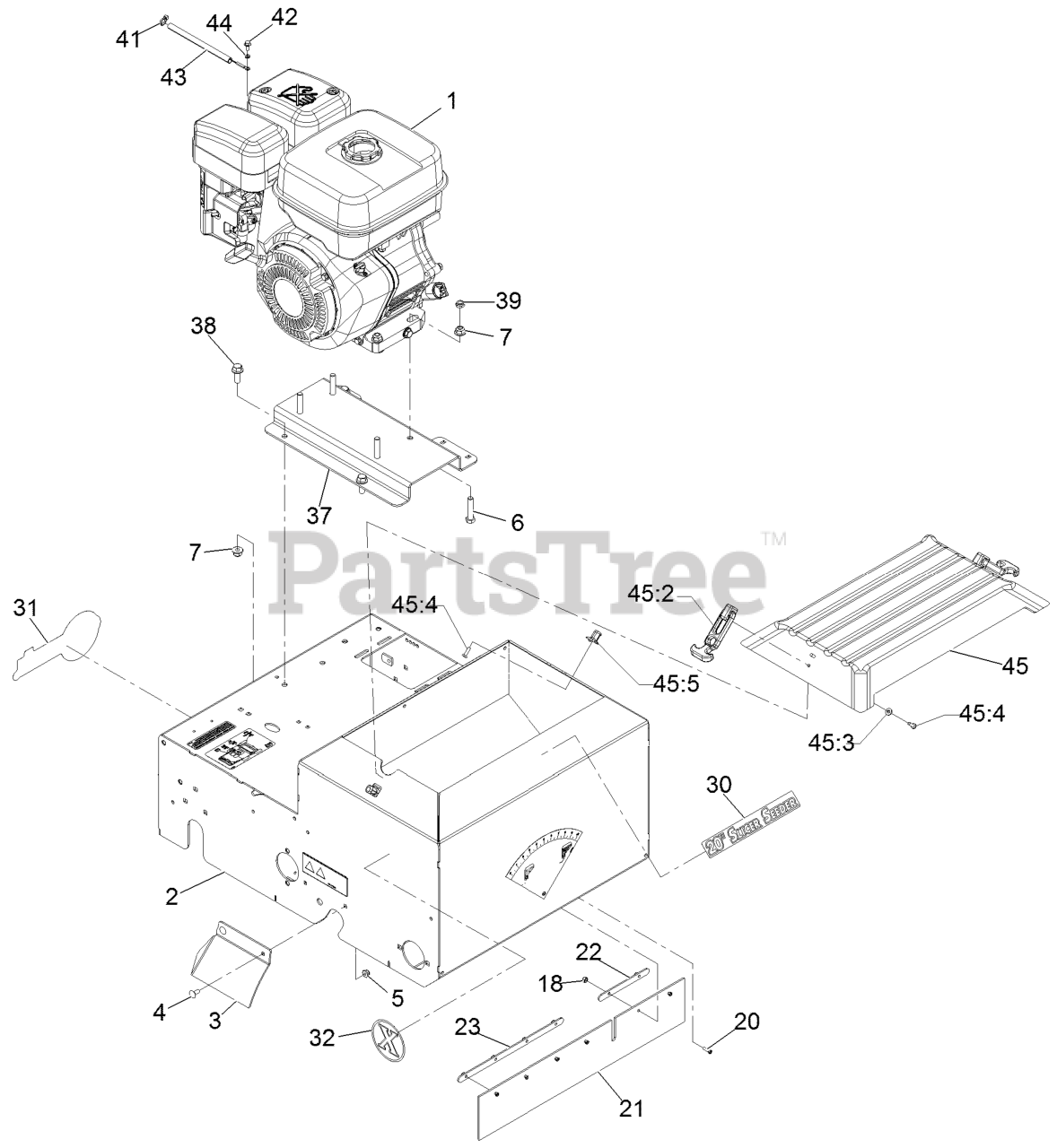

Main Frame Assembly Parts Diagram

  • Title
1

Engine-Subaru, Ex27

Note: Not serviced separately

$

$

Not available

2

Exmark 121-6196

FRAME ASM

$945.99

$

Usually ships in 3-6 days

0

3

$28.99

$

Usually ships in 3-6 days

0

4

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

5

$1.49

$

In Stock, Qty 20+

0

6

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

20

Exmark 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 121-1990

GUARD-DUST

$34.99

$

Usually ships in 3-6 days

0

22

Exmark 121-1991

PLATE-RETAINER

$15.99

$

Usually ships in 3-6 days

0

23

Exmark 121-1992

PLATE-RETAINER

$20.99

$

Usually ships in 3-6 days

0

30

Exmark 116-7011

DECAL-SLICER SEEDER 20

$

$

Not available

31

Exmark 103-2882

DECAL,EXMARK LOGO

$11.99

$

In Stock, Qty 20+

0

32

Exmark 116-7035

DECAL-EXMARK X-LOGO 3.26

$

$

Not available

37

Exmark 116-9524-01

PLATE-ENGINE

$66.99

$

Usually ships in 3-6 days

0

38

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

39

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

41

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

42

Exmark 120-4579

SCREW-HFH

$1.99

$

Usually ships in 3-6 days

0

43

Exmark 126-1000

RFI-SHEATHING

$89.99

$

Usually ships in 3-6 days

0

44

Exmark 43-5920

WASHER-LOCK, SPRING

$0.99

$

Usually ships in 3-6 days

0

45

Exmark 126-1665

SEEDER COVER KIT

$117.99

$

Usually ships in 3-6 days

0

45:2

Exmark 103-4080

LATCH-RUBBER

$33.99

$

In Stock, Qty 5

0

45:3

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45:4

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

45:5

Exmark 103-4081

LATCH-KEEPER

$14.99

$

Usually ships in 3-6 days

0
