SD-30 (11A-020B000) - White Outdoor Lawn Boss 20" Walk-Behind Mower (2001) Deck & Handle Assembly Parts Diagram

Lawn Boss 20" Walk-Behind Mower

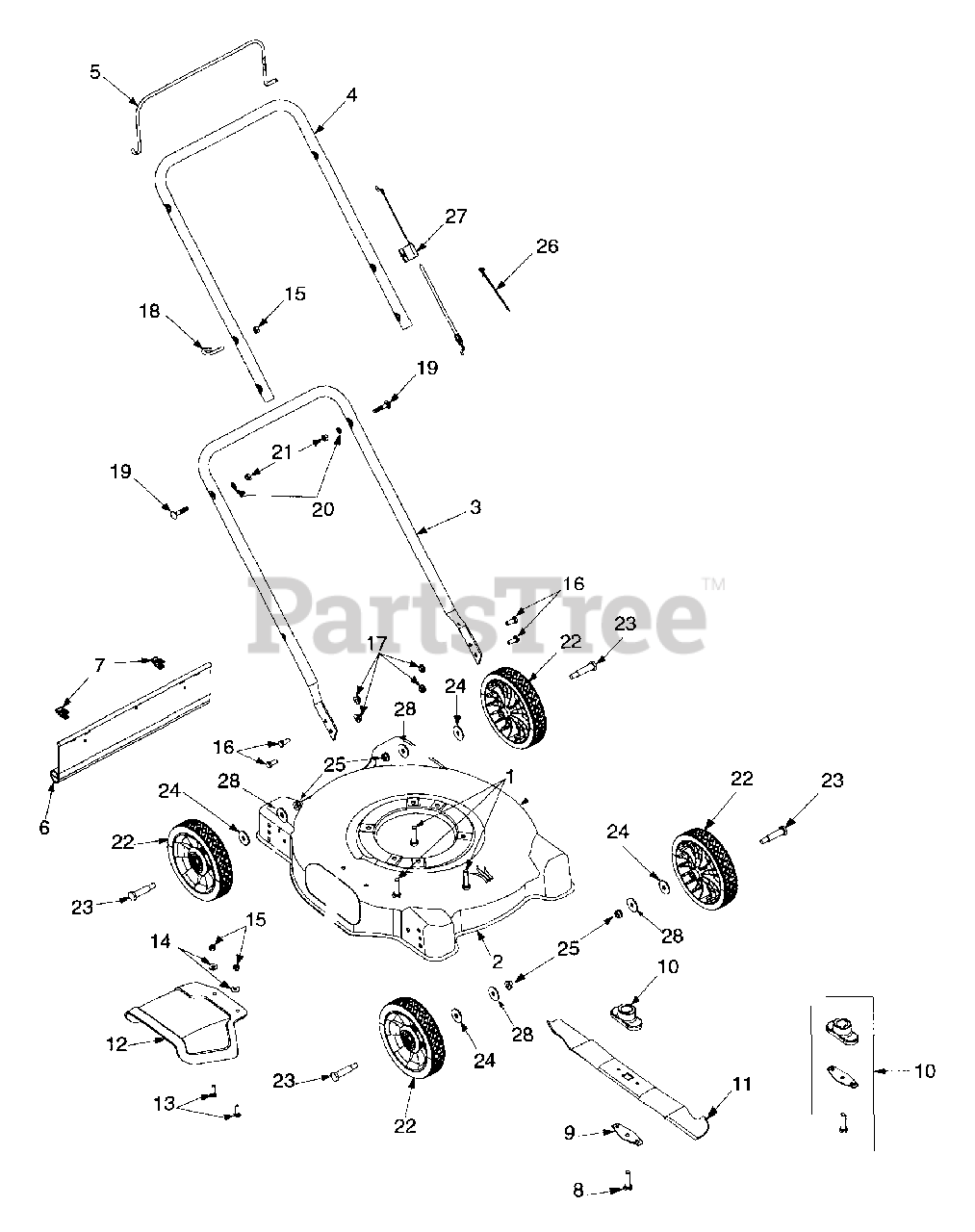

Deck & Handle Assembly Parts Diagram

  • Title

1

White Outdoor 710-0654A

Hex Ind Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

2

White Outdoor 782-0048

Cutting Deck 20"

Variations

White Outdoor 782-0048-0483

DECK ASSEMBLY-20IN - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 782-0048-0638

DECK ASSEMBLY 20" RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 782-0048-0606

DECK ASSEMBLY-20IN - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 782-0048-0691

DECK ASSEMBLY-20IN - BLACK JACK (0691)

$

$

Not available

$

$

3

White Outdoor 749-1077

Lower Handle

Variations

White Outdoor 749-1077-0637

LOWER HANDLE-POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 749-1076

Upper Handle
(Superseded to 749-1076-0637)

Variations

White Outdoor 749-1076-0637

HANDLE UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 747-0976A

Control Handle (Bail)
(Superseded to 747-0976B)

Variations

White Outdoor 747-0976A-0637

Blade Control Bail - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$25.99

$

In Stock, only 1 left!

0

6

White Outdoor 731-0872A

Rear Flap
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

7

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

8

White Outdoor 710-1044

Screw 3/8-24 x 1.5" Group 8

$3.99

$

In Stock, Qty 7

0

9

White Outdoor 936-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 17

0

10

White Outdoor 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

$16.99

$

In Stock, only 1 left!

0

11

White Outdoor 742-0640

Cutting Blade
(Superseded to 942-0640)

$28.99

$

In Stock, only 1 left!

0

12

White Outdoor 731-0064

Discharge Chute
(Superseded to 731-0064A)

$22.99

$

In Stock, only 1 left!

0

13

White Outdoor 710-0932

Carriage Screw 1/4-20 x 1.0"
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

14

White Outdoor 736-0173

Flat Washer

$4.49

$

In Stock, only 4 left!

0

15

White Outdoor 712-0324

Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

16

White Outdoor 710-3008

Hex Bolt 5/16-18

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 712-3004A

Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 710-1205

Eye Bolt

$3.99

$

In Stock, only 2 left!

0

19

White Outdoor 710-0262

Carriage Bolt 5/16-18 x 1.5"

$3.99

$

In Stock, Qty 12

0

20

White Outdoor 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-0267

Nut 5/16-18
(Superseded to 912-3010)

$

$

Not available

22

White Outdoor 734-1779

Wheel
(Superseded to 734-1779A)

$20.99

$

In Stock, only 3 left!

0

23

White Outdoor 738-0533

Shoulder Screw .498 x 1.635

$7.99

$

Usually ships in 3-6 days

0

24

White Outdoor 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 712-0798

Flange Lock Nut

$4.49

$

In Stock, only 2 left!

0

26

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

27

White Outdoor 746-0957

Control Cable (37.25" lg.)
(Superseded to 946-0957)

$17.99

$

In Stock, Qty 20+

0

28

White Outdoor 736-0331

Bell Washer

$3.99

$

In Stock, Qty 16

0
