SCZII72V-38FX-EFI - Scag Cheetah II 72" Zero-Turn Mower, 38hp Kawasaki (SN: S8500000 - S8599999) SCZII FUEL SYSTEM Parts Diagram

Cheetah II 72" Zero-Turn Mower, 38hp Kawasaki

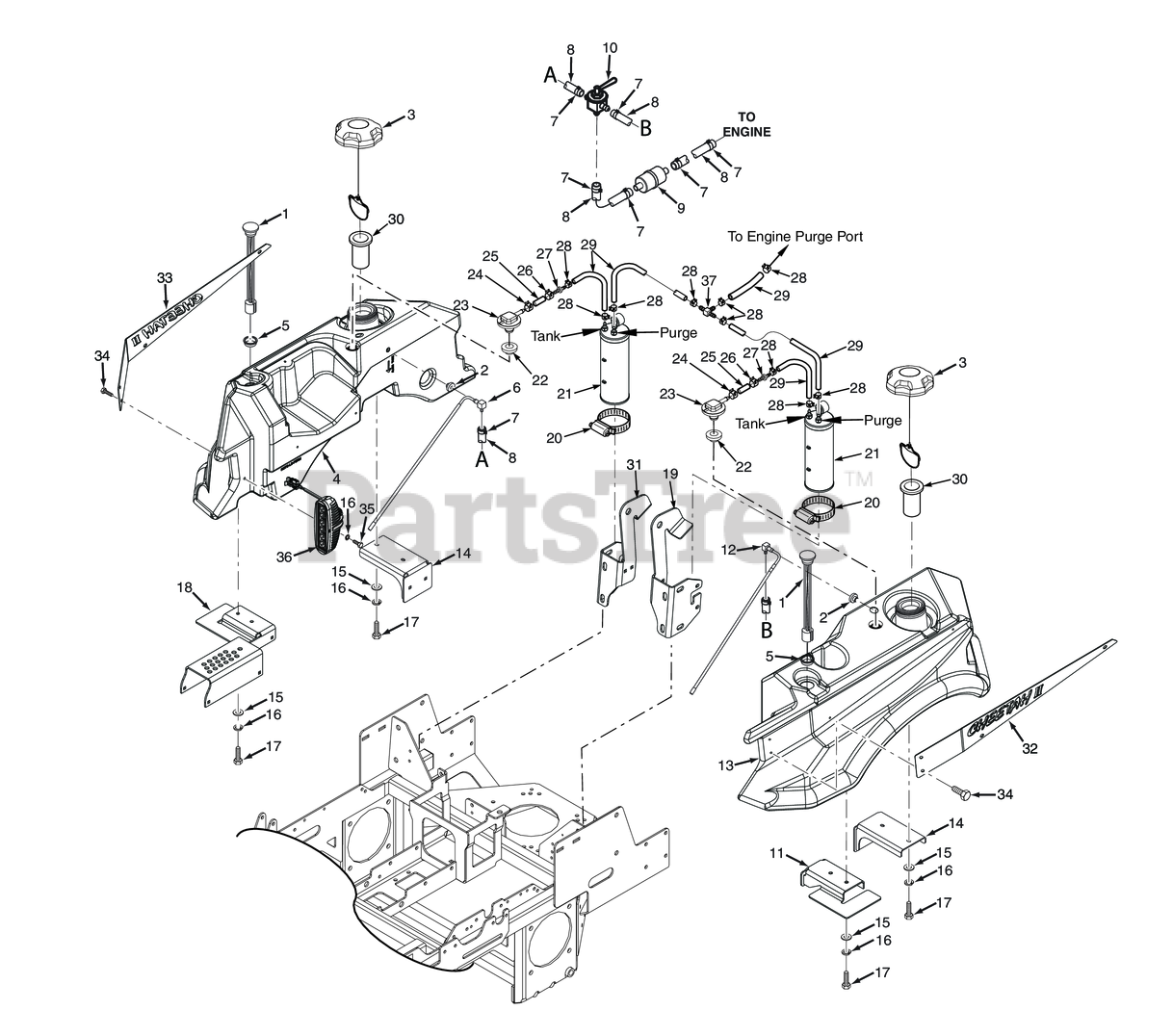

SCZII FUEL SYSTEM Parts Diagram

  • Title

1

Scag 484243

Fuel Gauge Assembly

$80.99

$

Usually ships in 2-12 days

0

2

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

3

Scag 484286

Fuel Cap w/ Tether (E.P.A.)

$53.99

$

Usually ships in 2-12 days

0

3

Scag 484297

Fuel Cap w/Tethered - California Models Only

$63.99

$

Usually ships in 2-12 days

0

4

Scag 463273

Fuel Tank Assembly, RH

$595.99

$

Usually ships in 2-12 days

0

5

Scag 484242

Grommet, Fuel Gauge

$21.99

$

In Stock, only 2 left!

0

6

Scag 484553

Fuel Tube Assembly

$30.99

$

Usually ships in 2-12 days

0

7

Scag 48059-01

Clamp, Fuel Hose 1/4" Hose I.D.

$0.99

$

In Stock, Qty 7

0

8

Scag 483617

Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) - Order by Inch

$0.99

$

In Stock, Qty 20+

0

9

Fuel Filter

Note: Available through the individual engine manufacturer.

$

$

Not available

10

Scag 482212

Valve, Fuel Shut-Off

$43.99

$

In Stock, only 1 left!

0

11

Scag 428233

Mounting Bracket, Fuel Tank Front

$

$

Not available

12

Scag 484552

Fuel Tube Assembly, LH

$30.99

$

In Stock, only 2 left!

0

13

Scag 463272

Fuel Tank Assembly, LH

$627.99

$

Usually ships in 2-12 days

0

14

Scag 428261

Mounting Bracket, Fuel Tank Rear

$

$

Not available

15

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

16

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 463235

Adjustment Bracket, Upper Cut Height

$

$

Not available

19

Scag 427177

ROPS Mount, LH, 29CV-EFI

$

$

Not available

20

Scag 48136-17

Clamp, 3-1/2" Max. Dia.

$7.49

$

Usually ships in 2-12 days

0

21

Scag 484342

Carbon Canister - SVR-52V / SVR-61V

$101.99

$

In Stock, only 2 left!

0

Scag 484366

Dust Filter, Carbon Canister

$2.99

$

In Stock, Qty 14

0

22

Scag 484285

Grommet, Viton,

$

$

Not available

23

Scag 484333

Remote Vent, No Valve

$14.99

$

In Stock, only 2 left!

0

24

Scag 48059-02

CLAMP, FUEL HOSE(KAWASAKI ONLY)

$0.99

$

In Stock, Qty 19

0

25

Scag 484347

Hose, 1/4" Vapor Recovery (order by inch)

$0.99

$

In Stock, Qty 20+

0

26

Scag 48059-02

CLAMP, FUEL HOSE(KAWASAKI ONLY)

$0.99

$

In Stock, Qty 19

0

27

Scag 484343-01

Mender, 1/4 x 3/16 w/0.02 Hole

$26.99

$

In Stock, Qty 5

0

28

Scag 48059-05

Clamp, Vapor Recovery Hose 3/16"

$4.49

$

In Stock, only 3 left!

0

29

Scag 484345

Hose, Vapor Recovery 3/16" (order by inch)

$0.99

$

In Stock, Qty 20+

0

30

Scag 484279-01

Tube, Fuel Tank Insert - 4"

$4.49

$

In Stock, only 1 left!

0

31

Scag 427178

ROPS Mount, RH, 29CV-EFI
(Superseded to 428575)

$

$

Not available

32

Scag 428229

Plate, LH Fuel Tank

$49.99

$

Usually ships in 2-12 days

0

33

Scag 428195

Plate, RH Fuel Tank

$49.99

$

Usually ships in 2-12 days

0

34

Scag 04017-04

CAP SCREW, 1/4-20 X 1/2" SERRATED FLANGE HEX

$0.99

$

In Stock, Qty 20+

0

35

Scag 04015-11

SOC HD CAPSCR, 5/16-18 X .75

$0.99

$

Usually ships in 2-12 days

0

36

Scag 486672

Light Assembly

$129.99

$

Usually ships in 2-12 days

0

37

Scag 48935-02

Tee, 3/16 x 3/16 x 3/16 Union, Hose Barb

$28.99

$

Usually ships in 2-12 days

0
