SCZII72V-38CV-EFI - Scag Cheetah II 72" Zero-Turn Mower, 38hp Kohler (SN: V9500000 - V9599999) SCZII STEERING COMPONENTS Parts Diagram

Cheetah II 72" Zero-Turn Mower, 38hp Kohler

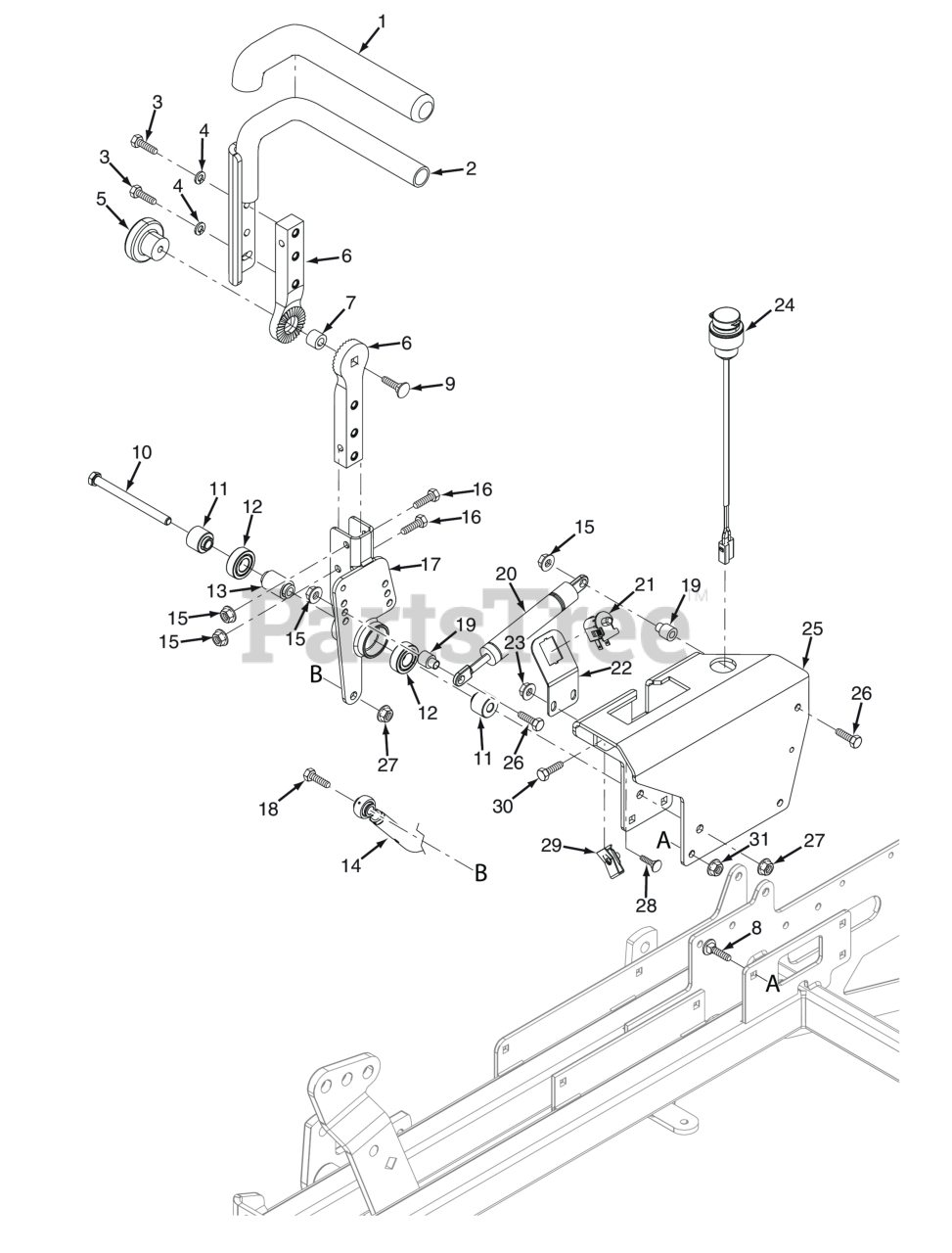

SCZII STEERING COMPONENTS Parts Diagram

  • Title

1

Scag 484376

Grip, Control Handle

$10.99

$

Usually ships in 2-12 days

0

2

Scag 462805

Handle Bar w/Grip - RH

$62.99

$

Usually ships in 2-12 days

0

Scag 462804

Handle Bar w/Grip - LH

$62.99

$

Usually ships in 2-12 days

0

3

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

4

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

5

Scag 483269

Knob, Control Handle

$24.99

$

In Stock, only 1 left!

0

6

Scag 483238

Pivot, Control Lever

$36.99

$

Usually ships in 2-12 days

0

7

Scag 483250

Spacer, Rubber

$9.49

$

In Stock, only 3 left!

0

8

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

9

Scag 04003-05

Bolt, RDHD Carr. 3/8-16 x 1-1/2 (52" & 61")

$0.99

$

In Stock, Qty 18

0

10

Scag 04001-23

Bolt, 3/8 - 16 x 4 - 1/2" Hex Head

$2.49

$

In Stock, Qty 7

0

11

Scag 43607

Spacer, Controls

$5.99

$

Usually ships in 2-12 days

0

12

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$12.99

$

In Stock, Qty 20+

0

13

Scag 43600

Spacer, Bearing

$10.99

$

Usually ships in 2-12 days

0

14

Scag 486555

Steering Link Assembly, SCZII

$81.99

$

Usually ships in 2-12 days

0

Scag 486608

Turnbuckle, 3/8-24

$6.99

$

Usually ships in 2-12 days

0

Scag 486609

Rod End, Male Trunion, 3/8-24

$18.99

$

Usually ships in 2-12 days

0

Scag 486610

Rod End, Female Trunion, 3/8-24

$19.99

$

Usually ships in 2-12 days

0

Scag 04020-26

Nut, 3/8-24 UNF-2B LH Thread

$1.99

$

In Stock, only 4 left!

0

Scag 04020-25

Nut, 3/8-24 UNF R.H. Thread

$0.99

$

In Stock, only 2 left!

0

15

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

0

17

Scag 453077

Pivot Weldment, Control Arm RH

$84.99

$

Usually ships in 2-12 days

0

Scag 453076

Pivot Weldment, Control Arm LH

$72.99

$

Usually ships in 2-12 days

0

18

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV

$0.99

$

In Stock, Qty 20+

0

19

Scag 43602

Spacer, Pump Dampener

$2.99

$

In Stock, only 2 left!

0

20

Scag 484193

Damper, Steering

$72.99

$

In Stock, only 2 left!

0

21

Scag 481638

Switch, Interlock, Normally Open

$15.99

$

In Stock, Qty 20+

0

22

Scag 425905

Bracket, Operator Presence Switch

$11.99

$

Usually ships in 2-12 days

0

23

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

24

Scag 485568

Power Plug, 12V

$30.99

$

Usually ships in 2-12 days

0

25

Scag 463234

Control Plate w/ Decals RH

$85.99

$

Usually ships in 2-12 days

0

Scag 463233

Control Weldment w/ Decal

$96.99

$

Usually ships in 2-12 days

0

26

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 6

0

27

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

28

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

29

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

0

30

Scag 04107-03

Bolt, Hex Head 3/8-16 x 1-1/4" with Thread Lock Patch

$0.99

$

In Stock, Qty 5

0

31

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0
