SCZII72V-37BV-EFI - Scag Cheetah II 72" Zero-Turn Mower, 37hp Vanguard (SN: V6100000 - V6199999) SCZII SPEED CONTROL COMPONENTS Parts Diagram

Cheetah II 72" Zero-Turn Mower, 37hp Vanguard

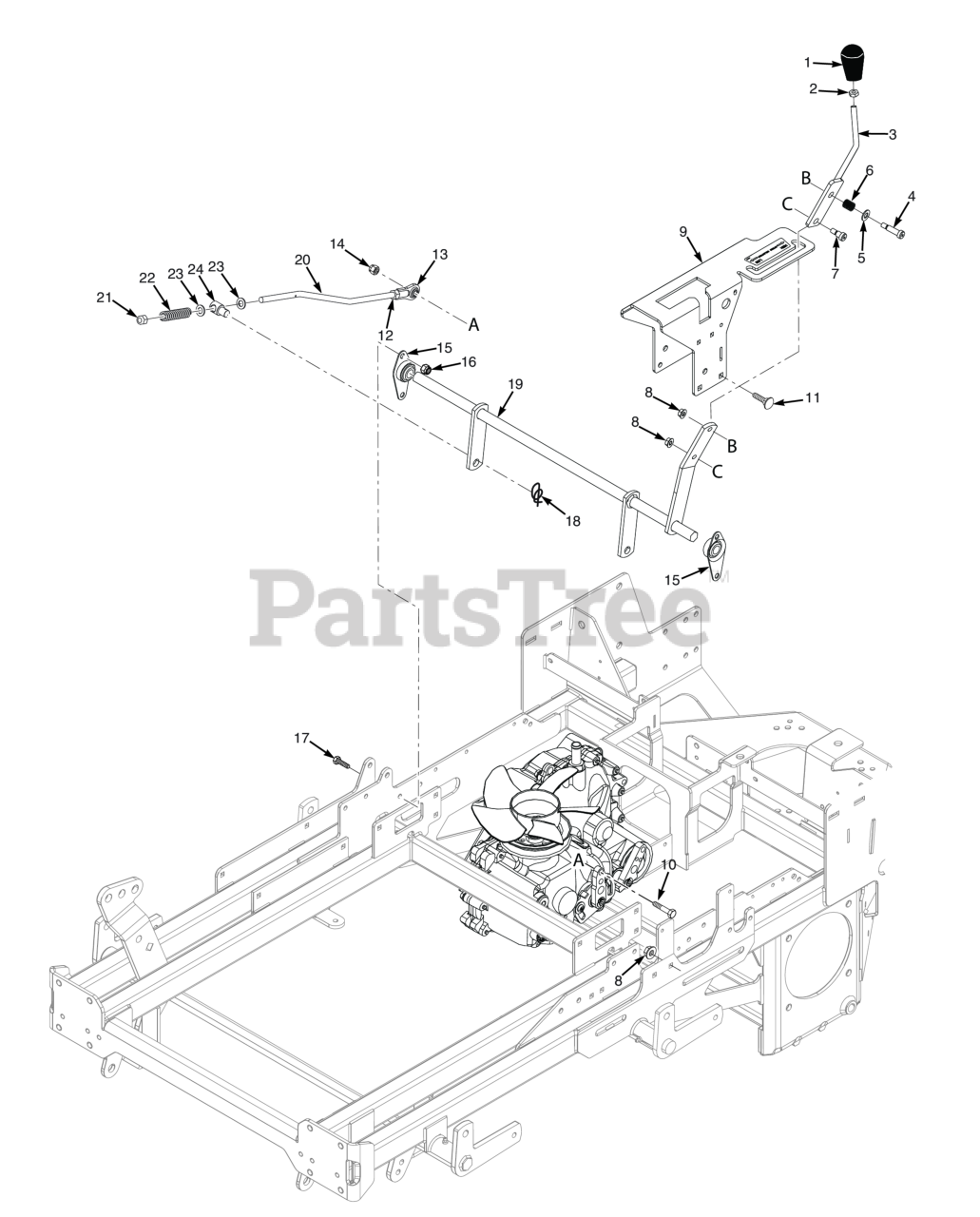

SCZII SPEED CONTROL COMPONENTS Parts Diagram

  • Title
1

Scag 484093

Knob, Soft Touch

$12.99

$

Usually ships in 2-12 days

0

2

Scag 04020-12

Nut, Jam 3/8-16

$0.99

$

In Stock, only 3 left!

0

3

Scag 453097

Lever Weldment, Speed Control SCZII

$36.99

$

Usually ships in 2-12 days

0

4

Scag 04009-11

Bolt, Shoulder 3/8 x 1"

$2.99

$

In Stock, only 4 left!

0

5

Scag 04040-05

Flatwasher, 3/8 (.406 x .812 x .065)

$0.99

$

In Stock, only 4 left!

0

6

Scag 483601

Spring, Speed Control Slide

$2.99

$

Usually ships in 2-12 days

0

7

Scag 04009-14

Bolt, Shoulder 3/8 x .375"

$5.99

$

In Stock, only 3 left!

0

8

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

9

Scag 463233

Control Weldment w/ Decal

$96.99

$

Usually ships in 2-12 days

0

10

Scag 04001-10

Bolt, 5/16 - 18 x 1 - 1/4" Hex Head

$0.99

$

In Stock, Qty 20+

0

11

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

12

Scag 04020-14

HEX NUT, 3/8-24 R.H. THREAD

$0.99

$

In Stock, only 3 left!

0

13

Scag 484177

Rod End, 3/8-24

$21.99

$

In Stock, only 1 left!

0

14

Scag 04021-04

Nut, Center Lock, 5/16-18(32)

$0.99

$

In Stock, Qty 20+

0

15

Scag 484149

Bearing, Self Align

$12.99

$

Usually ships in 2-12 days

0

16

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 17

0

17

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04069-02

Pin, Rue Cotter 1/2" Dia.

$4.99

$

In Stock, only 1 left!

0

19

Scag 453066

Speed Control Bellcrank Weldment

$102.99

$

Usually ships in 2-12 days

0

20

Scag 486500

Speed Linkage Assembly (INCL. 12,13,21,22

$74.99

$

Usually ships in 2-12 days

0

21

Scag 04021-27

Nut, Elastic Stop 3/8-24

$9.99

$

Usually ships in 2-12 days

0

22

Scag 484175

Spring, Brake

$31.99

$

Usually ships in 2-12 days

0

23

Scag 04041-45

FW, .375-.376/.380 X .734 X .063

$5.49

$

Usually ships in 2-12 days

0

24

Scag 485317

BUSHING, PIVOT SLIDE

$13.99

$

Usually ships in 2-12 days

0
