SCZII72V-37BV-EFI - Scag Cheetah II 72" Zero-Turn Mower, 37hp Vanguard (SN: S8400000 - S8499999) SCZII BV-EFI ELECTRICAL SCHEMATIC Parts Diagram

Cheetah II 72" Zero-Turn Mower, 37hp Vanguard

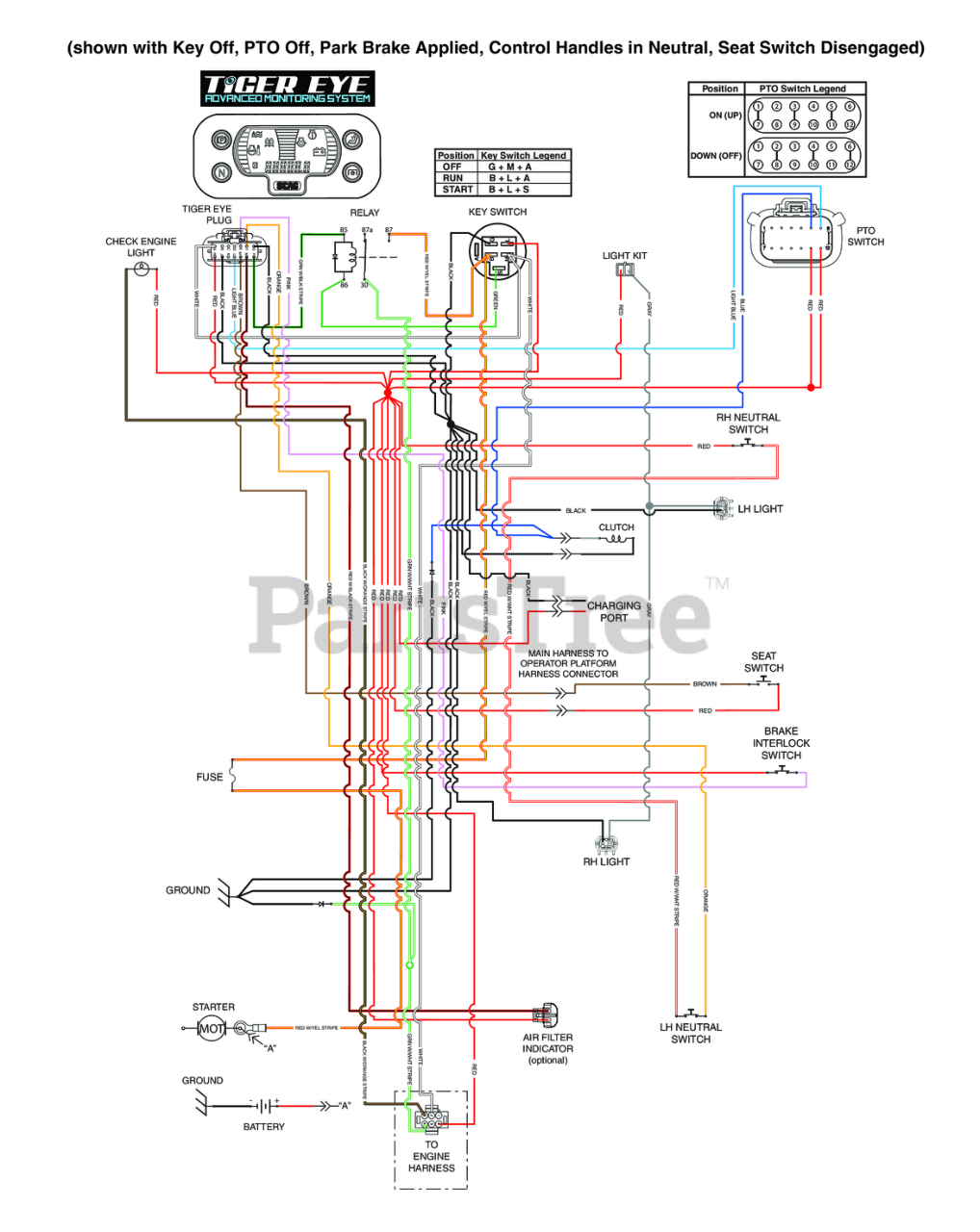

SCZII BV-EFI ELECTRICAL SCHEMATIC Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
