SCZII72V-37BV-EFI (06347) - Scag Cheetah II 72" Zero-Turn Mower, 37hp Vanguard (SN: P9800001 - P9899999) SHEET METAL COMPONENTS Parts Diagram

Cheetah II 72" Zero-Turn Mower, 37hp Vanguard

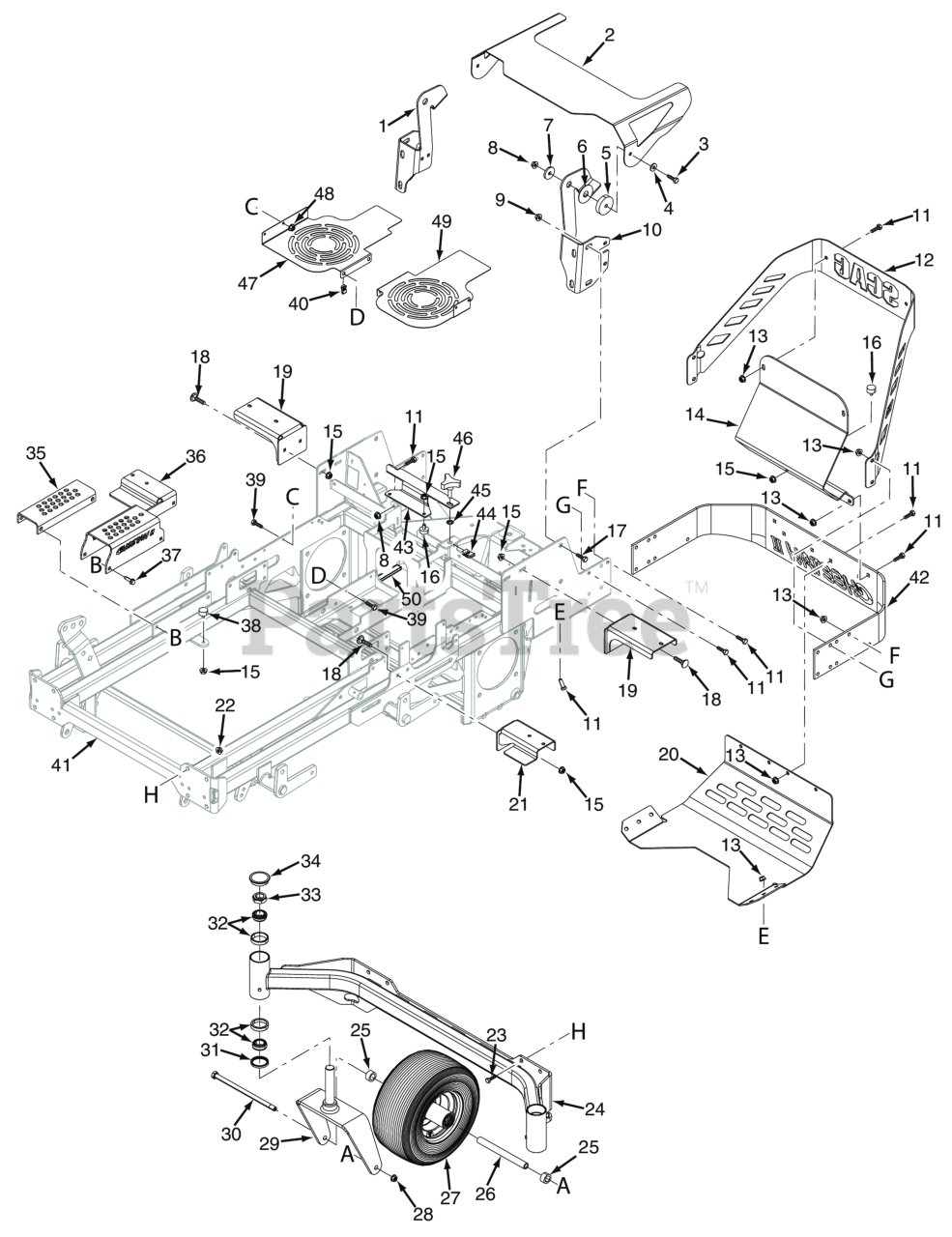

SHEET METAL COMPONENTS Parts Diagram

  • Title

1

Scag 427178

ROPS Mount, RH, 29CV-EFI
(Superseded to 428575)

$

$

Not available

2

Scag 428204

Hood, SCZII

$

$

Not available

3

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

4

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

5

Scag 43740

Spacer, Hood

$28.99

$

Usually ships in 2-12 days

0

6

Scag 483471

Disc, Anti-Friction

$7.99

$

Usually ships in 2-12 days

0

7

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, Qty 5

0

8

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 04117-04

Nut, Elastic Stop 1/2-13, (STT-52 & STTII-52)

$1.49

$

In Stock, Qty 8

0

10

Scag 427177

ROPS Mount, LH, 29CV-EFI

$

$

Not available

11

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 7

0

12

Scag 428202

Engine Cover, Sides

$

$

Not available

13

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

14

Scag 428182

Engine Cover, Rear

$

$

Not available

15

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

16

Scag 481284

Bumper, Rubber 5/16-18 x 5/8"

$16.99

$

In Stock, only 3 left!

0

17

Scag 04001-70

Bolt, Hex Head 1/2-13 x 1-1/4"

$1.49

$

In Stock, Qty 5

0

18

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

19

Scag 428261

Mounting Bracket, Fuel Tank Rear

$

$

Not available

20

Scag 428207

Skid Plate, Rear

$

$

Not available

21

Scag 428233

Mounting Bracket, Fuel Tank Front

$

$

Not available

22

Scag 04117-05

Nut, 7/16-14 Flange Elastic Stop

$0.99

$

Usually ships in 2-12 days

0

23

Scag 04001-28

BOLT, HEX HEAD, 7/16-14 X 1-1/4

$0.99

$

In Stock, Qty 12

0

24

Scag 452193

Caster Support Weldment, 61V

$

$

Not available

24

Scag 452194

Caster Support Weldment, 72V

$

$

Not available

25

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

26

Scag 43583

Sleeve, Caster Wheel (61V, 72A/VS)

$13.99

$

In Stock, Qty 20+

0

27

Scag 462314

Caster Wheel Assembly 61V (LH)

$641.99

$

In Stock, only 3 left!

0

27

Scag 482620

Rim Assembly, 61A & 72A (Inc. item 55)

$238.99

$

Usually ships in 2-12 days

0

28

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

29

Scag 453110

Yoke Weldment

$97.99

$

Usually ships in 2-12 days

0

30

Scag 04001-167

Bolt, Hex Head 1/2-13 x 9-1/2" (61V & 72A/VS)

$5.99

$

In Stock, Qty 20+

0

31

Scag 481025

Seal, 2.00" O.D. x 1.625" Bore

$4.99

$

In Stock, Qty 20+

0

32

Scag 48668

BEARING & CUP, TAPERED SPINDLE

$23.99

$

In Stock, Qty 20+

0

33

Scag 04021-20

Nut, Hex Elastic Stop 1.0"-14

$4.99

$

In Stock, Qty 20+

0

34

Scag 484195

Cap, Grease

$2.49

$

In Stock, Qty 20+

0

35

Scag 452408

Adjustment Bracket, Lower Cut Height

$65.99

$

Usually ships in 2-12 days

0

36

Scag 428228

Bracket, Upper Cutting Height

$

$

Not available

37

Scag 04006-02

Bolt, Hex Wshr Head 5/16-18 x 1-1/4"

$1.99

$

Usually ships in 2-12 days

0

38

Scag 484201

Bumper, Rubber

$3.49

$

Usually ships in 2-12 days

0

39

Scag 04017-05

Bolt, Serrated Flange Hex Head 1/4 x 20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

40

Scag 04110-01

Bolt, Hex Head 3/8-16 x 1"

$1.49

$

In Stock, Qty 18

0

41

Scag 463242

Frame w/ Decals

$2350.99

$

Usually ships in 2-12 days

0

42

Scag 428206

Bumper, Rear

$

$

Not available

43

Scag 428236

Cover, Battery Box
(Superseded to 428236-G)

$23.99

$

Usually ships in 0 days

0

44

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

0

45

Scag 04024-02

Nut, Push-On - 3/8" Dia.

$1.49

$

In Stock, Qty 5

0

46

Scag 481625-01

Knob, w/stud 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

0

47

Scag 425300

Fan Cover, RH

$

$

Not available

48

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

49

Scag 425299

Fan Cover, LH

$

$

Not available

50

Scag 48661

PAD, BATTERY SUPPORT

$4.99

$

Usually ships in 2-12 days

0
