Scag SCZII72V-37BV-EFI (06347) - Scag Cheetah II 72" Zero-Turn Mower, 37hp Vanguard (SN: P9800001 - P9899999) CUTTER DECK CONTROLS Parts Lookup with Diagrams

1

Scag 481477

Mounting Bracket, Fuel Tank

$4.49

$

In Stock, only 2 left!

2

Scag 462253

Deck Latch Assembly w/Grip

$38.99

$

Usually ships in 2-12 days

3

Scag 43668

Bushing, .502 O.D.

$2.99

$

Usually ships in 2-12 days

4

Scag 484191

Spring, Torsion - Lever Return

$7.49

$

Usually ships in 2-12 days

5

Scag 483345

Lanyard, Deck Height Pin Assembly

$11.99

$

In Stock, Qty 6

6

Scag 04059-01

Pin, Locking

$6.49

$

Usually ships in 2-12 days

7

Scag 463235

Adjustment Bracket, Upper Cut Height

$

Not available 

8

Scag 452408

Adjustment Bracket, Lower Cut Height

$65.99

$

Usually ships in 2-12 days

9

Scag 462883

Slide, Height Adjustment Assembly (INCL. 10,11,12)

$104.99

$

Usually ships in 2-12 days

10

Scag 43487

Pin, Deck Lift

$26.99

$

In Stock, only 1 left!

11

Scag 04050-18

Retaining Ring, 1/2" Ext. "E"

$17.99

$

In Stock, Qty 8

12

Scag 484141

Linkage, Deck Lift

$101.99

$

Usually ships in 2-12 days

12

Scag 481765

Rod End, 1/2-20 Female RH Thread

$41.99

$

In Stock, only 1 left!

12

Scag 481766

Rod End, 1/2-20 Female LH Thread

$48.99

$

In Stock, only 1 left!

12

Scag 04020-27

Nut, 1/2-20 UNF-2B RH Thread

$4.49

$

In Stock, Qty 5

12

Scag 04020-28

Bolt, Hex Hd. 5/16-18 x 3-3/4"

$3.49

$

In Stock, Qty 8

13

Scag 04001-72

Hex Head Bolt, 1/2-13 x 2"

$1.99

$

Usually ships in 2-12 days

14

Scag 04040-07

Flatwasher, 1/2 - .531 x 1.062 x .095

$0.99

$

In Stock, Qty 5

15

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

16

Scag 04108-04

Capscrew, 5/8-11 x 1-1/2"

$2.99

$

Usually ships in 2-12 days

17

Scag 04030-07

Lockwasher, 5/8" Spring

$0.99

$

In Stock, Qty 19

18

Scag 04006-02

Bolt, Hex Wshr Head 5/16-18 x 1-1/4"

$1.99

$

Usually ships in 2-12 days

19

Scag 04001-22

Capscrew, Hex Head 3/8-16 x 2.75"

$1.49

$

In Stock, Qty 10

20

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

21

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

22

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

23

Scag 424504

Foot Pedal, Height Adjustment

$14.99

$

In Stock, only 1 left!

24

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

25

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

26

Scag 481598

Spring, Helper (61" & 72" Cutter Decks Only)

$65.99

$

Usually ships in 2-12 days

27

Scag 428214

Link, Deck Lift

$31.99

$

Usually ships in 2-12 days

28

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 20+

29

Scag 431018

Pivot, Deck Link

$6.49

$

Usually ships in 2-12 days

30

Scag 04001-153

Bolt, Hex Head 1/2-13 x 2-1/4"

$2.49

$

In Stock, Qty 8

31

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

32

Scag 482628

Chain, Deck Lift

$11.99

$

In Stock, only 3 left!

33

Scag 485528

Lever, Deck Level

$22.99

$

Usually ships in 2-12 days

34

Scag 04003-42

Bolt, Carriage 7/16-14 x 2-1/4"

$2.49

$

In Stock, only 3 left!

35

Scag 04021-11

HEX LOCKNUT, ELASTIC STOP, 7/16-14

$0.99

$

In Stock, Qty 10

36

Scag 481284

Bumper, Rubber 5/16-18 x 5/8"

$16.99

$

In Stock, only 3 left!

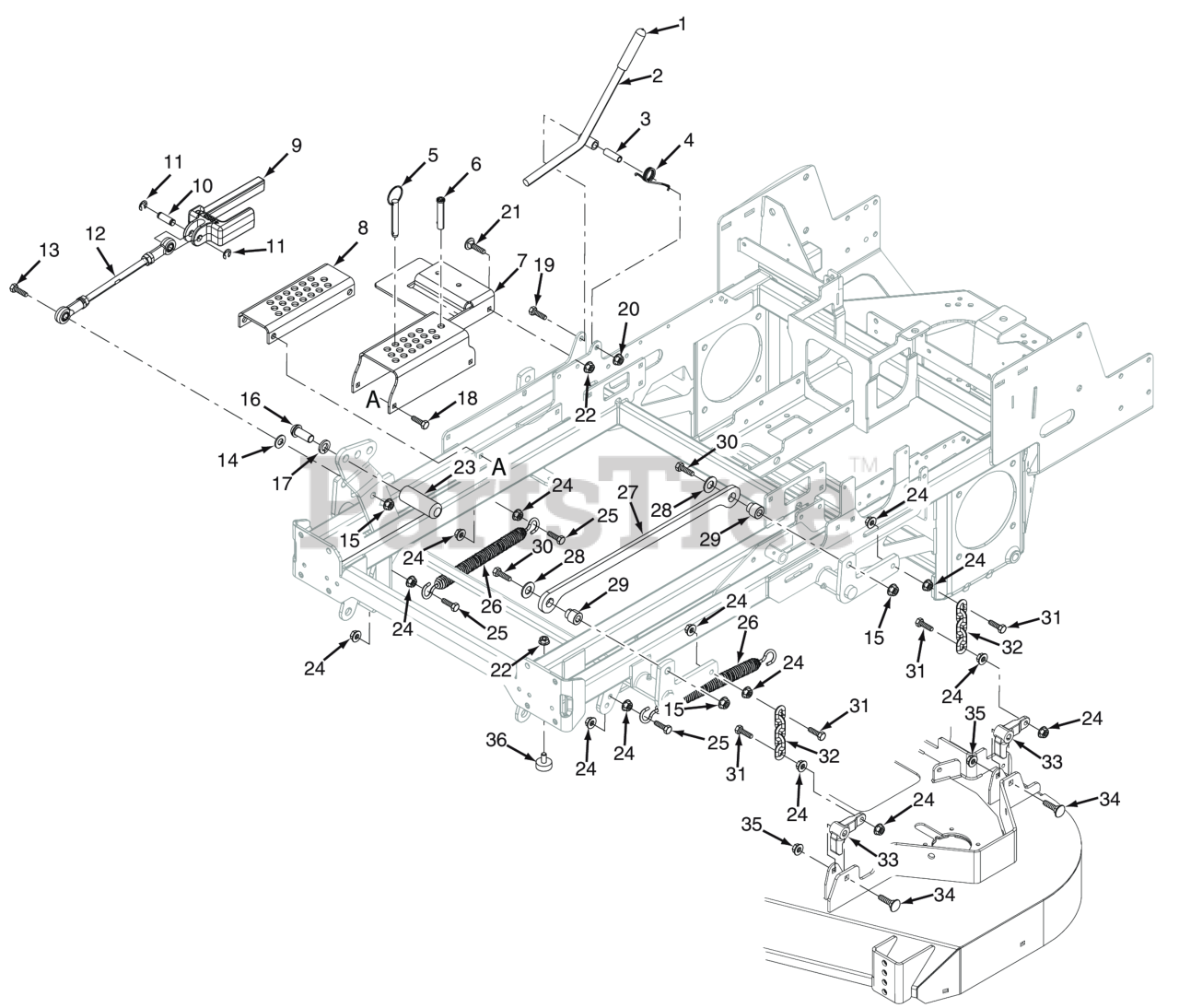

SCZII72V-37BV-EFI (06347) - Scag Cheetah II 72" Zero-Turn Mower, 37hp Vanguard (SN: P9800001 - P9899999) CUTTER DECK CONTROLS Parts Diagram

CUTTER DECK CONTROLS Parts Diagram
