Scag SCZII61V-38FX-EFI - Scag Cheetah II 61" Zero-Turn Mower, 38hp Kawasaki (SN: S8200000 - S8299999) (Rev 01) CUTTER DECKS Parts Lookup with Diagrams

1

Scag 463194

Belt Cover, LH (INCL 85)

$73.99

$

In Stock, only 1 left!

Scag 463195

Belt Cover, RH (INCL 85)

$73.99

$

Usually ships in 2-12 days

2

Scag 481625-01

Knob, w/stud 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

3

Scag 04020-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

4

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Grade 8 Black

$0.99

$

In Stock, Qty 20+

5

Scag 48926

Hub, Tapered 1-1/8" Bore

$30.99

$

In Stock, Qty 20+

6

Scag 483286

Pulley, Tapered Bore 6.33" Dia.

$37.99

$

In Stock, Qty 10

7

Scag 483157

Belt, Deck Drive R.H.

$57.99

$

In Stock, Qty 20+

8

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

9

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

10

Scag 424367

Quick Pin, 5/16" Dia.

$2.49

$

In Stock, only 2 left!

11

Scag 48181

IDLER PULLEY, "V" GROOVE

$26.99

$

In Stock, Qty 11

12

Scag 483741

Belt, Cutter Deck Drive - Cat

$81.99

$

In Stock, Qty 20+

13

Scag 483210

Pulley, Idler 5" Dia.

$55.99

$

In Stock, only 2 left!

14

Scag 486045

Pulley, 3-1/2" Dia.

$20.99

$

In Stock, Qty 20+

15

Scag 483287

Pulley, Double Groove 6.33" Dia.

$63.99

$

In Stock, only 1 left!

16

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$12.99

$

In Stock, Qty 20+

17

Scag 461946

ldler Arm Assembly, R.H. Drive

$69.99

$

In Stock, only 1 left!

18

Scag 43689

Pivot, Idler Short

$10.99

$

In Stock, Qty 20+

19

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

20

Scag 04001-27

Bolt, Hex Head 7/16-14 x 1"

$0.99

$

Usually ships in 2-12 days

21

Scag 04030-05

Lockwasher, 7/16â? Spring

$0.99

$

In Stock, Qty 5

22

Scag 43686

Boss, Spring Anchor - LH

$7.99

$

Usually ships in 2-12 days

23

Scag 462269

Idler Arm

$69.99

$

In Stock, only 2 left!

24

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$0.99

$

In Stock, Qty 9

25

Scag 483246

Spring, L.H. Deck Drive

$51.99

$

Usually ships in 2-12 days

26

Scag 48038

Wheel, Anti-ScalpRelief Fitting, Tapered Spindle

$28.99

$

In Stock, only 2 left!

27

Scag 451118

Roller Shaft (small frame)

$42.99

$

Usually ships in 2-12 days

29

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

30

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

31

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

32

Scag 462225

Pusharm Assembly, LH

$168.99

$

In Stock, only 1 left!

Scag 462226

Pusharm Assembly, RH

$168.99

$

In Stock, only 1 left!

33

Scag 451240

Shaft Weldment, Pusharm

$52.99

$

In Stock, Qty 20+

34

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

35

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

36

Scag 04110-04

U-Nut, 3/8-16

$5.99

$

In Stock, Qty 7

37

Scag 463243

Cutter Deck w/Decals

$2091.99

$

Usually ships in 2-12 days

38

Scag 483176

Pad, Deck Wear

$33.99

$

In Stock, Qty 20+

39

Scag 461663

Cutter Spindle Assembly

$257.99

$

In Stock, Qty 20+

40

Scag 04021-04

Nut, Center Lock, 5/16-18(32)

$0.99

$

In Stock, Qty 20+

41

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V)

$0.99

$

In Stock, Qty 20+

42

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

43

Scag 43589

Spindle Shaft, Tapered Brng

$58.99

$

In Stock, only 1 left!

44

Scag 481024

SEAL, 2.00 O.D. X 1.50 BORE

$4.99

$

In Stock, Qty 20+

45

Scag 481022

Tapered Bearing Set (Two Bearings W/Race)

$59.99

$

In Stock, Qty 15

46

Scag 48114-04

GREASE FITTING, STR. 1/4-28 SELF TAP.

$0.99

$

In Stock, Qty 20+

47

Scag 48677

RELIEF FITTING, TAPERED BEARING SPINDLE

$

Not available 

48

Scag 43644

Housing, Spindle

$58.99

$

In Stock, only 2 left!

49

Scag 43312

Spacer, Outside, Cutter Spindle

$19.99

$

In Stock, only 1 left!

50

Scag 43296

SLEEVE, CUTTER SPINDLE

$8.49

$

In Stock, only 2 left!

51

Scag 481025

Seal, 2.00" O.D. x 1.625" Bore

$4.99

$

In Stock, Qty 20+

52

Scag 43297

SPINDLE BUSHING, BOTTOM

$9.99

$

In Stock, only 2 left!

53

Scag 481035

Nut , Spec ial 1 -1/ 1 6 - 1 8

$7.99

$

In Stock, only 3 left!

54

Scag 04001-41

BOLT, HEX HEAD, 5/8-11 X 9-1/2 GR.5

$12.99

$

In Stock, Qty 20+

55

Scag 04043-06

Flatwasher, 5/8-.688 x 1-3/4 x .134 HD

$1.99

$

In Stock, Qty 20+

56

Scag 482881

Cutter Blade, 21" (35BV & 37BV-EFI)

$28.99

$

In Stock, only 4 left!

57

Scag 43590

Spacer, Spindle Bottom

$17.99

$

In Stock, Qty 20+

58

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4" Grade 8

$0.99

$

In Stock, Qty 20+

59

Scag 04063-08

Key, 1/4 x 1/4 x 2.0"

$1.49

$

In Stock, Qty 20+

60

Scag 45944

Shaft Weldment, Guide Roller

$21.99

$

In Stock, Qty 20+

61

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

62

Scag 424841

Baffle Custom-Cut, 61V (7-Position)

$119.99

$

Usually ships in 2-12 days

63

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

64

Scag 424209

Turbo Baffle, Bolt On

$70.99

$

In Stock, only 1 left!

Scag 425625

Baffle, Turbo - 61V (CA)

Note: California Models Only (not shown)

$60.99

$

Usually ships in 2-12 days

65

Scag 481632

Bolt, Carriage 3/8-16 x 4"

$21.99

$

In Stock, Qty 20+

66

Scag 48100-15

Bushing, .376" I.D. Oilite

$4.99

$

In Stock, Qty 20+

67

Scag 422478

Bracket, Anti-Scalp Wheel

$28.99

$

In Stock, Qty 20+

68

Scag 04003-26

Bolt, Hex Head 3/8-16 x 3-1/2"

$1.99

$

In Stock, Qty 20+

69

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

70

Scag 04017-27

Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd

$1.49

$

In Stock, Qty 20+

71

Scag 04021-11

HEX LOCKNUT, ELASTIC STOP, 7/16-14

$0.99

$

In Stock, Qty 10

72

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

73

Scag 485528

Lever, Deck Level

$22.99

$

Usually ships in 2-12 days

74

Scag 04107-05

Bolt, Hex Head 3/8-16 x 2-1/2" Soecial Lock

$4.99

$

Usually ships in 2-12 days

75

Scag 04003-42

Bolt, Carriage 7/16-14 x 2-1/4"

$2.49

$

In Stock, only 3 left!

76

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$0.99

$

In Stock, Qty 9

77

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

78

Scag 483703

Spring, RH Deck Drive

$32.99

$

In Stock, Qty 20+

79

Scag 43063

SPACER, IDLER

$7.99

$

In Stock, only 2 left!

80

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

81

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

82

Scag 461846

Discharge Chute Advantage - Large

$66.99

$

In Stock, only 1 left!

Scag 462477

CA Discharge Chute Assembly

Note: California Models Only (not shown)

$140.99

$

Usually ships in 2-12 days

83

Scag 04001-154

Bolt, 5/16-18 x 4-3/4" Hex Head

$2.99

$

In Stock, Qty 20+

84

Scag 483378

Spring, Discharge Chute

$7.49

$

In Stock, only 4 left!

85

Scag 484368

Cap, Spindle (not shown) 61" Only

$4.99

$

In Stock, Qty 20+

86

Scag 04001-128

DISCONTINUED

$2.99

$

In Stock, only 3 left!

87

Scag 04021-23

Nut, Center Lock 5/8-11

$1.49

$

In Stock, Qty 5

88

Scag 04021-22

Lock Nut, 5/16-18 Elastic Stop Grade 8

$0.99

$

In Stock, Qty 20+

89

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

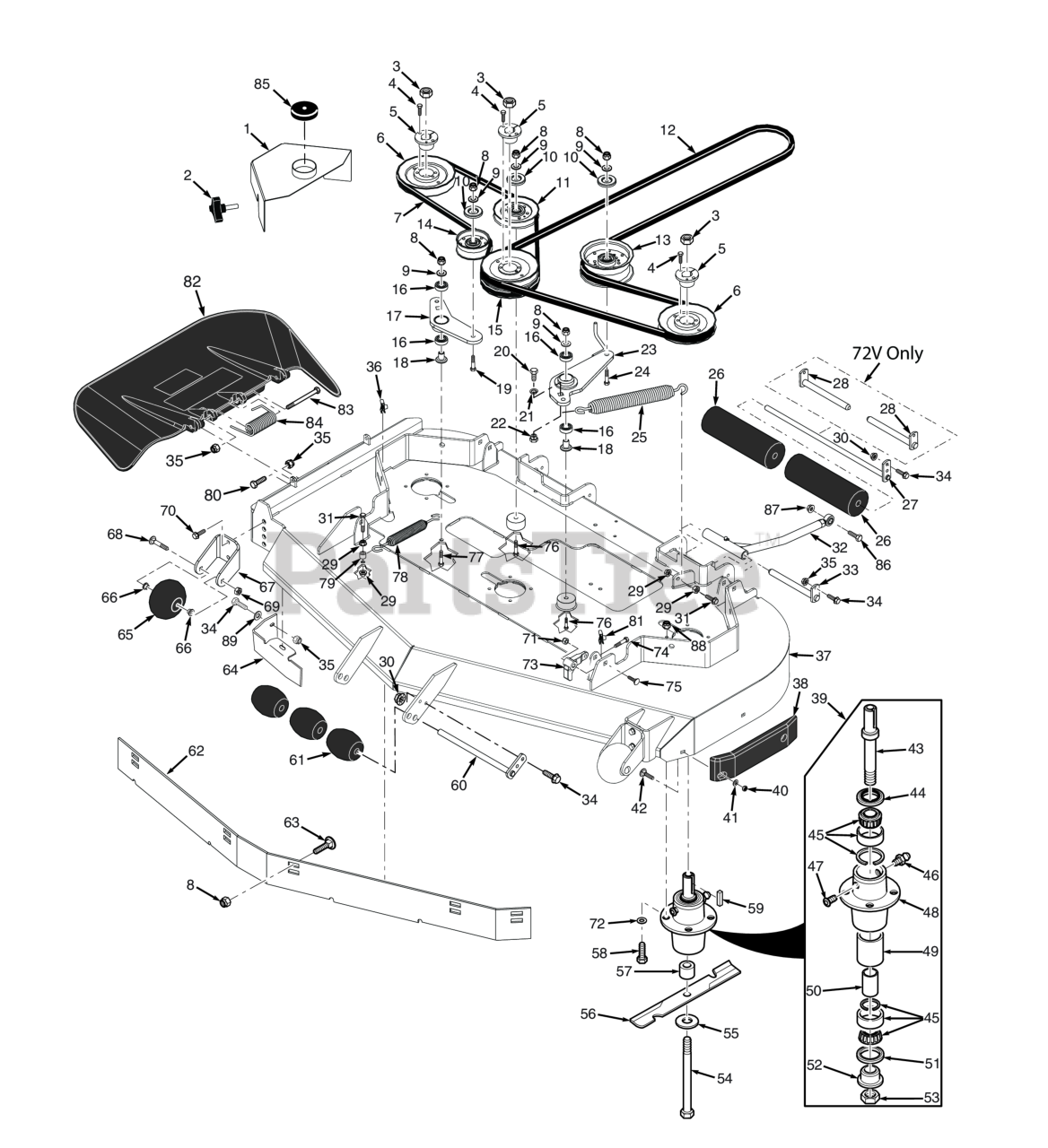

SCZII61V-38FX-EFI - Scag Cheetah II 61" Zero-Turn Mower, 38hp Kawasaki (SN: S8200000 - S8299999) (Rev 01) CUTTER DECKS Parts Diagram

CUTTER DECKS Parts Diagram
