SCZII61V-37BV-EFI - Scag Cheetah II 61" Zero-Turn Mower, 37hp Vanguard (SN: S8100000 - S8199999) SCZII ROLL-OVER PROTECTION SYSTEM Parts Diagram

Cheetah II 61" Zero-Turn Mower, 37hp Vanguard

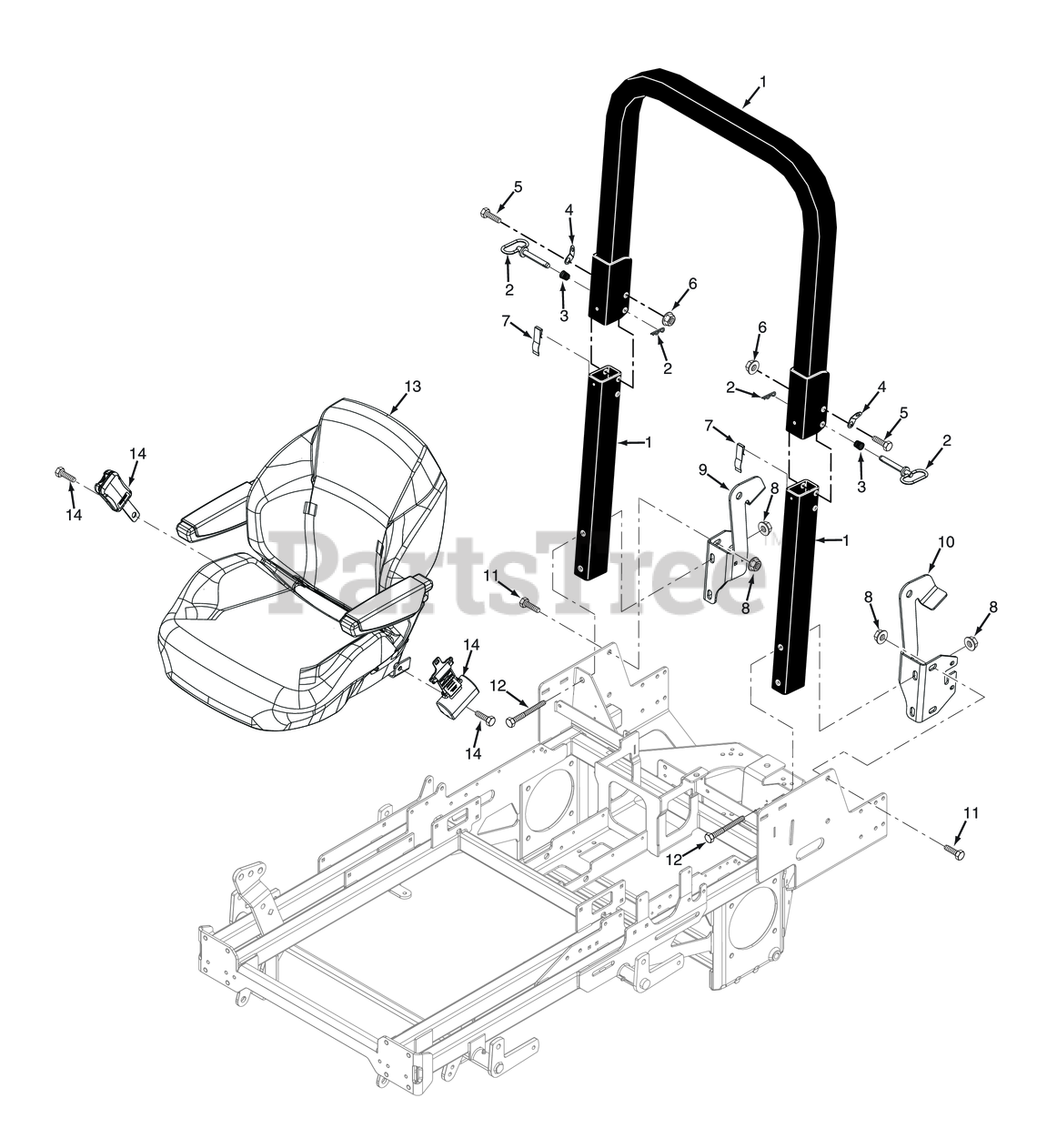

SCZII ROLL-OVER PROTECTION SYSTEM Parts Diagram

  • Title

1

Scag 462246

ROPS, Foldable SCZ

$

$

Not available

2

Scag 484168

Pin Assembly, ROPS Hinge

$27.99

$

In Stock, only 4 left!

0

3

Scag 484170

Spring, ROPS

$1.49

$

Usually ships in 2-12 days

0

4

Scag 484169

Clip, ROPS

$3.49

$

Usually ships in 2-12 days

0

5

Scag 04001-90

Bolt, Hex Head, 1/2-13 x 3-1/4"

$2.99

$

Usually ships in 2-12 days

0

6

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

7

Scag 484167

Spring, ROPS Anti-Rattle

$4.49

$

Usually ships in 2-12 days

0

8

Scag 04117-04

Nut, Elastic Stop 1/2-13, (STT-52 & STTII-52)

$1.49

$

In Stock, Qty 8

0

9

Scag 427178

ROPS Mount, RH, 29CV-EFI
(Superseded to 428575)

$

$

Not available

10

Scag 427177

ROPS Mount, LH, 29CV-EFI

$

$

Not available

11

Scag 04001-70

Bolt, Hex Head 1/2-13 x 1-1/4"

$1.49

$

In Stock, Qty 5

0

12

Scag 04001-194

Bolt, Hex Head 1/2-13 x 4-1/4"

$4.99

$

In Stock, Qty 8

0

13

Scag 486507

Seat Assembly (INCL 14)

$1097.99

$

Usually ships in 2-12 days

0

14

Scag 486620

Seat Belt Kit, Retractable - SCZII

$135.99

$

Usually ships in 2-12 days

0
