SCZII61V-37BV-EFI - Scag Cheetah II 61" Zero-Turn Mower, 37hp Vanguard (SN: P6000001 - P6099999) SCZ ENGINE & ATTACHING PARTS Parts Diagram

Cheetah II 61" Zero-Turn Mower, 37hp Vanguard

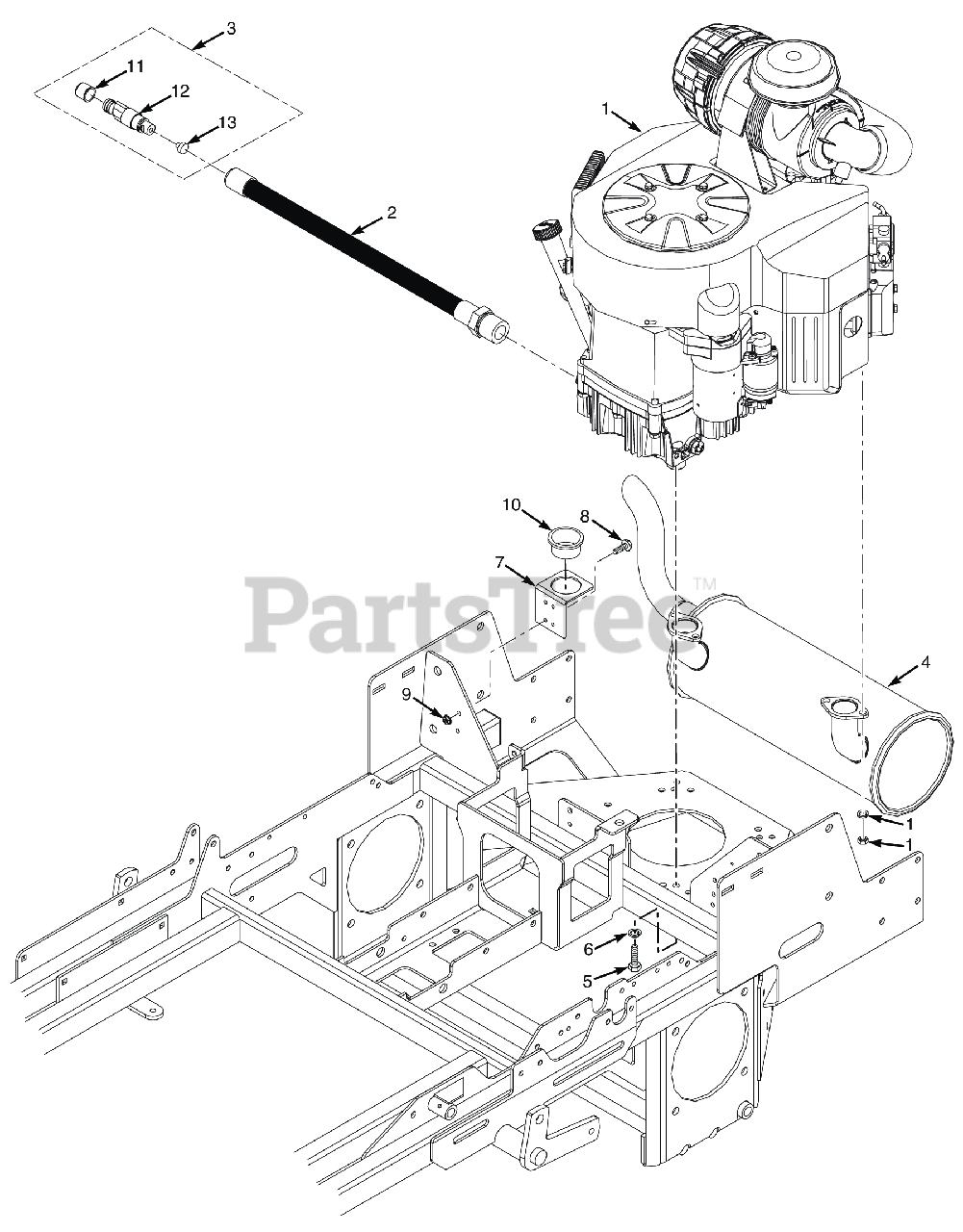

SCZ ENGINE & ATTACHING PARTS Parts Diagram

  • Title
1

Scag 485032

Engine, Kawasaki 27FX (FX850)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

1

Scag 485967

Engine, Kohler 31CV-EFI (ECV860)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

1

Scag 485033

Engine, Kawasaki 31FX (FX921)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

1

Scag 486107

Engine, Briggs & Stratton 37 BV-EFI (61E8770002J1)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

2

Scag 484581

Hose Assembly, Engine Oil Drain - Kawasaki FS/FX

Note: (incl. # 3)

$59.99

$

In Stock, only 1 left!

0

2

Scag 484706

Hose, Oil Drain - Kohler CV & CV-EFI

Note: (incl. # 3)

$40.99

$

Usually ships in 2-12 days

0

2

Scag 484599

Hose, OIl Drain, Briggs & Stratton

Note: (incl. # 3)

$60.99

$

Usually ships in 2-12 days

0

3

Scag 484593

Valve Assembly, Oil Drain

$10.99

$

In Stock, only 3 left!

0

4

Scag 484155

Muffler, Kawasaki FX850 - SCZ

$204.99

$

Usually ships in 2-12 days

0

4

Scag 485316

Muffler, Kohler (ECV860)- SCZ

$223.99

$

Usually ships in 2-12 days

0

4

Scag 484156

Muffler, Kawasaki FX921 - SCZ

$203.99

$

Usually ships in 2-12 days

0

4

Scag 486108

Muffler, Briggs & Stratton - 37 BV-EFI

$309.99

$

Usually ships in 2-12 days

0

5

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 12

0

6

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 8

0

7

Scag 425975

Bracket, Oil Drain Hose

$

$

Not available

8

Scag 04010-30

Screw, #8-32 x 1/2"
(Superseded to 04010-32)

$0.99

$

In Stock, Qty 9

0

9

Scag 04021-17

Nut, Elastic Stop #8-32

$0.99

$

In Stock, Qty 5

0

10

Scag 484617

Bushing, Thick Panel Snap

$2.99

$

Usually ships in 2-12 days

0

11

Scag 484585

O-Ring

$0.99

$

In Stock, only 4 left!

0

12

Scag 48603-12

O-Ring

$0.99

$

In Stock, Qty 8

0

13

$0.99

$

Usually ships in 2-12 days

0
