SCZII61V-37BV-EFI - Scag Cheetah II 61" Zero-Turn Mower, 37hp Vanguard (SN: P6000001 - P6099999) SCZ BRAKE COMPONENTS Parts Diagram

Cheetah II 61" Zero-Turn Mower, 37hp Vanguard

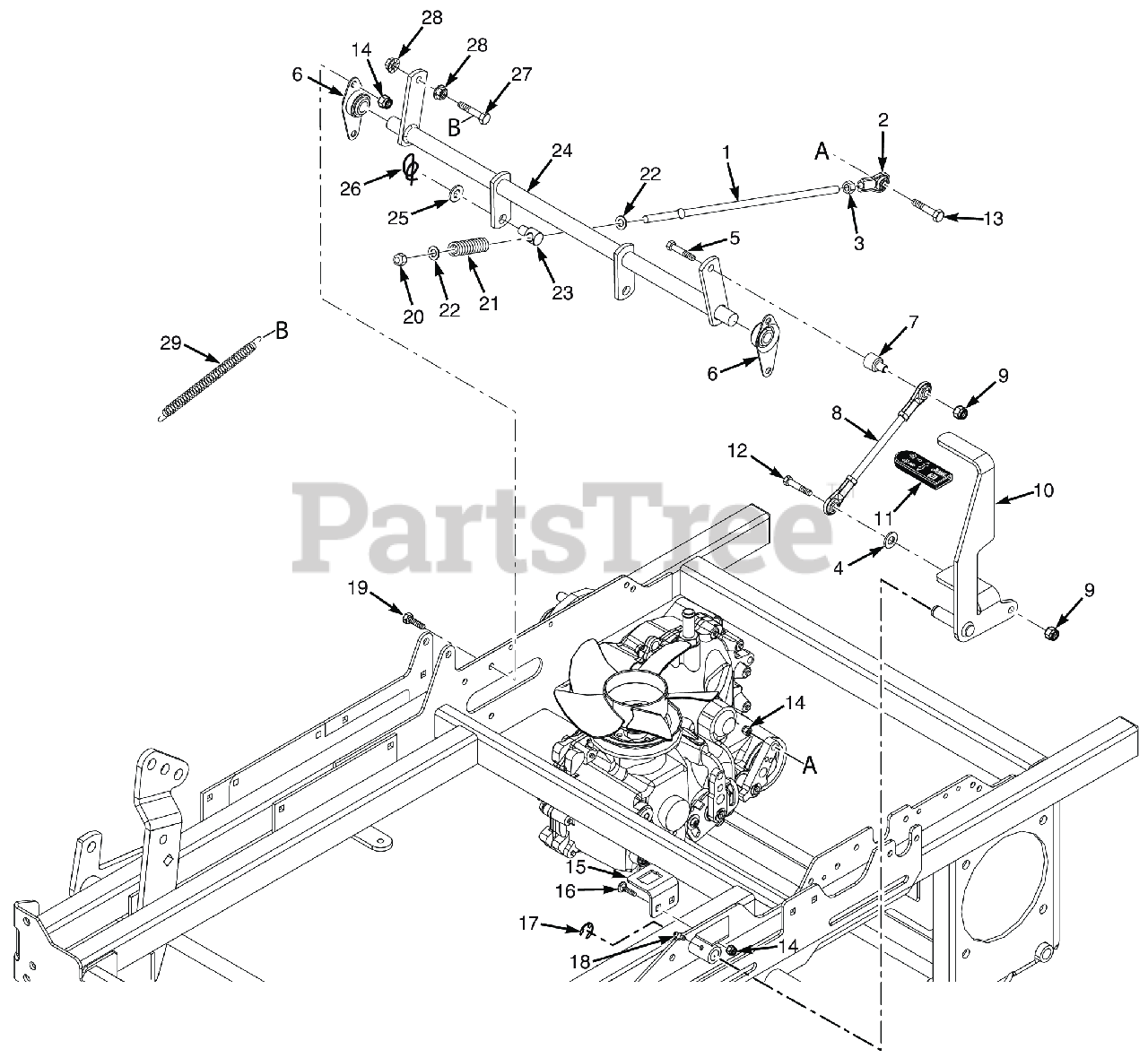

SCZ BRAKE COMPONENTS Parts Diagram

  • Title

1

Scag 485319

Rod, Brake Linkage

$17.99

$

Usually ships in 2-12 days

0

2

Scag 484177

Rod End, 3/8-24

$21.99

$

In Stock, only 1 left!

0

3

Scag 04020-14

HEX NUT, 3/8-24 R.H. THREAD

$0.99

$

In Stock, only 3 left!

0

4

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

5

Scag 04001-22

Capscrew, Hex Head 3/8-16 x 2.75"

$1.49

$

In Stock, Qty 20+

0

6

Scag 484149

Bearing, Self Align

$12.99

$

Usually ships in 2-12 days

0

7

Scag 43503

Pivot, Idler - Short

$26.99

$

In Stock, Qty 20+

0

8

Scag 485757

LINKAGE ASSY, UPPER BRAKE

$44.99

$

Usually ships in 2-12 days

0

8

Scag 483339

Rod End, 3/8-24 UNF RH

$19.99

$

Usually ships in 2-12 days

0

8

Scag 04020-25

Nut, 3/8-24 UNF R.H. Thread

$0.99

$

In Stock, only 2 left!

0

8

Scag 483340

Rod End, 3/8-24 UNF LH

$19.99

$

Usually ships in 2-12 days

0

8

Scag 04020-26

Nut, 3/8-24 UNF-2B LH Thread

$1.99

$

In Stock, only 4 left!

0

9

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 462256

Brake Lever w/Grip

$75.99

$

Usually ships in 2-12 days

0

11

Scag 481548

Grip, Parking Brake

$6.49

$

In Stock, Qty 9

0

12

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

13

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

14

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 17

0

15

Scag 425388

Bracket, Brake Switch

$12.99

$

Usually ships in 2-12 days

0

16

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

17

Scag 04050-01

RETAINING RING, 5/8" EXTERNAL "E"

$0.99

$

In Stock, Qty 20+

0

18

Scag 48114-04

GREASE FITTING, STR. 1/4-28 SELF TAP.

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

20

Scag 04021-18

Nut, Elastic Stop 3/8-16, grade 8 black

$1.49

$

In Stock, Qty 9

0

21

Scag 484182

Spring

$7.99

$

In Stock, only 1 left!

0

22

Scag 04041-45

FW, .375-.376/.380 X .734 X .063

$5.49

$

Usually ships in 2-12 days

0

23

Scag 485317

BUSHING, PIVOT SLIDE

$13.99

$

Usually ships in 2-12 days

0

24

Scag 452221

Weldment, Brake Linkage

$119.99

$

Usually ships in 2-12 days

0

25

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

26

Scag 04069-02

Pin, Rue Cotter 1/2" Dia.

$4.99

$

In Stock, only 1 left!

0

27

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

28

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

29

Scag 484335

Spring

$18.99

$

Usually ships in 2-12 days

0
