SCZII61V-37BV-EFI (06357) - Scag Cheetah II 61" Zero-Turn Mower, 37hp Vanguard (SN: P9500001 - P9599999) SCZII DRIVE SYSTEM COMPONENTS Parts Diagram

Cheetah II 61" Zero-Turn Mower, 37hp Vanguard

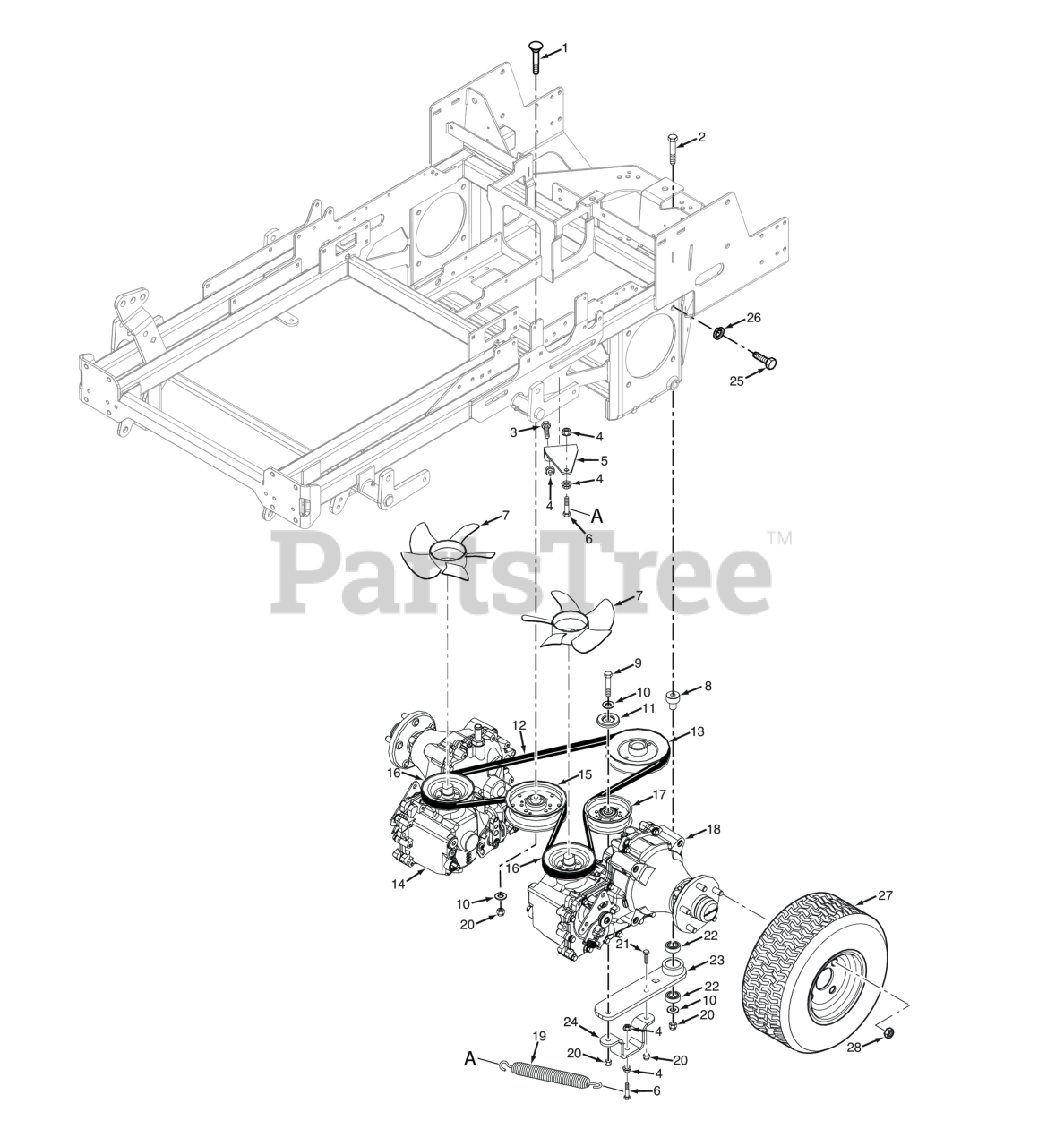

SCZII DRIVE SYSTEM COMPONENTS Parts Diagram

  • Title

1

Scag 04003-21

Carriage Bolt, 3/8-16 x 2-1/2"

$2.49

$

Usually ships in 2-12 days

0

2

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$0.99

$

In Stock, Qty 9

0

3

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 6

0

4

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

5

Scag 425385

Mounting Bracket, Spring - Idler Arm

$13.99

$

Usually ships in 2-12 days

0

6

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

7

Scag HG71906

Kit, Fan / Pulley

$218.99

$

Usually ships in 2-12 days

0

8

Scag 43504

Pivot, Idler Long - 52"

$28.99

$

In Stock, only 1 left!

0

9

Scag 04001-22

Capscrew, Hex Head 3/8-16 x 2.75"

$1.49

$

In Stock, Qty 10

0

10

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

11

Scag 424367

Quick Pin, 5/16" Dia.

$2.49

$

In Stock, only 2 left!

0

12

Scag 483165

Belt, Pump Drive STT

$68.99

$

In Stock, Qty 20+

0

13

Scag 484098

Pulley, 5.80" Dia. - 1.125 Bore

$87.99

$

In Stock, only 1 left!

0

14

Scag 483798

Transaxle, RH

$1907.99

$

Usually ships in 2-12 days

0

15

Scag 483215

Idler Pulley, Belt Clutch

$60.99

$

In Stock, Qty 20+

0

16

Scag HG71906

Kit, Fan / Pulley

$218.99

$

Usually ships in 2-12 days

0

17

Scag 484128

Pulley, 4" Dia. Idler

$22.99

$

In Stock, only 1 left!

0

18

Scag 483797

Transaxle, LH

$1907.99

$

Usually ships in 2-12 days

0

19

Scag 484202

Spring, Pump Drive

$101.99

$

In Stock, Qty 5

0

20

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

21

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 12

0

22

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$12.99

$

In Stock, Qty 20+

0

23

Scag 462259

Idler Arm Assembly

$77.99

$

Usually ships in 2-12 days

0

24

Scag 425386

Mounting Bracket, Idler

$18.99

$

In Stock, only 1 left!

0

25

Scag 04001-70

Bolt, Hex Head 1/2-13 x 1-1/4"

$1.49

$

In Stock, Qty 5

0

26

Scag 04030-06

Lockwasher, 1/2" Spring

$0.99

$

In Stock, only 2 left!

0

27

Scag 484024

Wheel Assembly, 24 x 12-12 4-Ply (5-Hole)

$477.99

$

Usually ships in 2-12 days

0

27

Scag 484023

Rim w/Valve Stem

$209.99

$

Usually ships in 2-12 days

0

27

Scag 481852

Tire, 24 x 12-12 Turf Master

$290.99

$

Usually ships in 2-12 days

0

28

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.49

$

In Stock, Qty 20+

0
