SCZ72V-921FX - Scag Cheetah 72" Zero-Turn Mower, Kawasaki 921FX (SN: H8000001 - H8099999) SCZ Hydraulic System Parts Diagram

Cheetah 72" Zero-Turn Mower, Kawasaki 921FX

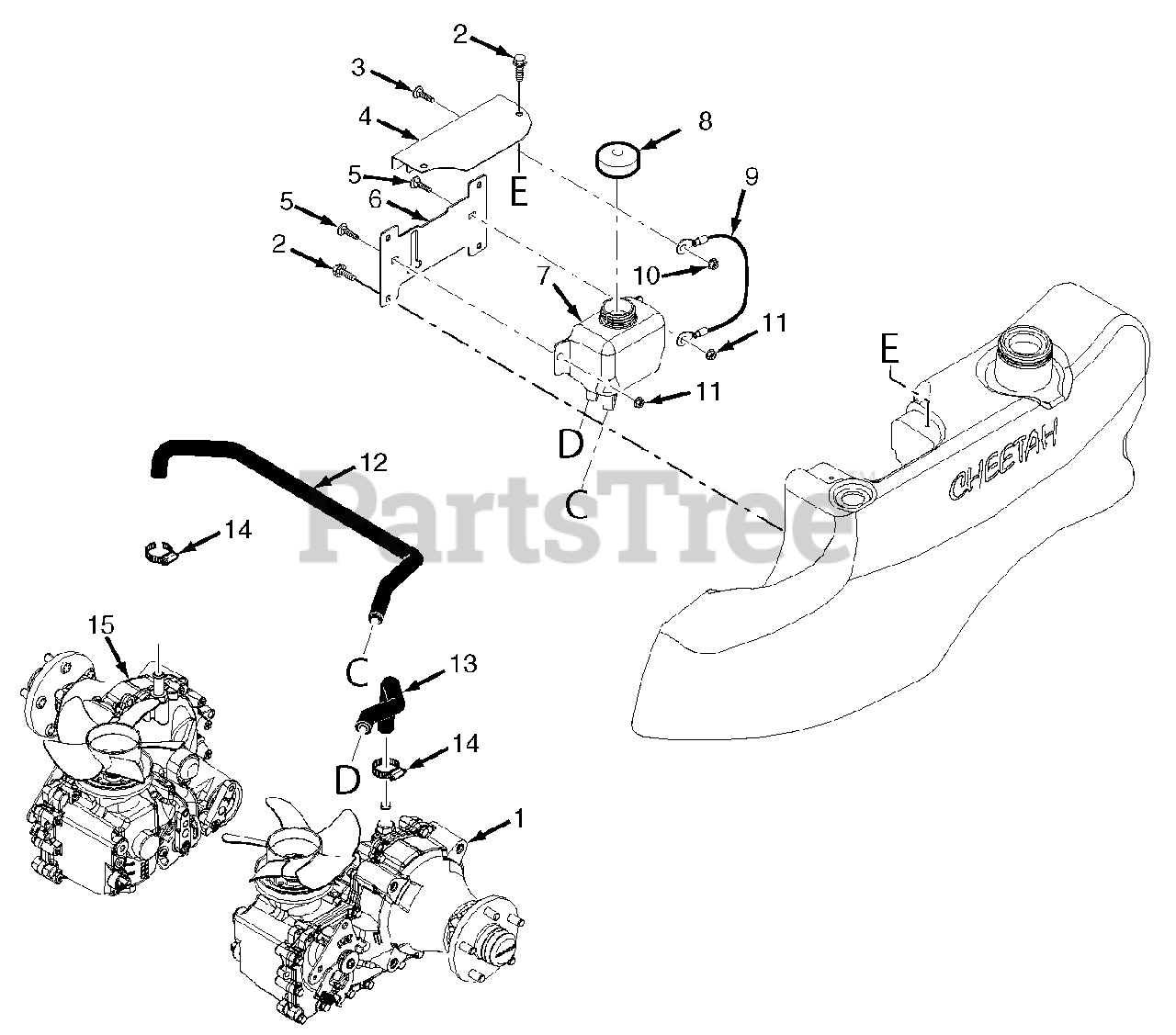

SCZ Hydraulic System Parts Diagram

  • Title

1

Scag 483797

Transaxle, LH

$1907.99

$

Usually ships in 2-12 days

0

2

Scag 04017-04

Bolt, Hex Head 1/4-20 X 1/2" Serrated Flange

$0.99

$

In Stock, Qty 20+

0

3

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

4

Scag 425390

Cover, Oil Reservoir

$19.99

$

Usually ships in 2-12 days

0

5

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

6

Scag 425421

Plate, Hydro Tank Mount

$21.99

$

Usually ships in 2-12 days

0

7

Scag 462251

Hydraulic Tank Assembly
(Superseded to 462907)

Note: (incl. # 26)

$52.99

$

Usually ships in 2-12 days

0

8

Scag 484138

Cap, Hydraulic Tank
(Superseded to 462907)

$52.99

$

Usually ships in 2-12 days

0

9

Scag 484196

Lanyard, Hydraulic Tank

$14.99

$

Usually ships in 2-12 days

0

10

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

11

Scag 04117-01

Nut, FLG HH Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

12

Scag 484161

Hose, RH Transaxle

$94.99

$

Usually ships in 2-12 days

0

13

Scag 484160

Hose, LH Transaxle

$37.99

$

Usually ships in 2-12 days

0

14

Scag 48136-16

Clamp, 1" Max Dia.

$1.99

$

Usually ships in 2-12 days

0

15

Scag 483798

Transaxle, RH

$1907.99

$

Usually ships in 2-12 days

0
